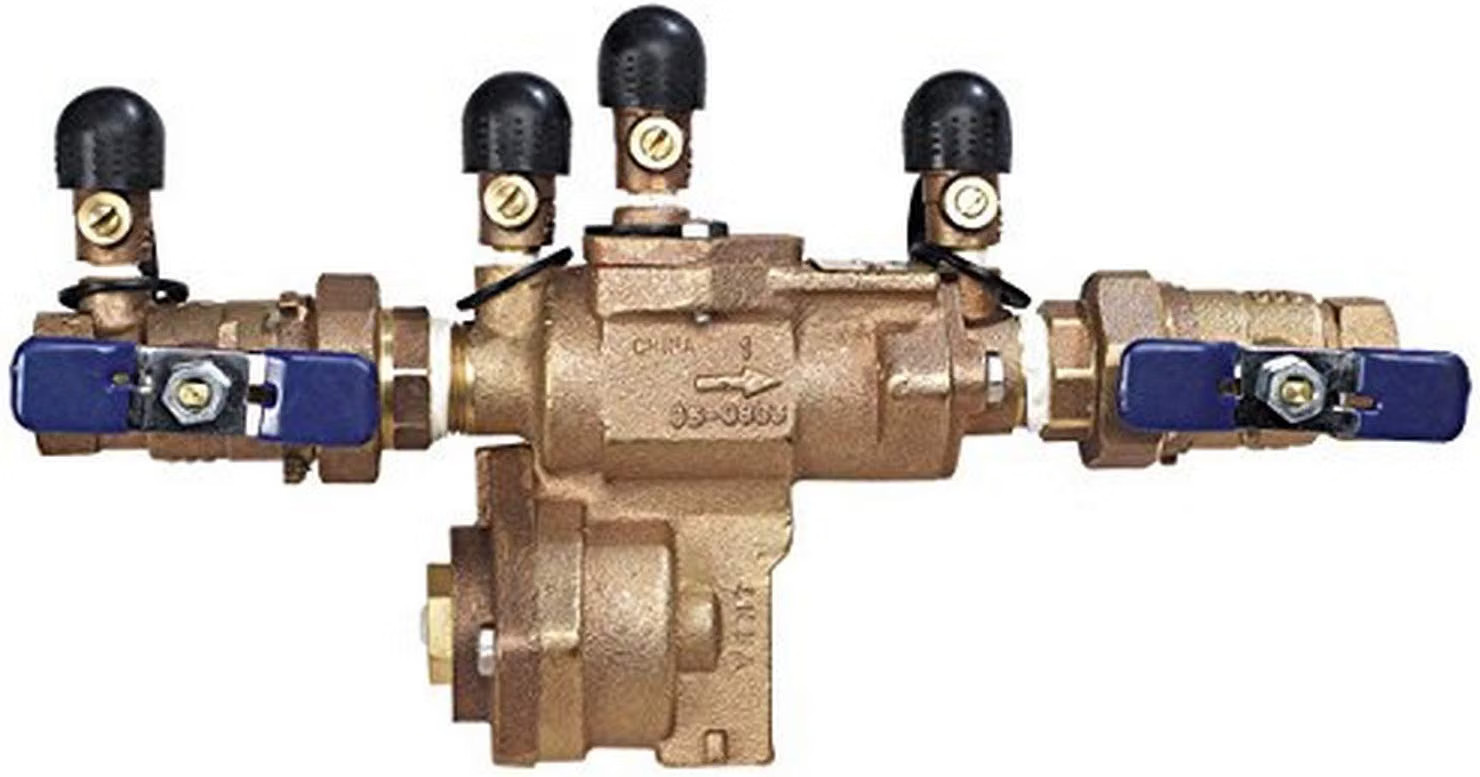

/4 IN Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Union Ball Valves, Small Diameter, Backflow Flood Sensor
This item does not comply with the 2014 Lead Free Act.
Lead Free Model Available 0122970
This 3/4 inch reduced pressure zone backflow preventer assembly prevents the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and it is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a bronze body, threaded quarter turn ball valves with union connections, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.
- Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- Alert features available with add-on sensor connection kit
- Bronze body with top entry access
- Union end connection
- Quarter turn shutoff valves
SpecificationsBackflow Preventer TypeReduced Pressure Zone AssemblyBody FinishRough BronzeBody MaterialBronzeBody PatternStraightBrandFEBCOBypassNoBypass SizeDoes Not Apply To ProductCap And TetherYesDisc MaterialSiliconeEAN643925581645Elbow FittingNoHazard Protection LevelHealth HazardHot And Harsh WaterNoHydrant ConnectionNoInlet Connection Size3/4 INInlet Connection Size-Metric20 MMInlet Connection TypeFemale ThreadedInlet Shutoff Valve TypeQuarter Turn Ball ValveInlet Thread TypeNPTLead FreeNOMaximum Temperature-Fahrenheit140Maximum Working Pressure-BAR12.00Maximum Working Pressure-PSI175Meter TypeNo MeterMinimum Temperature - Celsius0.00Minimum Temperature-Fahrenheit32Outlet Connection Size3/4 INOutlet Connection TypeFemale ThreadedOutlet Shutoff Valve TypeQuarter Turn Ball ValveOutlet Thread TypeNPTPart NumberF2812Polymer CoatingNoPressure OperationContinuousProtection TypeBackpressure and BacksiphonageSeat MaterialPlasticSeries860 SmallStrainer
