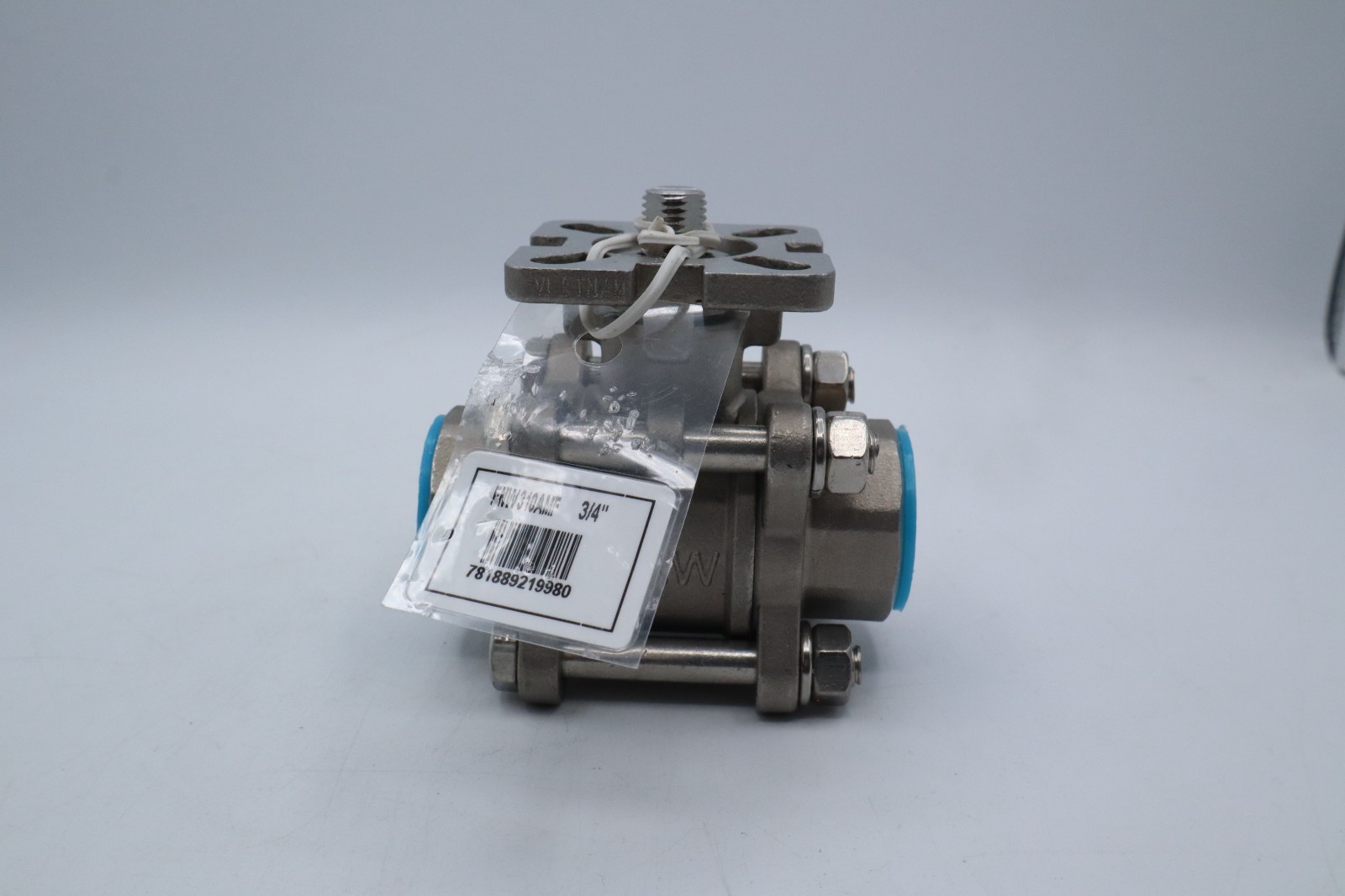

Figure 310AM 3/4 in. Stainless Steel Full Port FPT 1000# Ball Valve:
$150.00
Figure 310AM 3/4 in. Stainless Steel Full Port FPT 1000# Ball ValveProduct Details
- 3/4 in. stainless steel ball valve
- End Connections: threaded
- Valve Length: 3.15 in.
- Valve Pressure Class: 1000#
- Recommended Application: Steam, water
- Saturated steam 150 psi
- Live loaded packing
- Investment cast body
- Vented ball
- Vacuum rated to 26.967 in hgSpecificationsANSI: ANSI Z1157-2014e1ASME: ASME B1.20.1ASTM: ASTM A-351Clean Bagged: NoCollection: Figure 310AMEnd Connection 1: FPTEnd Connection 2: FPTEnd Connections: FPTFM Approved: NoIAPMO Listed: YesISO: ISO 5211Length: 3-3/20 inMSS: MSS SP-110Material: Stainless SteelMaterial Type: CF8MNSF Certified: NoPressure - High: 1000Pressure - Maximum: 1000 psiPressure Class: 1000#Proposition 65: WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.govRecommended Valve Application: Steam, Potable WaterUL Listed: NoUPC: 781889219980Valve Body Material: Stainless SteelValve Body Style: 3 pieceValve Port Opening: Full PortValve Seat Material: RTFEValve Size: 3/4 inValve Stem: Blowout-proofValve Type: Ball Valve
