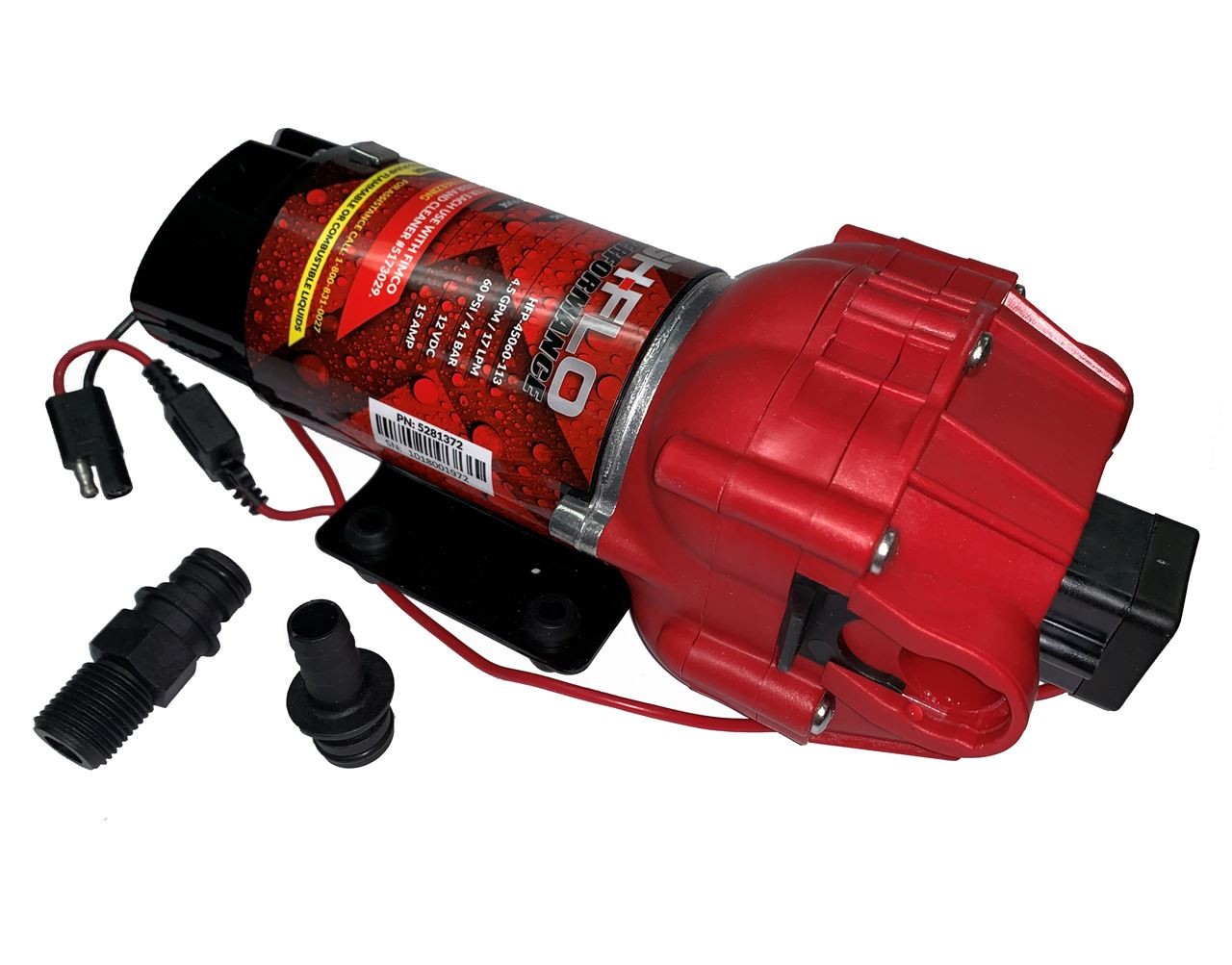

Fimco HFP-45060-113 (5281372, 5151088) HIGH-FLO High Performance 4.5 GPM 60 PSI 12 Volt Diaphragm Pump. Replacement pump for spot sprayers, liquid fertilizer units, recreational activities, wash down or liquid transfer. High-Flo has designed a new level of demand pump. Engineered to strict tolerances and elevated standards which deliver the peak of efficiency, the new High Performance line of pumps from Fimco High-Flo represent the latest in pump technology. Replaces & Upgrades Fimco Pump #5275088
Features:
• Increased Flow Rates
• Increased Motor Life
• Optimized Chamber Flow
• Improved Check Valves
• Chemical resistant elastomers
• Fan Cooled Motor
• Self priming – Up to 14‘
• Runs dry without damage
• 100% Factory tested
• Roundup® ready
Specifications:
• Automatic demand diaphragm pump
• 12 Volt DC power
• 4.5 GPM max. flow
• 60 PSI pressure switch
• Viton Valves
• Santoprene Diaphragm
• In-Line 15 AMP fuse protection – 14 AMP max draw
• Quick attach port connection with 1/2” MNPT & 1/2” Hose Barb fittings
• Fimco Box #: 5151088
• Fimco Model #: HFP-45060-113
• Fimco Pump #: 5281372
• Replaces Fimco #'s 5277982, 5275088 , 5275704, 5275498, 5275017
• 2 Year consumer limited warranty
• 90 Day commercial limited warranty
• Do not use for bleach or petroleum products
• Weight: 5.50 lbs
Fimco 5281372/5151088 Pump Breakdown
