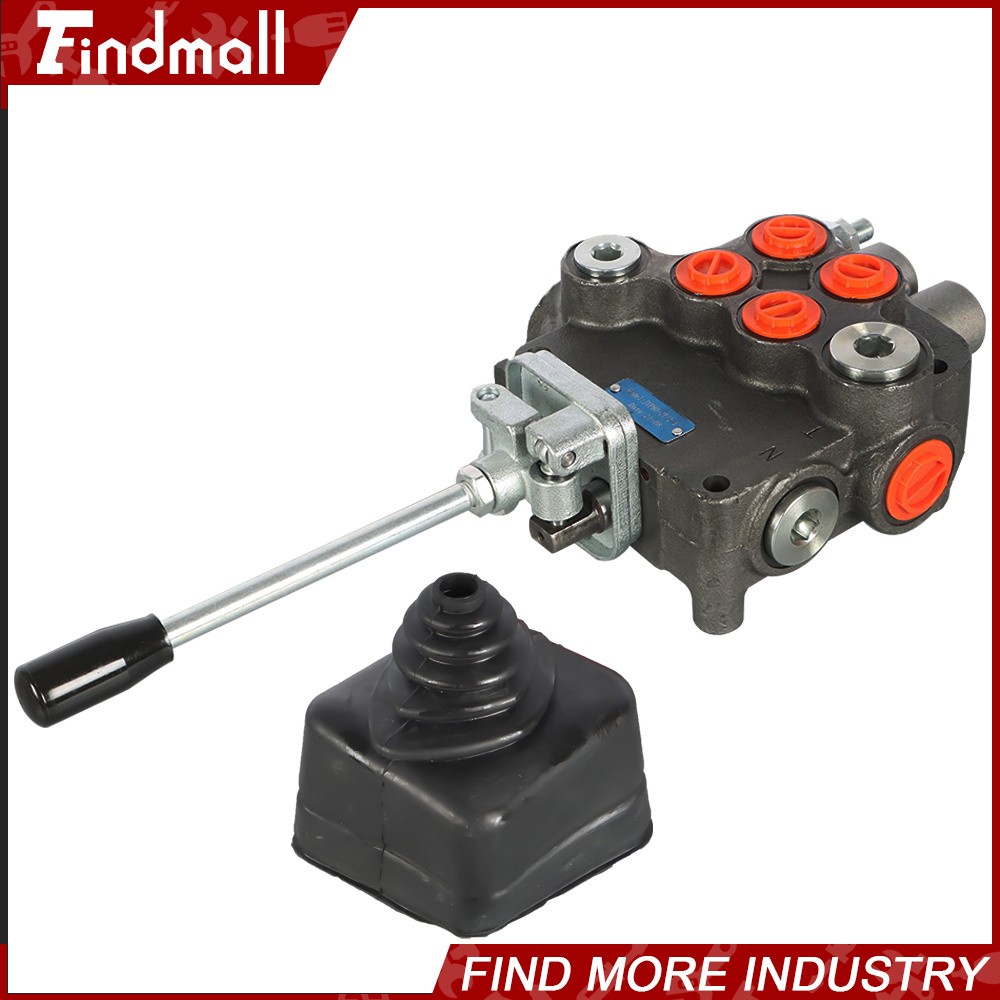

Description:This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.2 Spool valve with compact design allows for installations in tight areasAll spools are standard double acting with spring return to neutral position which are ideal for double acting cylindersUsed for open center systems (Pump to Tank Flow)Anti-drop load checks on each spoolPrecision ground and hard chrome-plated spools assure a long lifeHigh-tensile strength cast iron monoblock constructionSAE O-Ring ports ensure solid seal and prevent blockages Findmall 2Spool 21GPM Hydraulic Directional Control Valve For Tractor Loader NEW
Description:
This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
2 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow)
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of Closed Center or Power Beyond (conversion plug required)
Vertical or horizontal handle mount
Adjustable Relief Valve Range: 1500 to 3625 PSI
Used as motor or single-acting spool possible (#10 SAE port plug Acting: Hydraulic control valve for operating double acting cylinders.
Durable Quality: This hydraulic directional control valve comes with 2 spool, with cast iron construction for long-time use.
Spring Return : All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
High-Efficiency: The relief valve range is up to 3625 PSI and the maximum flow is up to 21 GPM.
Wide Application: Fit for small tractors, tractors loaders, log splitters, and Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 21 GPM (80 l/min)
A & B Work Ports: #10 SAE O-Ring (7/8”-14) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #12 SAE O-Ring (1-1/16”) Thread
3 – 5/16” Mounting Holes
Port Sizes: PT: 7/8" NPT, AB: 3/4" NPT, Port C: 7/8" NPT
Common Uses:
Operate hydraulic cylinders (Double-Acting or Single-Acting)
Operate hydraulic motors ("D" Spool Required)
Install rear remotes on a tractor
Package Product List:
1×2 Spool 21GPM Hydraulic Directional Control Valve
Item SpecificsCountry of Origin United StatesBrand findmallMPN 387972Type Hydraulic controllerValve Operation ManualMaximum Flow Rate 21 gpmSpool Count 2-SpoolMax Operating Pressure P = 3625 PSI, T = 725 PSI, A & B = 4350 PSIFlow Rating 21 GPM (80 l/min)A & B Work Ports #10 SAE O-Ring (7/8"-14) ThreadInlet Por #10 SAE O-Ring (7/8"-14) ThreadOutlet Port #12 SAE O-Ring (1-1/16") ThreadWarranty 1 YearMaterial cast ironSpecification NO
