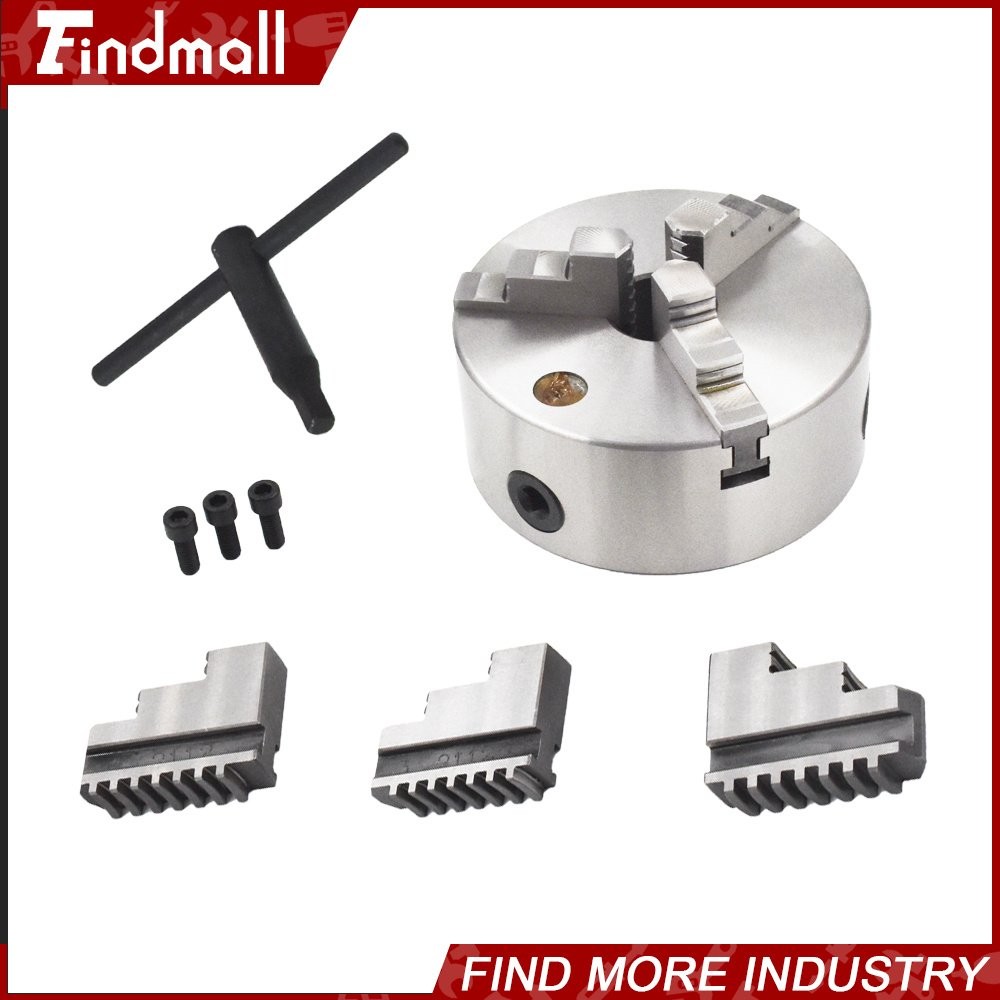

SpecificationsMaterial: Hardened SteelModel: K11-160Jaw: 3 JawHigh Precision: ≤0.002" / 0.05 mmColor: SilverLathe Chuck: Findmall K11-160 Lathe Chuck 6",Metal Lathe Chuck Self-centering 3 Jaw Chuck
Specifications
Material: Hardened Steel
Model: K11-160
Jaw: 3 Jaw
High Precision: ≤0.002" / 0.05 mm
Color: Silver
Lathe Chuck:
Diameter of the chuck: φ160 mm
Center hole: φ45 mm
Distribution of screw holes: φ142 mm (3×M8)
Thickness of the chuck: 65 mm
Outer jaw clamping range: 55–145 mm
Inner jaw clamping range: 3–55 mm
Reverse jaw clamping range: 50–160 mm
Maximum rotational speed: 2500 r/min
1. Clean the end face of the spindle and the installation surface of the chuck, remove iron filings, oil stains and burrs.
2. Align the stop of the spindle, place it steadily and ensure concentricity.
3. Tighten the bolts diagonally and alternately in several stages evenly, and prohibit unilateral tightening.
4. Rotate at low speed for 1-2 minutes to check for runout, abnormal noise and looseness.
5. Regularly lubricate the gear disk and clean the claw grooves to avoid overloading Material: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
High Precision: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
2 Sets of Jaws: This chuck includes two sets of internal and external jaws. The clamping range of this chuck is between 0.12" / 3 mm - 6.3" / 160 mm, which is suitable for clamping a variety of industrial parts.
Fast Clamping Speed: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
High Adaptability: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.
Package Including??
1 piece K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-Centering 3 Jaw
Item SpecificsCountry of Origin United StatesBrand findmallMPN 258414Type Lathe ChuckModel K11-160Number Of Jaws 3Size 6 InchBolt Circle Diameter 5.59" / 142 mmChuck Body Thicknes 2.56" / 65 mmMaterial Hardened SteelColor SilverItem Package Quantity 1Item Weight 18.44 poundsMounting Thread 3-M8
