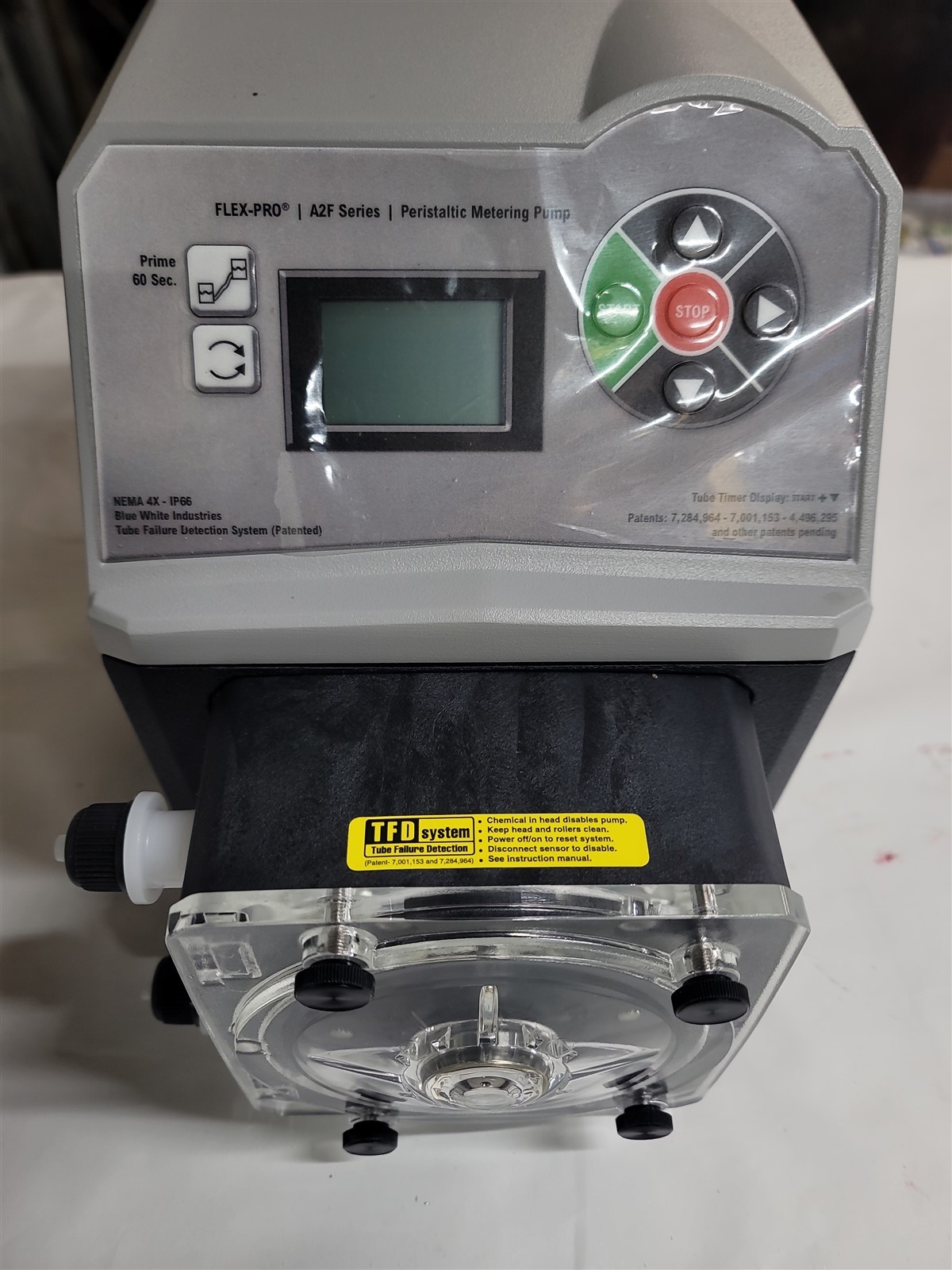

Flex-Pro Peristaltic Pump A2F24-SND 125 PSI, 1.7 GPH:
$990.00

New,unused item.Made in USA.

FEATURES:
Flex-Pro A2 Series Peristaltic Pump for high pressure and high accuracy applications.

Pressures to 125 PSI

4-20mA, Pulse Input and Manual Speed Control
Optional Modbus, Profibus, Industrial Ethernet
100:1 Turndown Ratio
Variable Speed DC Motor
NEMA 4X (IP 66) Washdown Duty
Patented Tube Failure Detection

Benefits of a Peristaltic Pump:

Peristaltic pump design does not have valves that can clog requiring maintenance.
Self priming - even against maximum line pressure. By-pass valves are not required.
Cannot vapor lock or lose turndown ratio.
Inject at maximum pressure in either direction (clockwise and counter clockwise).

Communication & Interface:

SCADA Inputs include: 4-20mA and pulse inputs for remote external speed control and either powered 6-24 VDC or non-powered dry contact closure for remote start/stop.
Chlorinated Polyvinyl Chloride (CPVC)
Optional: remote communications, Profibus DPV1, Modbus RTU, Modbus-TCP, EtherNet/IP, and Profinet RT I/O
Operator friendly digital touch pad with menu driven software.
Backlit LCD displays motor speed, input signal values, service and alarm status.
Outputs include: one 250V/3A relay to monitor TFD (Tube Failure System) and FVS (Flow Verification System). A 4-20mA analog output signal scaled to the motor speed is optional.
Compatible with Blue-White\'s output Flow Verification Sensor (FVS) system.

Superior Engineered Design:

Two CNC precision machined squeeze rollers and two alignment rollers for optimum squeeze, unparalleled accuracy, and tube life.
Heavy duty rotor - single piece plastic rotor means no flexing and increased accuracy with no metal springs or hinges to corrode.
Variable speed DC motor.
Specially engineered tubing for long life at high pressures. Meets FDA 21 CFR requirements for food contact applications.

Patented Features:

Patented Tube Failure Detection (TFD) system. Senses tube failure by detecting chemical in the pump head. No false triggering.
Patented feature to extended tube life.
Patented Safety Switch. Ensures safety of operator during regular pump head maintenance.

NOTE:Shippingfee (or free shipping) applies to continental U.S. only. No international shipping.

I ONLY SHIP TO NAME AND ADDRESS SPECIFIED BY WHEN sale ENDS AND PAYMENT IS RECEIVED.

Items are accurately described and sold as-is with no returns unless specified otherwise.

Please feel free to ask questions prior to offerding.
