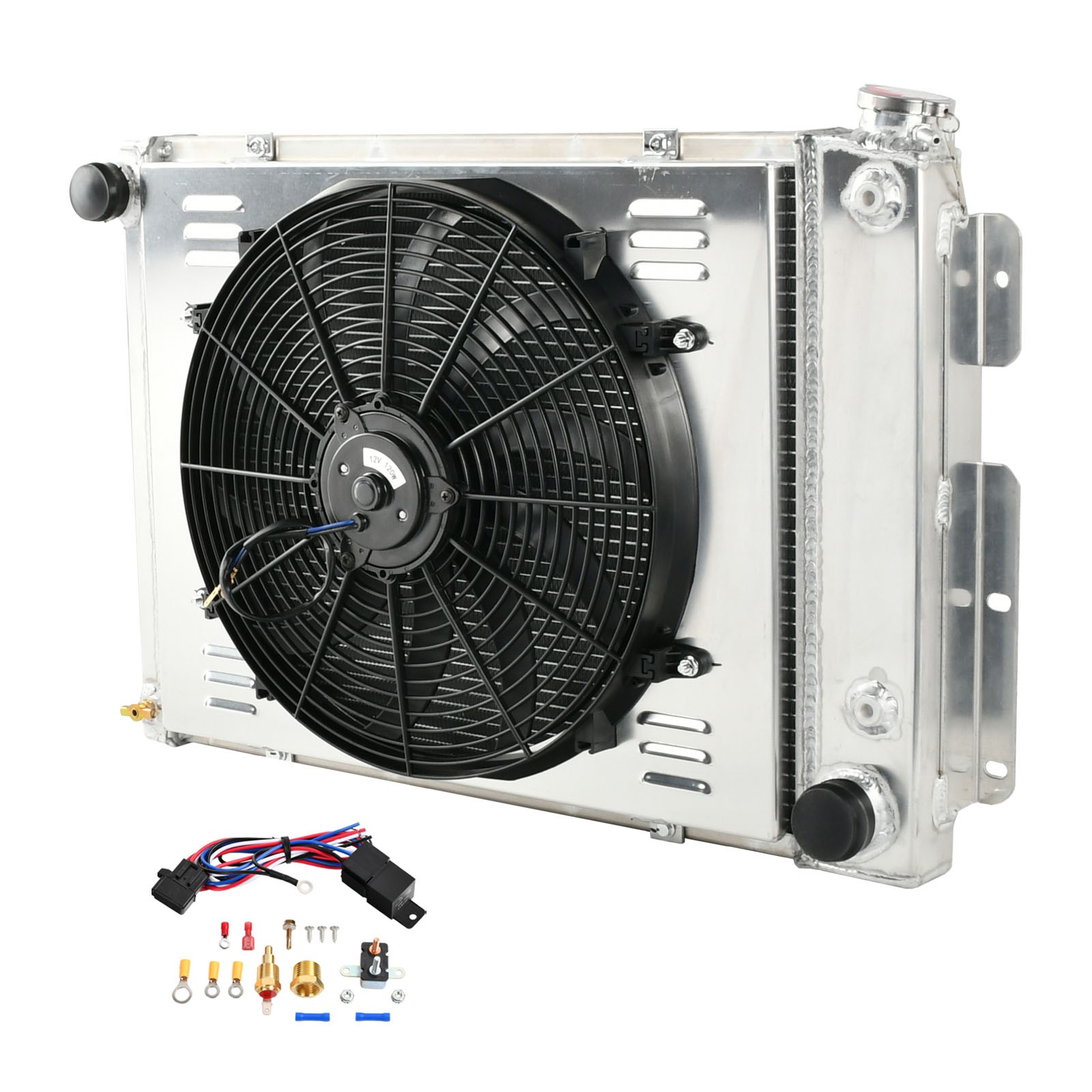

For 1967-1969 Chevy Camaro Pontiac Firebird 3 Row Radiator+Shroud Fan+Relay Kit
Description:
- 100% Brand new,never been used
- This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
- This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
- The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
- Professional installation in highly recommended
- Noinstruction included
- Made of High Quality FullAA5052Aluminum Construction
- Stronger and Higher Capacity for Coolant than Stock Units
- 3-RowLight-Weight Racing Design
- Core Size: 428 x 540 x 44mm (16.85" x 21.26" x 1.73")
- Overall Size: 494 x 730 x 159mm (19.45" x 28.74" x 6.26")
- Inlet/Outlet: 1.57" / 1.77"
- Direct Bolt-On OE Fitment or Replacement
- Improves Cooling by 35% to 45% Temperature
- Shroud Fan:
- 12V, 120W
- ≤11 AMP DRAW
- 10 Blades
- Color: Black
- Fan Diameter: 16.82"
- Fan Thickness: 3.27"
- Maximum Fan CFM: 1000 CFM
- Maximum Fan RPM: 2000±10% RPM
- Easy direct installation, require NO modification
- OE Fitment or Replacement, Push or Pull Type
- Thermostat Relay Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
- Probe typically threads into radiator, water outlet or manifold.
- RED + connect directly to battery.
- WHITE wire to ignition switch power source.
- BLACK goes to thermos switch.
- BLUE wire goes to the Fans.
Package Includes:
- 1X3 RowAluminumRadiator
- 1XAluminum Shroud
- 1X 16" Fans
- 1XThermostatRelayKit
- As the pictures
- 1969-1968 Chevrolet Camaro (V8 4.9L)
- 1969 Chevrolet Camaro (V8 5.0L)
- 1969-1967 Chevrolet Camaro (V8 5.3L)
- 1969-1968 Chevrolet Camaro (V8 5.4L)
- 1969-1967 Chevrolet Camaro (V8 5.7L)
- 1967 Pontiac Firebird (L6 3.8L)
- 1969-1968 Pontiac Firebird (L6 4.1L)
- Note: Please check compatibility. (ONLY FIT ENGINES USING 20 3/4" WIDE CORES)
Item SpecificsBrand SpmotoringType Radiator & Shroud Fan & Thermostat RelayTransmission Oil Cooler / TOC YesEngine Oil Cooler / EOC NoMaterial AluminumFitment Type Performance/CustomTransmission ATOverall Dimensions 730 x 494 x 119mm (28.74" x 19.45" x 4.69")Core Dimensions 540 x 424.24 x 52mm (21.26" x 16.70" x 2.05")Row Count 3 RowOutlet Diameter 1.75"Inlet Diameter 1.50"Filler Neck and Cap Included YesPerformance Up to 30% - 45% more coolingStyle CrossflowManufacturer Warranty YesFan Size 16"Fitment 1 1969-1968 Chevrolet Camaro (V8 4.9L)Fitment 2 1969 Chevrolet Camaro (V8 5.0L)Fitment 3 1967-1969 Chevrolet Camaro (V8 5.3L)Fitment 4 1968-1969 Chevrolet Camaro (V8 5.4L)Fitment 5 1967-1969 Chevrolet Camaro (V8 5.7L)Fitment 6 1967 Pontiac Firebird (L6 3.8L)Fitment 7 1968-1969 Pontiac Firebird (L6 4.1L)
