ITEMS DESCRIPTION

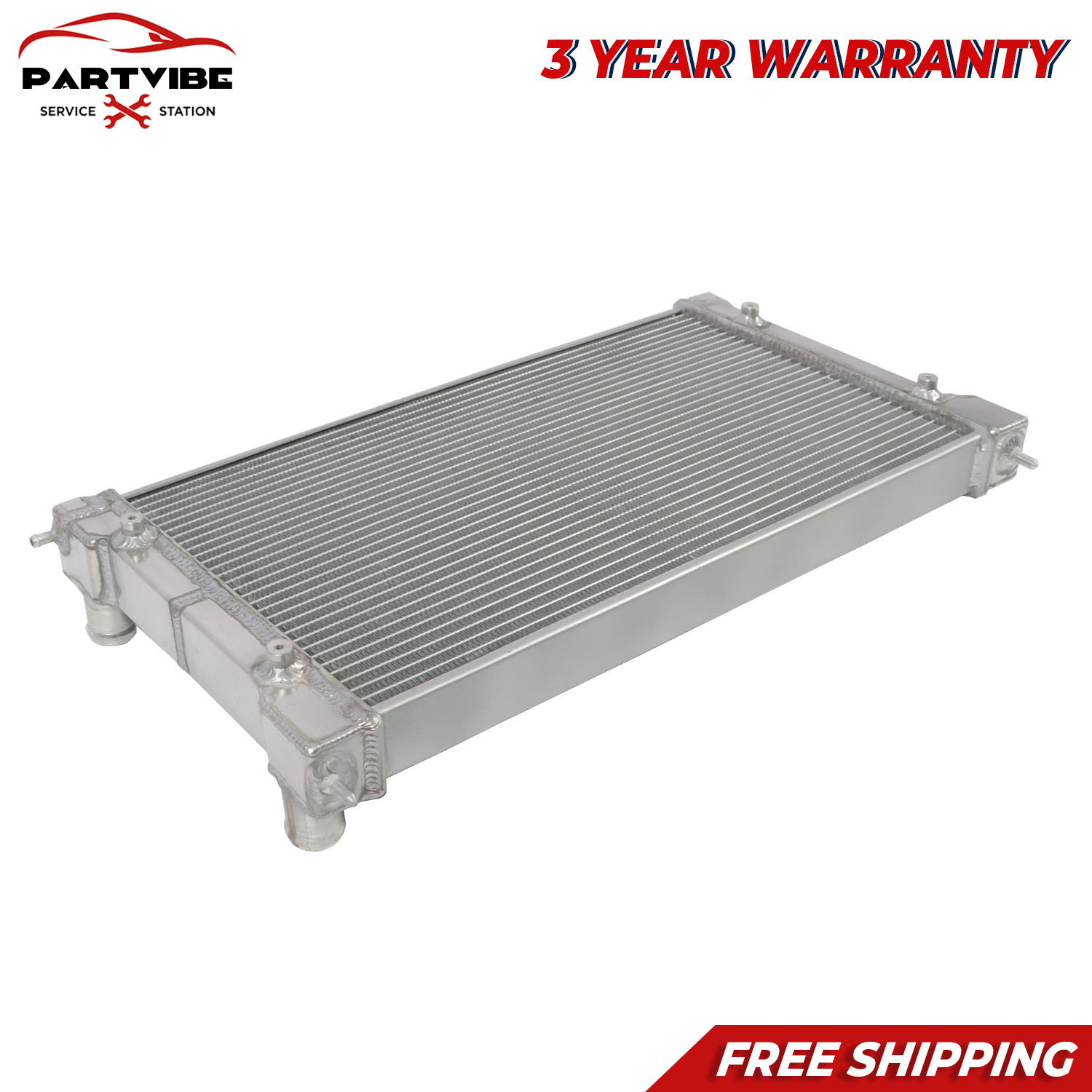

This all-aluminum radiator provides maximum cooling efficiency and prevents premature engine failure. The advantages that are heat transfer aluminum using tube and fin design can significantly increase the heat surface area, so that heat more efficient dissipation. It's built tough for improved reliability, airflow, and cooling.
matching quality designed, manufactured and thoroughly tested according to requirements.
Easy installation perfect finish and direct fit, enabling a quick and smooth product installation.
Compatibility:
Fitment For 1986-1992 Volkswagen GOLF MK1 MK2 GTI/SCIROCCO
Steps to verify compatibility:
1: Match the vehicle in the compatibility diagram.
2: Match overall dimensions to parts.
3: Match the part of the photo.
Please be sure to check the compatibility chart above to confirm the fitment of the item to your vehicle before completing your purchase.
Specific：
Condition: 100% Brand new, never mounted
Type：Radiator
Core Size:12 1/8" x 20 2/3" x1 1/2"
Overall Size: 13 1/2"x 25 3/8"
Inlet: 1 1/4"
Outlet:1 1/4"
Rows:2
Oil Cooler:No
Notice: Overall Size are absolute measurements. Height is from top of radiator cap to bottom of the supporting pins. Width is from side to side.
Features:
-According to design, ensure accurate fit, form and function, easy to drop installation;
-Built with high density multi-lowered fins for maximum cooling efficiency;
-Direct Replacement;
-Improve Cooling Efficiency;
-100% Leak Tested;
-Aluminum tanks with aluminum core;
-Built to strict quality control standards;
Package Included:
1 x Aluminum Radiator
How to replace the radiator:
1. Disconnect the battery.
2. Drain the radiator fluid into a suitable container.
3. Remove the old radiator:
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Disconnect the transmission cooling lines from the bottom of the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4. Install the new radiator:
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the transmission cooling lines carefully.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5. Fill the radiator with fluid.
6. Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
Note: Do please keep children and pets away when replacing the radiator)
How to clean radiator:
1. Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.
2. After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.
Note:
Add detergent if the tank is too full can take some antifreeze.
