Description

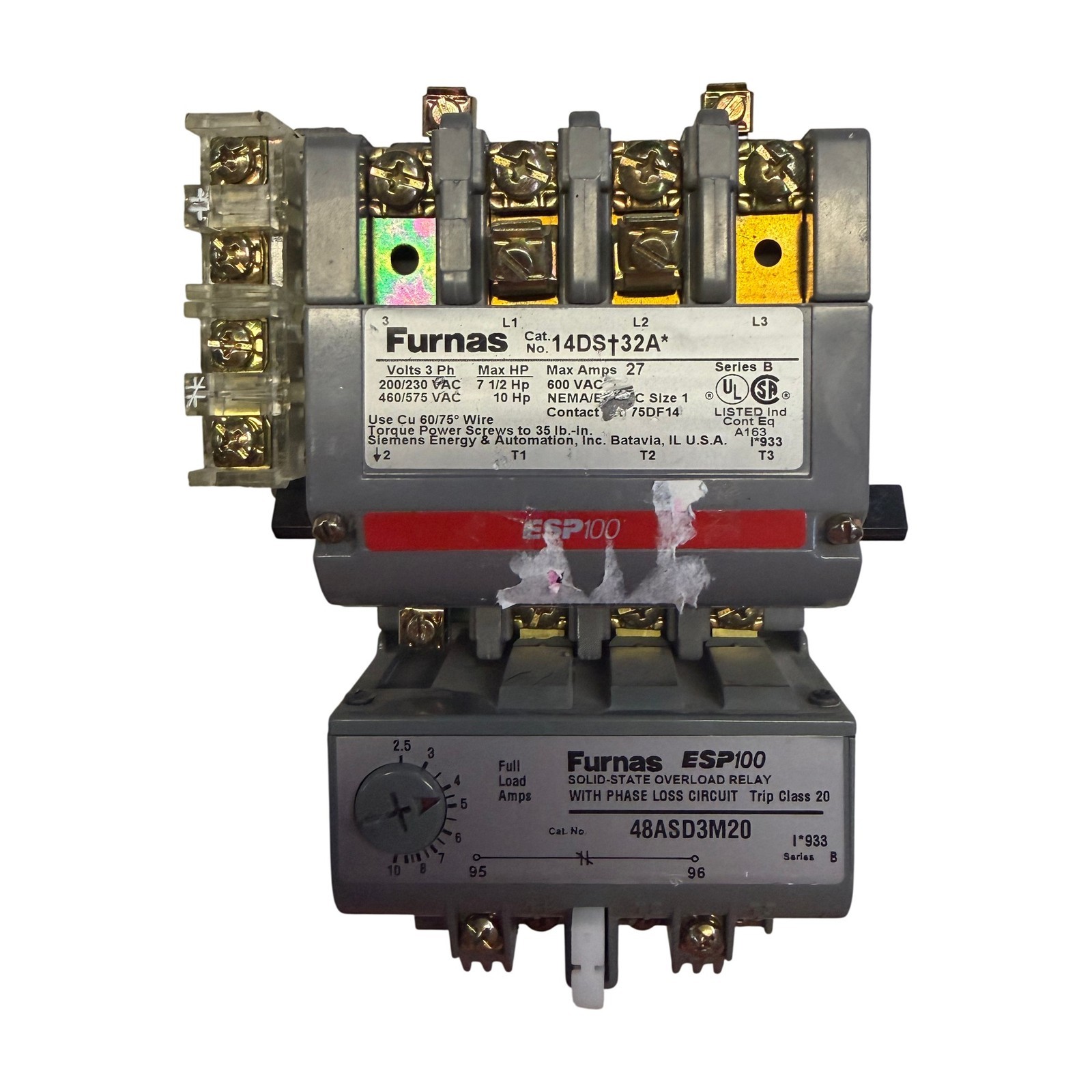

This Furnas 14DS†32A NEMA Size 1 magnetic motor starter is a 3-phase unit rated at 27A max and up to 600 VAC, suitable for motors up to 10 HP at 460/575V. It includes the Furnas ESP100 solid-state overload relay (Cat. No. 48ASD3M20), Series B, with phase loss protection and Trip Class 20, adjustable from 2.5 to 10 amps full load. The coil is rated 120V/60Hz and 110V/50Hz (Coil No. 75D73070F), manufactured by Furnas Electric Co. / Siemens Energy and Automation, Batavia, IL.
Features & (Siemens)Model Number (Starter)14DS†32A (14DS32A)Model Number (Overload Relay)48ASD3M20Product TypeMagnetic Motor Starter with Overload RelaySeriesSeries BNEMA SizeSize 1Max Amps27AVoltage Rating600 VACMax HP (200/230V 3-Ph)7.5 HPMax HP (460/575V 3-Ph)10 HPCoil Voltage120V / 60Hz (110V / 50Hz)Coil Number75D73070FOverload Relay TypeSolid-State with Phase Loss CircuitOverload Trip ClassClass 20Overload Amp Range2.5 - 10A Full Load AmpsOverload Voltage600 VAC 50/60 HzPhases3-PhaseContact Rating75DF14Wire RequirementCu 60/75 degree WireTorque Spec35 lb-in power screwsUL / CSA ListedYesWhat\'s Included
- Furnas 14DS†32A Magnetic Motor Starter (contactor body)
- Furnas ESP100 48ASD3M20 Solid-State Overload Relay with NEMA Size 1 motor control applications. Suitable for 3-phase motors up to 10 HP at 460/575V or 7.5 HP at 200/230V. Designed for use with Cu 60/75 degree wire. Consult Furnas/Siemens documentation for full compatibility and replacement coil options.
