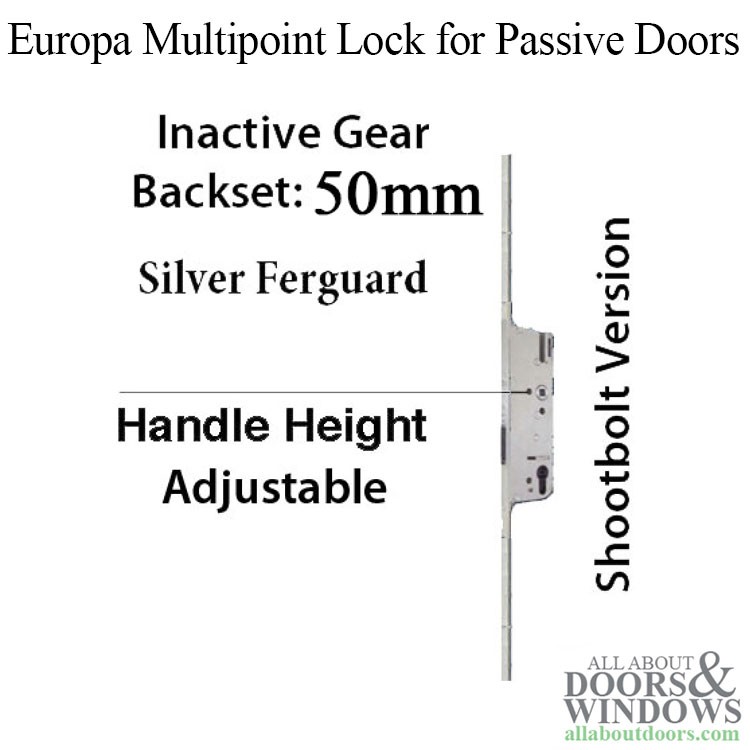

G-U Inactive 50/92 Europa Multipoint Lock Passive Door Silver Ferguard

G-U Inactive 50/92 Europa multipoint lock shootbolt assembly with adjustable handle height for passive doors. Main assembly only, does not include top or bottom Europa, Key below Handle

Faceplate Width: 5/8 inch (16mm)

Backset: 2 inch (50mm)

Function: Shootbolt for inactive Door, 2 point Lock

Handle Height: Adjustable, Standard is 35 Inches (889mm)

Cylinder Type: American w/ Flat Tailpiece

Length: 72.047 inches (1830mm)

Faceplate Finish: Silver Ferguard

Handle to Cylinder Spacing: 3-5/8 inch (92mm)

Spindle Size: 5/16 inch (8mm)

Notes

This lock does not have a receptacle for a spring latch and must be used with an Astrigal. Active door deadbolt enters receiving hole in face of inactive lock but only when inactive handles have been lifted and shootbolts engaged. When handles of inactive lock are turned up and shootbolts engaged, the mechanism in the receiver hole lifts up allowing the deadbolt to fit inside. Unless passive door is shut and shootbolts engaged, active door cannot be locked.

Related G-U Multipoint Lock Parts:
G-20416-00-0-1: Top Shootbolt, Reversing Gear - Silver
G-20415-00-0-1: Bottom Shootbolt - Silver
G-16790-05-0-1: Middle Extension, 19.685 inches (500mm) Doors over 81-1/2 inches
9-34442-00-0-0: Brass Sleeve / Shootbolt Socket Strike - Brass
