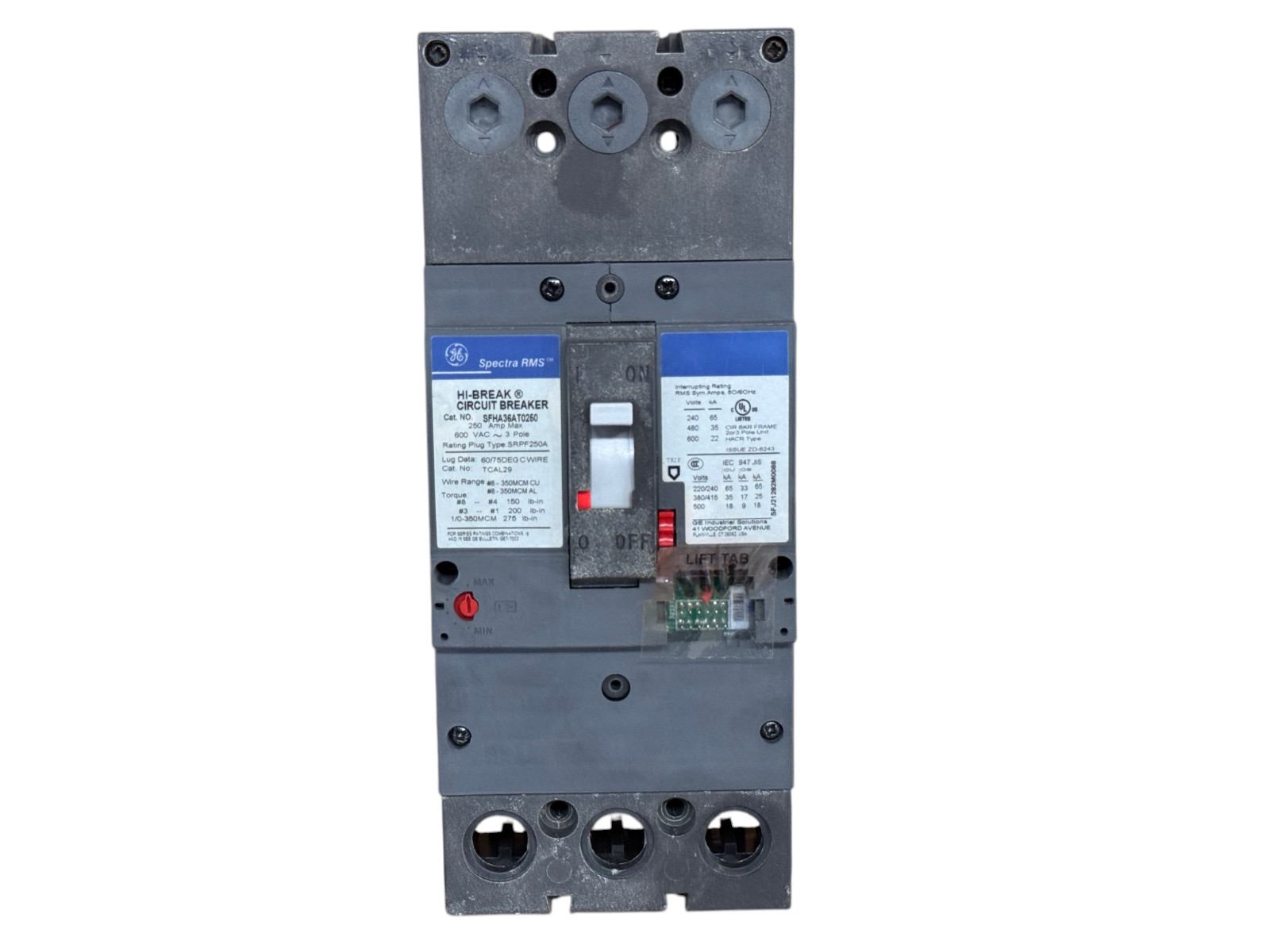

GE SFHA36AT0250 250A 3-POLE 600V SPECTRA RMS SF250 65KA CIRCUIT BREAKER NEW For Sale

Item Specifics:

• Brand: GE Industrial Solutions
• Series / Frame: Spectra RMS, SF Frame (Hi-Break)
• Part Number: SFHA36AT0250
• Type: Thermal-magnetic molded case circuit breaker with electronic rating plug
• Amperage: 250A frame max, rating plug set to 250A
• Voltage: 600VAC
• Poles: 3
• Phase: 3
• Trip Settings: Instantaneous trip adjustment currently set to MAX
• Mounting Type: Unit-mount, bolt-on
• Connection Type: Line and load lug terminals
• Wire Range and Torque: #8–350MCM Cu/Al; 150 lb-in (#8–#4), 200 lb-in (#3–#1), 275 lb-in (1/0–350MCM)
• Standards / Listings: UL Listed, IEC 947, JIS, HACR Type
• Accessory Notes: No rating plug installed
• Condition: New takeout. Removed from a panel but never energized. Clean — no wear, burn marks, or arc damage.

Warranty / Returns:

All items, unless otherwise specified, are guaranteed to be fully functional and not DOA, with 30 days to return the item. We accept returns in accordance with policies, and items must be returned per the terms of the listing purchased.

⚠️ Safety Notice: Electrical equipment should be installed by a qualified electrician in accordance with the National Electrical Code and all applicable local codes. Buyer assumes full responsibility for verifying suitability for their application.
