Description

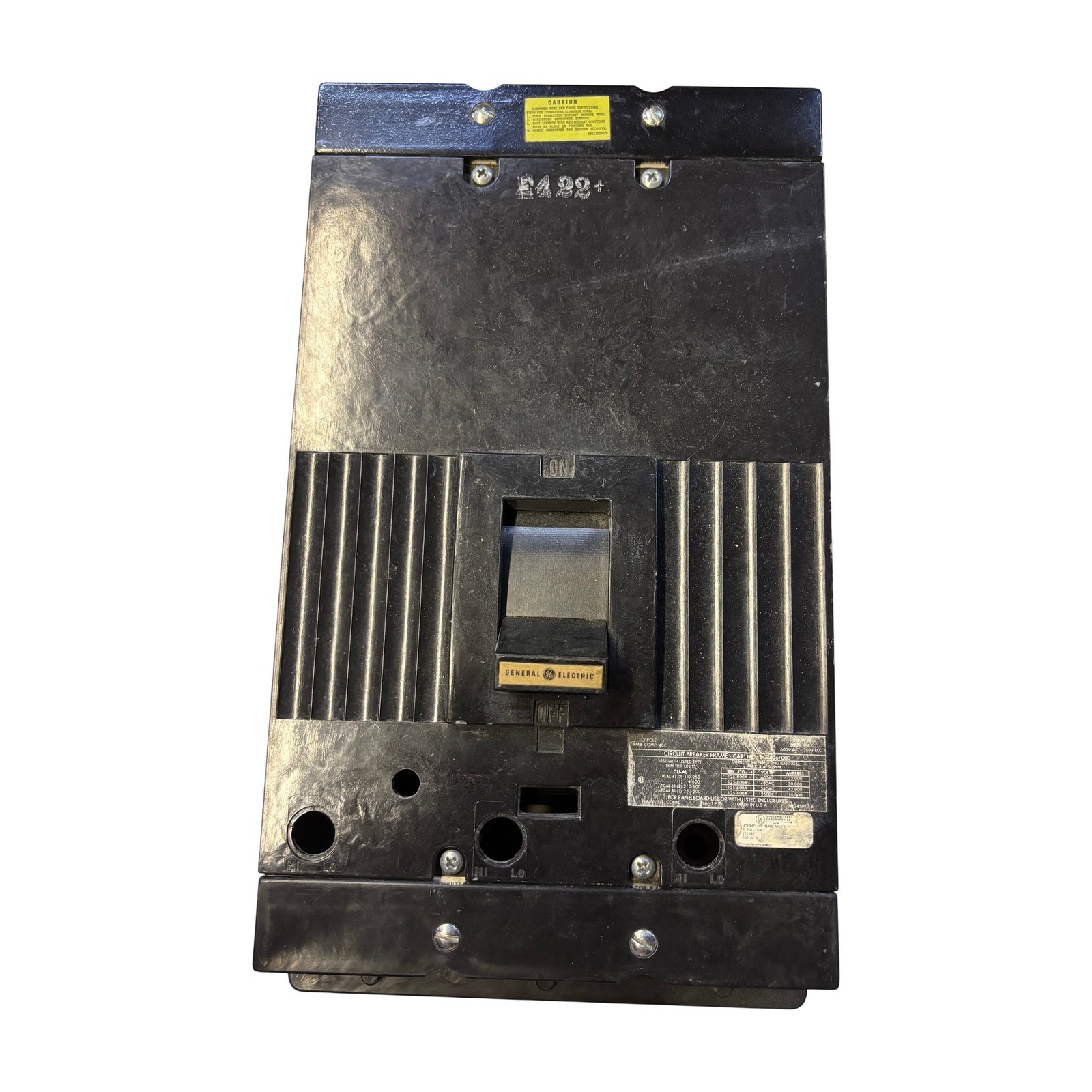

This is a used General Electric TKM826F000 molded case circuit breaker frame, 3-pole, rated 600V AC / 250V DC with a 125-800A breaker rating range. This is a frame unit designed to accept TKM series trip units (sold separately) and is suitable for panelboard use or with listed enclosures. UL Listed for use as a circuit breaker.
Features & Electric (GE)Model NumberTKM826F000Product TypeMolded Case Circuit Breaker FrameNumber of Poles3Voltage Rating (AC)600V ACVoltage Rating (DC)250V DCAmpere Rating Range125-800AInterrupting Rating at 600VAC22,000A RMS SymInterrupting Rating at 480VAC30,000A RMS SymInterrupting Rating at 240VAC42,000A RMS SymInterrupting Rating at 250VDC10,000AFrame SeriesTKMTrip UnitNot Included — Accepts TKM Trip UnitsConductor MaterialCU-AL (Copper or Aluminum)UL ListedYes (E11592)ApplicationPanelboard Use or Listed EnclosuresManufactured InUSAColorBlackWhat\'s Included
- 1x GE TKM826F000 Circuit Breaker Frame with GE TKM series trip units. Suitable for panelboard applications or use within listed enclosures rated for TKM frame breakers. Refer to GE TKM series documentation for compatible trip unit part numbers and applications.
