Mission-Critical Electrical TKM836F000 800 Amp Max 600V 3P Industrial Circuit Breaker Frame800 Amp Maximum Frame • 600V AC • 250V DC • 3 Pole • GE IndustrialITEM DETAILSManufacturerGE (General Electric)Model / Catalog NumberTKM836F000Equipment TypeIndustrial Circuit Breaker FrameMaximum Frame Rating800 AmpAC Voltage Rating600V ACDC Voltage Rating250V DCNumber of Poles3 PoleAmbient Compensation40°CLug Catalog NumberTCAL81Lug Wire Temperature Rating75°CConductor MaterialCopper / Aluminum (CU-AL)Wire Range3/0–500 kcmilLug Torque375 lb-inMounting ConfigurationBolt-On (Listing Specification; Verify Physical Configuration)Trip Unit / Trip RatingNot Confirmed From Provided NameplateInterrupting CapacityNot Confirmed From Provided NameplateConditionUsedTravel Safe Inventory IDTSWJ187D2#18732CIRCUIT BREAKER FRAME CONFIGURATION

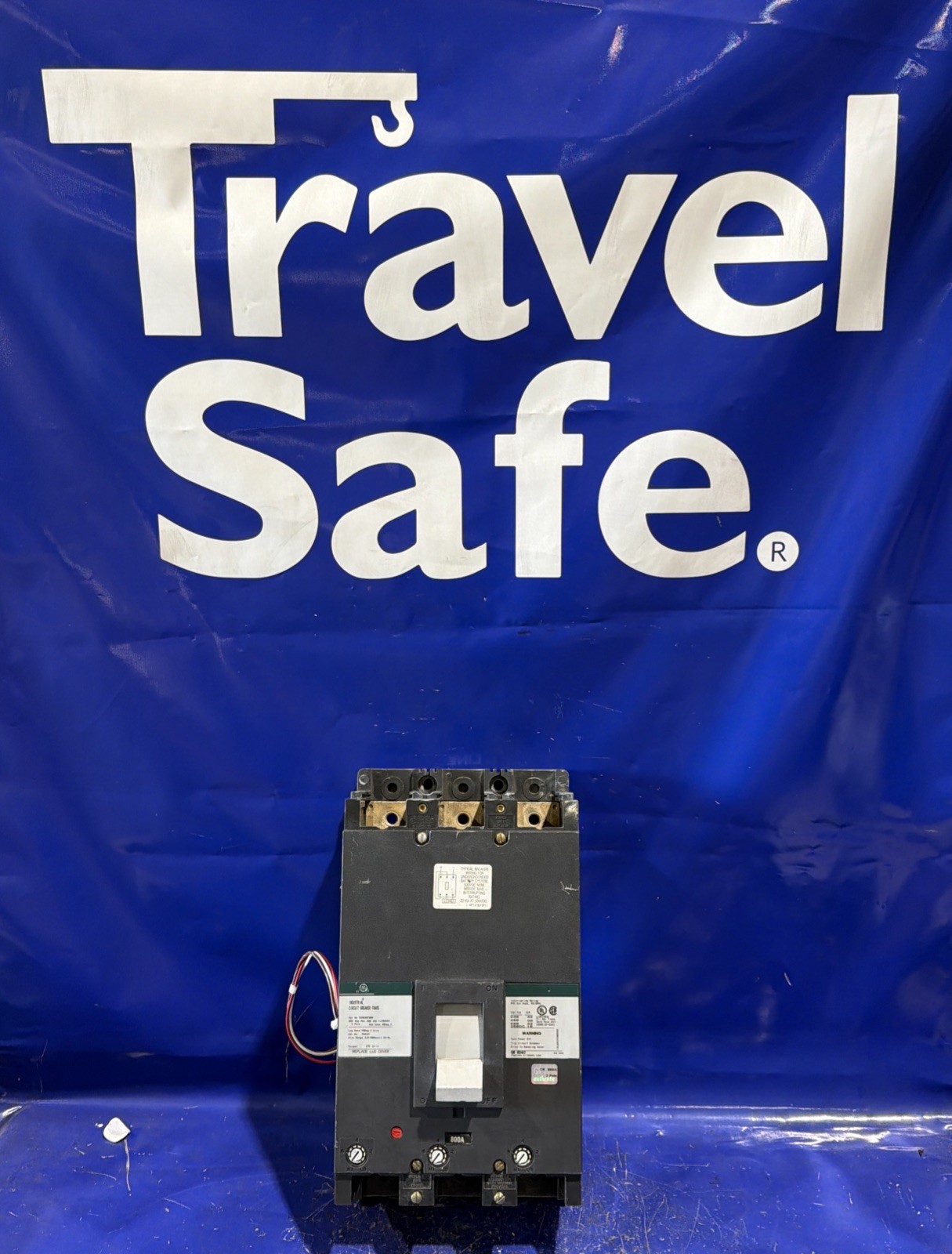

This listing is for a GE TKM836F000 industrial circuit breaker frame with an 800 Amp maximum frame rating, 600V AC voltage rating, 250V DC voltage rating, and 3-pole configuration.
The equipment nameplate identifies this unit as an Industrial Circuit Breaker Frame. The 800 Amp marking represents the maximum frame rating and should not automatically be interpreted as the installed protective trip rating.
This GE frame is intended for use in compatible industrial electrical distribution equipment requiring the appropriate frame size, voltage rating, pole configuration, terminal arrangement, and approved protective components.
The frame carries a 600V AC and 250V DC marking. Installation must comply with the manufacturer's applicable ratings and requirements for the intended AC or DC system.
The nameplate also identifies 40°C ambient compensation and specifies the use of compatible terminals and conductors.
Important: The actual installed trip unit, trip rating, interrupting capacity, and completeness of the breaker assembly have not been established by the provided frame nameplate. Buyers should verify these details from additional equipment labels and listing photographs before purchasing.
TERMINAL & LUG SPECIFICATIONS
The nameplate identifies TCAL81 as the lug catalog number and specifies 75°C copper or aluminum conductors.
The listed conductor size range is 3/0–500 kcmil, with a specified terminal tightening torque of 375 lb-in.
Terminal compatibility, conductor quantity, actual installed lugs, and wiring requirements should be confirmed against the physical equipment and manufacturer's installation instructions.
CONDITION
Travel Safe decommissions circuit breakers and electrical distribution equipment from data centers, commercial facilities, industrial sites, and mission-critical electrical environments throughout the United States.
This circuit breaker frame is used and may show normal signs of previous installation and service including scratches, scuffs, discoloration, label wear, mounting marks, surface wear, or other cosmetic imperfections.
Please review all listing photographs carefully for the actual condition of the breaker housing, operating mechanism, terminals, mounting points, labels, and included components.
VERIFY EQUIPMENT CONFIGURATION
1-YEAR TRAVEL SAFE EQUIPMENT WARRANTY
This equipment includes Travel Safe's standard 1-year equipment warranty.
Warranty coverage is subject to Travel Safe's applicable terms and conditions.
5-YEAR & 10-YEAR EXTENDED PROTECTION
Looking for longer-term protection? Qualifying Travel Safe equipment may be eligible for optional 5-year or 10-year Extended Equipment Protection.
For an approved covered equipment failure during the protection period, Travel Safe provides comparable replacement equipment subject to the applicable protection terms.
Interested in extended protection?
Message Travel Safe through for eligibility and pricing on this equipment.ELECTRICAL INSTALLATION AVAILABLE
Travel Safe provides professional electrical installation services for qualifying electrical equipment. Installation is quoted separately based on equipment requirements, project scope, electrical connections, equipment location, and job site conditions.
NATIONWIDE SHIPPING & FREIGHT
Travel Safe ships electrical equipment nationwide. Depending on the size, weight, and quantity of the equipment, orders may ship by parcel carrier or commercial freight.
Larger industrial circuit breaker frames may require reinforced packaging or commercial freight depending on their dimensions and shipping weight.
WHY BUY FROM TRAVEL SAFE?Electrical Equipment Expertise
Experience with circuit breakers, panelboards, switchgear, transformers, and power distribution equipment.Nationwide Capabilities
Equipment shipping, freight, electrical services, and project support across the United States.Data Center Experience
Equipment recovered from real-world commercial and mission-critical electrical facilities.More Than an Equipment Seller
Travel Safe provides decommissioning, electrical contracting, installation, asset recovery, and facility services.ABOUT TRAVEL SAFE
Questions about this equipment?
Travel Safe Inventory ID: TSWJ187D2#18732Please review all photographs and listing details before purchasing. Verify catalog number, frame amperage, installed trip rating, AC/DC voltage ratings, pole configuration, interrupting capacity, mounting arrangement, terminal specifications, dimensions, electrical requirements, and compatibility with your application.
