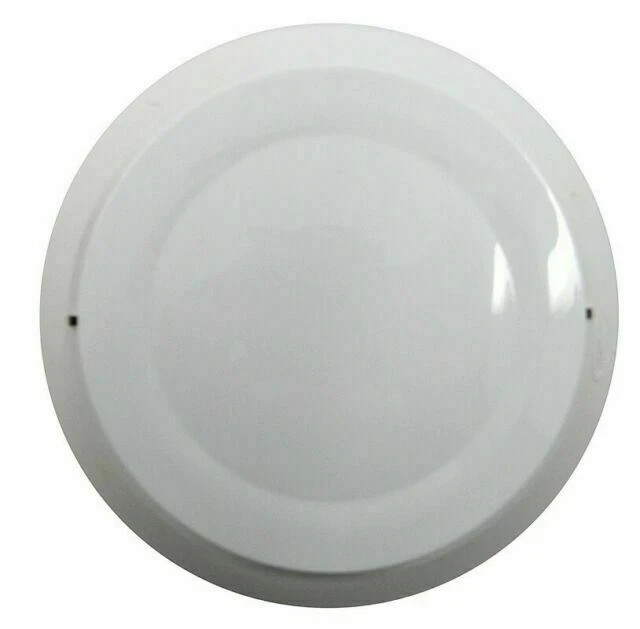

Gamewell-FCI ASD-PL3 Photoelectric Smoke Sensor White For Sale

The Gamewell-FCI ASD-PL3 Intelligent Addressable Photoelectric Smoke Detector is a Intelligent addressable photoelectric smoke detector designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Intelligent Velociti Series 3 photoelectric detector with re-engineered optical chamber. White finish, Velociti-only protocol.

• Velociti Series 3 photoelectric, intelligent addressable on Gamewell-FCI loops
• Re-engineered optical chamber meets 7th Edition sensitivity range
• Programmable sensitivity per detector via panel software
• Rotary decimal addressing, 01 to 159
• Dual bicolor LEDs, 360 degree visibility
• Built-in functional test switch (M02-04-01 magnet or M02-09-00 wand)
• White finish, base sold separately
• 7th Edition listed, approved
• Velociti system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

• Commercial buildings (offices, retail, hospitality)
• Schools and institutional facilities
• Healthcare and assisted-living facilities
• Light industrial spaces with smooth-ceiling spacing

The ASD-PL3 helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

• Manufacturer: Gamewell-FCI
• Model: ASD-PL3
• Product Type: Intelligent addressable photoelectric smoke detector
• Series: Velociti Series 3 Photoelectric
• Protocol / Platform: Velociti
• Voltage Range: 15 to 32 VDC
• Standby Current: 200 µA @ 24 VDC (1 comm every 5 sec, green LED enabled)
• Alarm Current: 2 mA @ 24 VDC (red LED enabled)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Humidity Range: 10% to 93% non-condensing
• Air Velocity Range: 0 to 4,000 ft/min (0 to 1,219.2 m/min)
• Dimensions: 2.0 in (51 mm) installed in B300-6 base
• Weight: 3.4 oz (96.4 g)
• Color: white
• Certifications: (7th Edition), UL Listing: S2332, Approved: 3023594
• Compatible Bases: B501-WHITE, B501-WHITE-BP, B300-6, B300-6-BP, B200SR-WH, B200S-WH
• Compatible Panels: Gamewell-FCI E3 Series (full Velociti support), Gamewell-FCI S3 Series (full Velociti support), Gamewell-FCI GWF-7075 (Velociti only — same as this detector)
