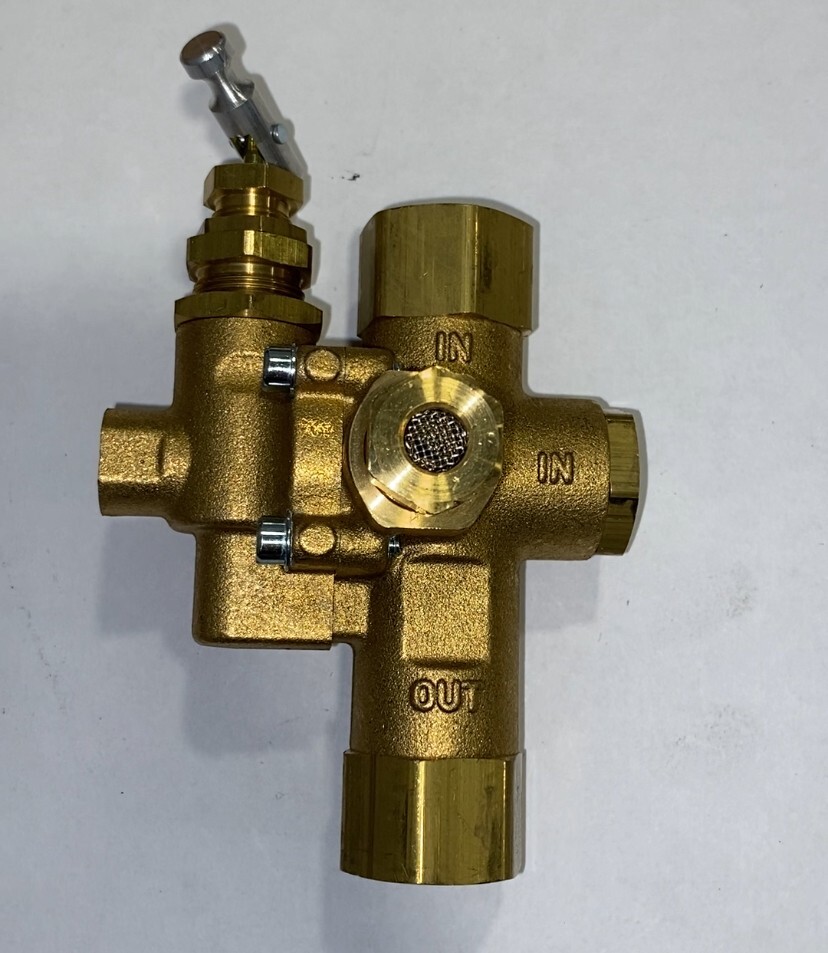

Gas Air Compressor unloader valve pilot check valve combination 145-175 NG1:
$45.99
Made in USA!! NG1 145 - 175
Unloader valve (continuous run unloader) for gas & electric powered air compressors
145-175factory setting. Pressure can be adjusted 30-40 psi up or down
1/2" Female Pipe Thread Inlet x 1/2" Female Pipe Thread outlet.
Includes complete with hand unloader and muffler/silencer.
30 SCFM Rating
Continuous Run Air Compressor Piloted Discharge Check Valve
1/2"Female NPTInlet x 1/2" Female NPT Pipe Thread Outlet
This piloted discharge check valve is a combination of a pilot valve, a pressure discharge valve, and check valve in one complete piece to make a constant run air compressor with gas engine or electric motor.
This valve will relieve the pressure the compressor is pumping out to the atmosphere through a silencer so the compressor can stay running without building pressure.
-Material: Machined Brass
-USA MADE
-1/2" Female NPT Pipe Thread Outlet To Tank
-1/2" Female NPT Thread Inlet
-1/8" NPT Female Pipe Thread Port For Throttle Control
-Factory Set At145 PSI Cut In & 175 PSI Cut Out Pressure
-Pressure Can Be Adjusted 30-40 PSI Up or Down
-30 CFM Rating
-Equipped With A Manual Unloader Flip Valve At The Top Of The Unloader
Piloted discharge check valves combine a pilot valve, a discharge valve, and a check valve into one system used to run an air compressor at a constant speed. They are used on both gas engine and electric motor compressors.
