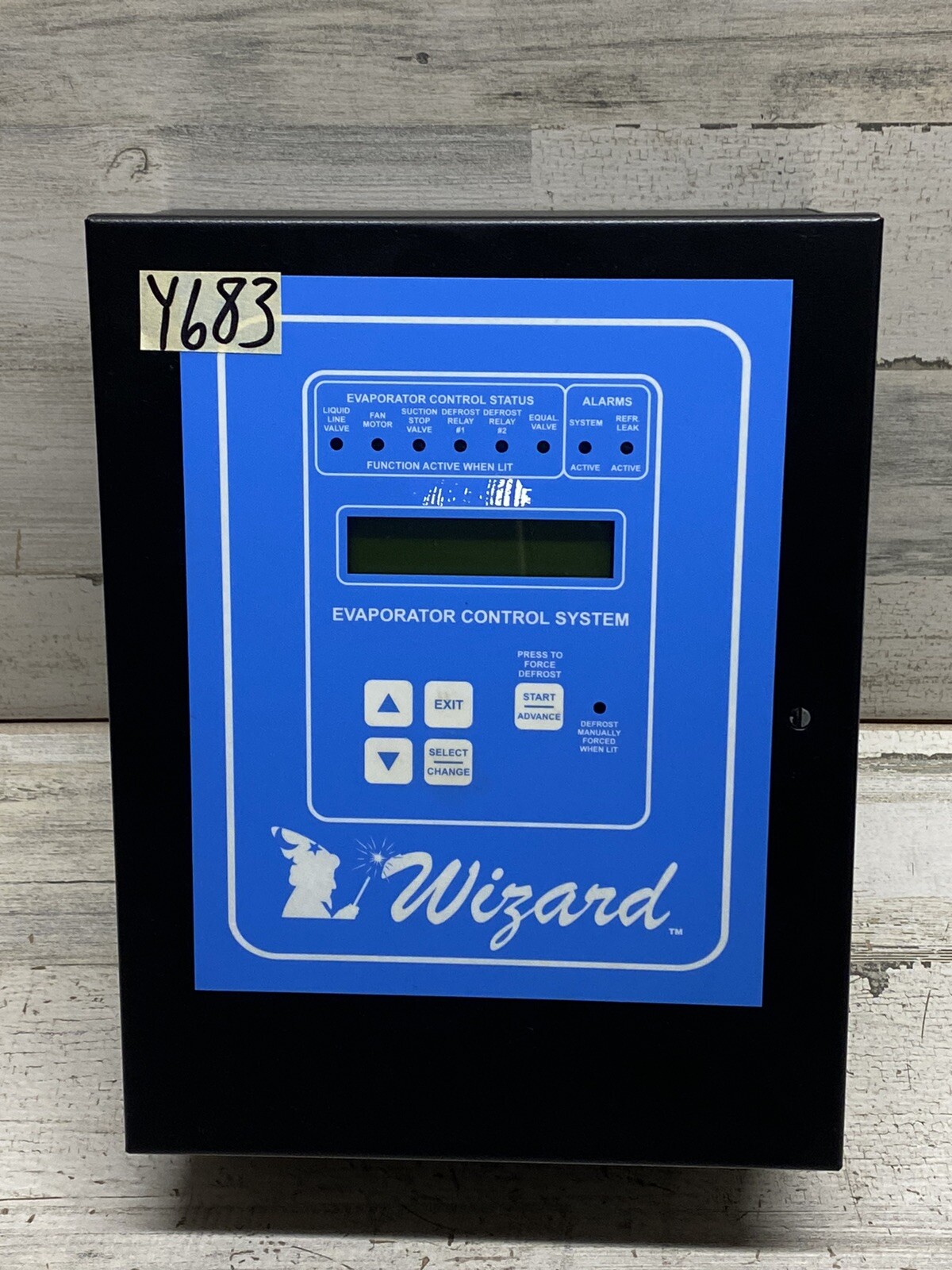

This is for a Genesis Wizard Evaporation Control System 14A-WEC24-00109A6.21 refrigeration control. The control system is in excellent condition and works perfectly. This is for the control system unit and comes as seen in the photos. #Y683
The Wizard Industrial Control System was designed to incorporate the functions necessary to control the evaporator of a large refrigerated space into a compact simple-to-install package.
Temperature Control & Alarming
Each Wizard is equipped with a temperature sensor for monitoring and controlling temperature in a refrigerated room. The control monitors alarms both high and low levels each having its own programmed delay. The Wizard can monitor up to three independent temperature sensors for Temperature Control, Coil Temperature, and an Auxiliary Temperature.
Defrost Control
The Wizard is an electronic control and time clock which can operate up to 12 defrost cycles per day with three separate defrost schedules as well as manual defrost. The defrost can be gas, electric, water, or off-time defrost. During a defrost cycle, the Wizard will sequence Solenoids, Valves, Fans & Heaters as required.
Remote Communications & Data Logging
GenCom Communications software allows the computer operator to access and change the Wizard within a facility via a PC connection. The Wizard will record up to 1500 temperature log entries into its internal memory.
Refrigeration Leak Monitoring
The Wizard makes any refrigerated room Code Compliant with the addition of a SHERLOCK Refrigerant Sensor. The Wizard will activate alarms and can isolate the coil should the leake concentration exceed safety levels.
Defrost Termination
A Defrost Cycle can be terminated by: Clicks-On Thermo-disk, Temperature Termination Sensor, Suction Pressure Switch Time.
Shutdown (Standby)
The Wizard can be configured to shutdown the system on a daily schedule during off-season or maintenance periods.
Humidity Control
The Wizard will control a single zone for humidity with an optional Humidity sensor.
Load Shedding/Temp Control Setback
The Wizard System allows the user to change the Temperature Control Setpoint to a higher value in order to reduce energy demand.
