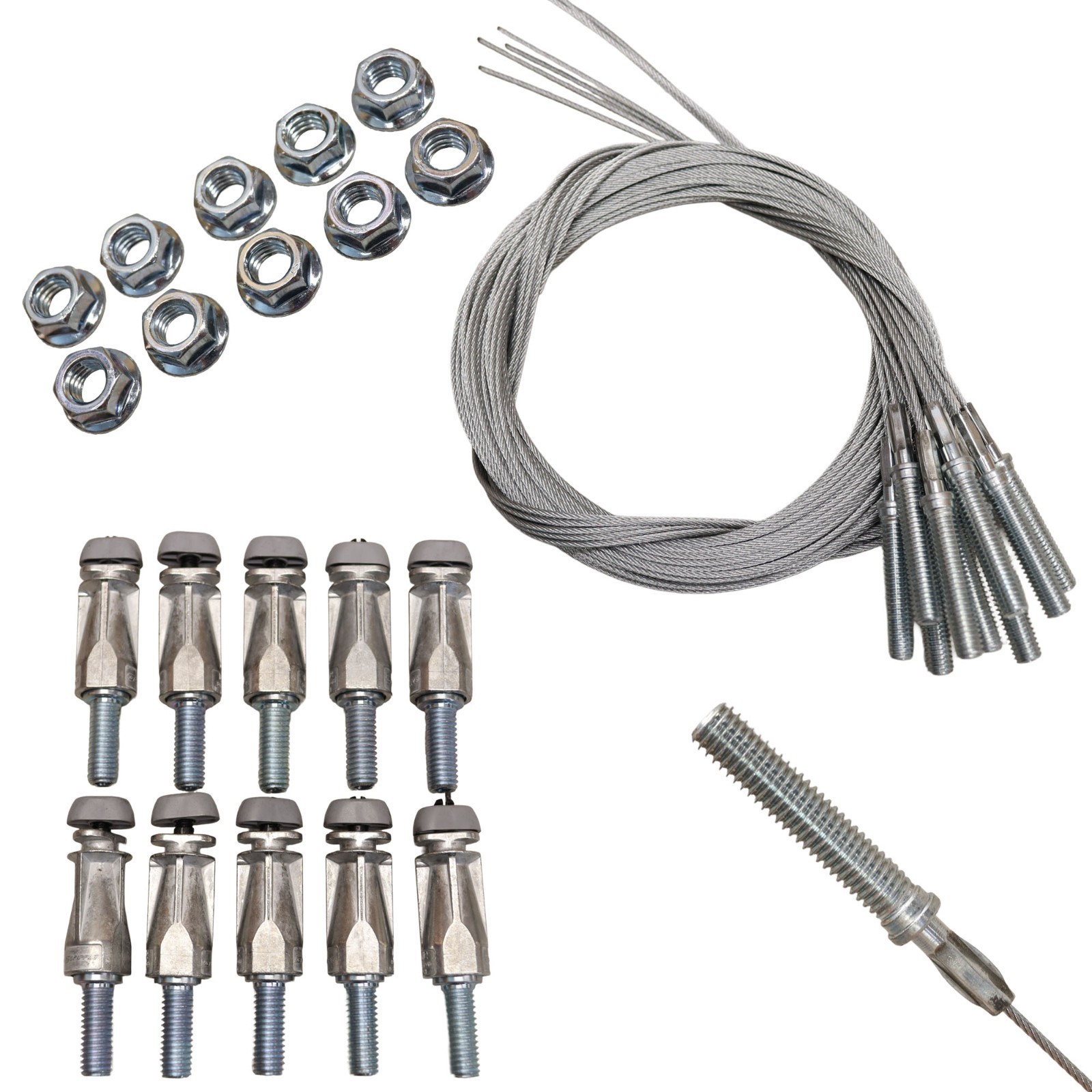

Gripple No.2 UniGrip Fastener with 3/8\" Center Exit Stud, 120lb Load, 10 Pk For Sale

GrippleNo.2 UniGrip Fastenerwith 3/8\" Center Exit Stud,120lb Load Rating10 PC Pack
Brand New In Original Pack

The next generation of wire rope suspension products designed for the fast suspension of cable containment, pipework, ductwork, HVAC systems and modules, including multi-tier installations.

• Quick – up to 6 times faster than traditional suspension systems
• Safe – can be pre-installed to channel using pre-fitted washer/nut or using retention clip reducing time working at height
• Easy – integral ergonomically designed release button allows for simple adjustment
• Secure – button acts as a locking screw and indicator clearly highlights the wire is locked in position for ultimate security
• Versatile – variety of foot attachments available to suit applications
• Strong – highest load rating capability to date up to 120 LBS with 5:1 SWL

UniGrip - Standard is designed for non-mechanical fixing through brackets. It\'s supplied with retention clip for pre-fabrication applications and features central wire exit.

The Gripple UG2-FN-S3/8G is aNo.2 UniGrip fastener with a 3/8\" center exit stud end, designed for fast, secure hanging of services,It features a 120 lbs safe working load (5:1 safety factor) and is ideal for suspending HVAC, electrical, or plumbing systems. The kit includes a 10ft wire and is adjustable via an integrated button.Key Features and Specifications:

• Product:GrippleUniGrip Center Exit(UG2-FN-S3/8G).
• Load Rating:120 lbs (54 kg) with a 5:1 safety factor.
• End Fixing:3/8\"-16 x 1-7/8\" stud.
• Wire Length:10 Ft
• Application:Ideal for concrete or steel substrates using the stud.
• Adjustment:Features a release button for easy height adjustment.

These hangers are designed to be up to 6 times faster to install than traditional methods.
