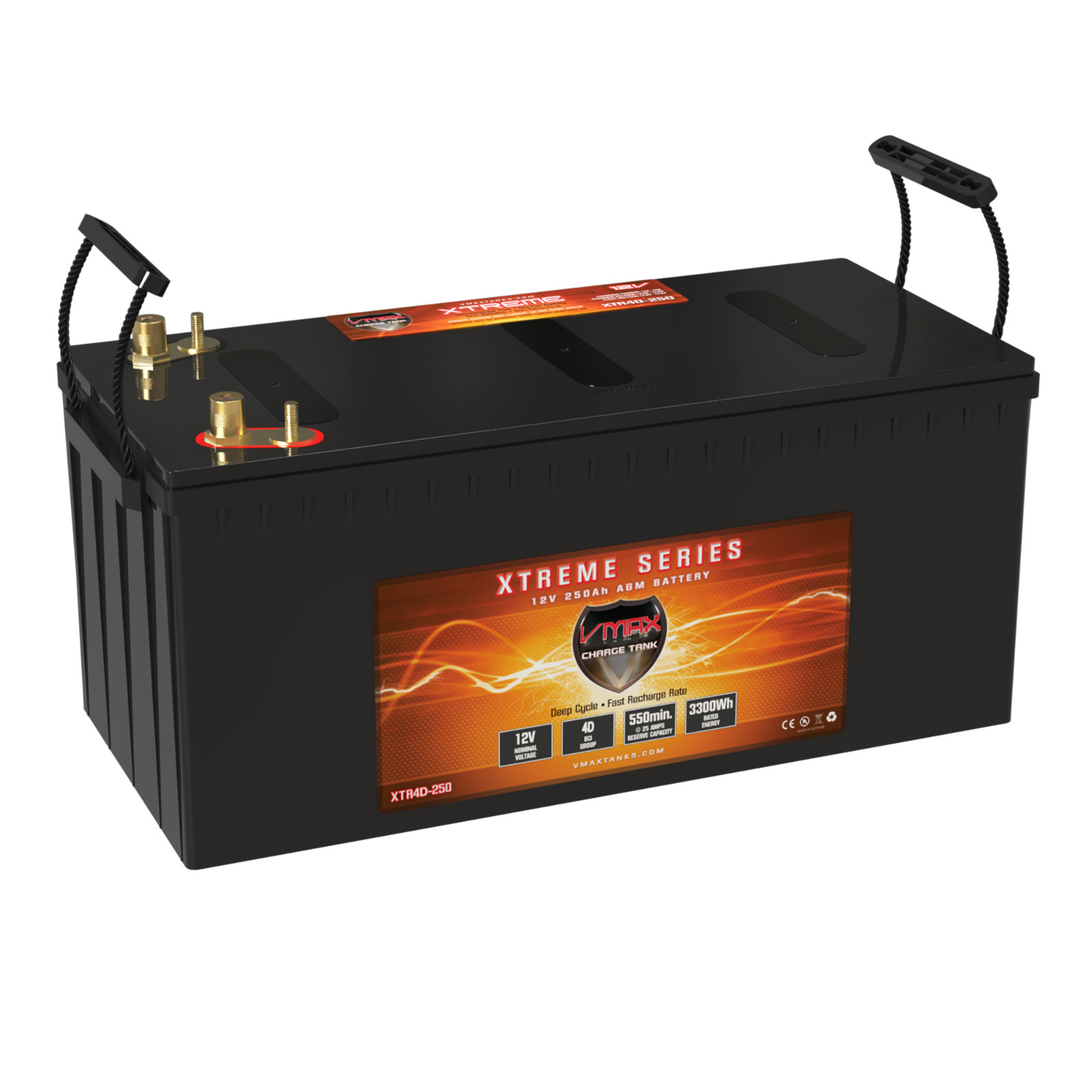

XTR4D-250 Group 4D Heavy Duty AGM Deep Cycle 12 Volt Battery
Superior Plates withan expected life span of10to12years in float service applications.
Nominal Voltage20Hr CapacityCCA
MCA
RC (min)
Energy
(kWH)
Terminal PostsDimensionsWeight
Charging Current*
Charging Voltage
Float Voltage
12V250AH
1100A
1350A
550
3.3SAE+3/8\" STUD20.6\"w X 9.45\"d x 8.6\"h/9.4th**143lb
15A-70A
14.6V-14.8V
13.6V-13.8V
25A @ 1.75/Cell 550Min
75A @ 1.75/Cell 160Min
Short Circuit Current: 5000A
Max Discharge Current: 2400A (5s)
Internal Resistance: 3.0mOhms
Recommended Charging Options:
- AC Chargers:Any Quality Brand AGM-Smart & Microprocessor controlled- charger with the recommended specs above can be used.
- Vehicle Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 400-1200W.
- Wind Turbine: 400W-1500W.
- Charge Controller: 50A-UP
* Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.
**Total Height including terminal post.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 0~120F
- Storage: -4~140F
Temperature Compensation:
- Cycle use:-30mV/C
- Standby use: -20mV/C
