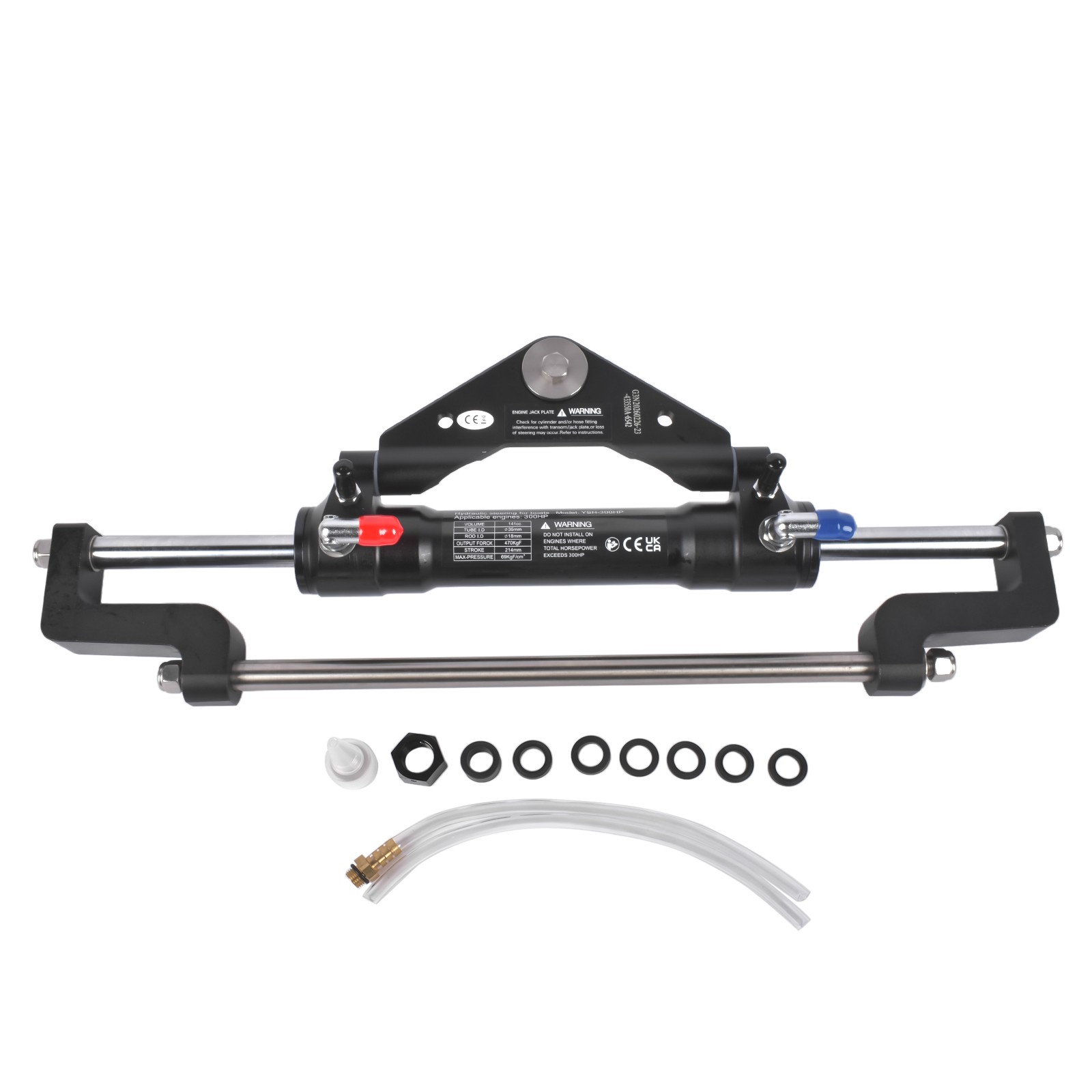

Hydraulic Outboard Steering Cylinder The front mount steering cylinder is designed for single and twin non-power assisted outboard engines up to 300HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard-powered boats like the center console, offshore fishing, bass boats, flat boats, and many more. Part Number HC5358-3 Specifications
Model: HC5358-3 Front Mount Cylinder
Applicable: Up to 300HP
Max Working Pressure: 10.3Mpa/1500PSI Key Features Powerful Performance: The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 300 HP. Advanced Crush Resistance: The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment. Built-In Two-Way Lock: The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion. Positionable O-Ring (ORB): Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing. Aluminum Alloy Casing: High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance. Wide Application: The HC5358-3 steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more. Package Contents 1x Hydraulic Outboard Steering Cylinder (As Pics Shown)
