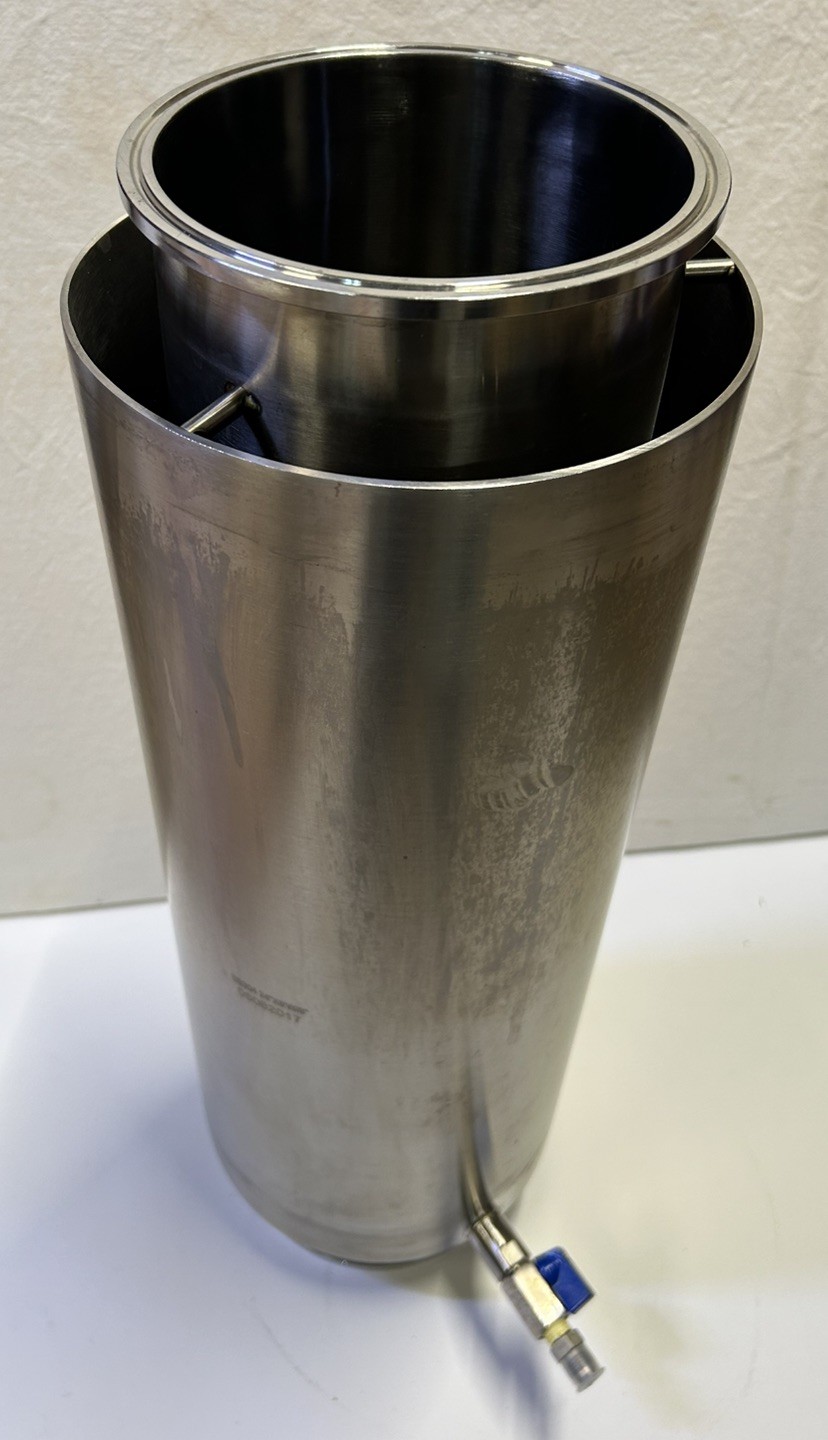

HFS(R) 6" Tri Clamp Sleeved Spool, 24" Height, Dewax Chamber For Sale

• [Size]: Sanitary Size: 6"; Flange OD: 6.562"; Tube ID: 5.782"; Tube OD: 6"; Sleeve OD: 8"; Height: 24".
• [Quality Materials]: The Sleeved Spool is made of high-quality 304 stainless steel, which is durable, stable, rust and corrosion-resistant, and suitable for long-term use.
• [Precise Design]: The Dewaxing Spools allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor. They have attached tri-clamp fittings on each end for user convenience.
• [High Working Temp]: It is suitable for liquids working at -58°F to 392°F.

Features: Spool
Material: Stainless Steel
Tri Clamp Size (IN): 6
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Sleeve Connection Type (IN): FNPT 1/2
Sleeve OD (IN): 8
Sleeve Length (IN): 20

Specifications: Spool
Diameter (IN): 6
Height (IN): 24
Radius (IN): 3
Volume (Cu In): 678.24
Fluid Capacity (L): 11.10
Fluid Capacity (Gal): 2.94
Butane Capacity (LBS): 12.00 - 15.00
Propane Capacity (LBS): 9.50 - 11.88
Biomass Capacity (LBS): 3.50 - 5.00
3A Sieve Capacity (LBS): 20.00
Nugget Ice Capacity (LBS): 16.00

Specifications: Sleeve
Fluid Capacity (L): 7.20
Fluid Capacity (Gal): 1.90
Sleeve Ice Capacity (LBS): 10.37
