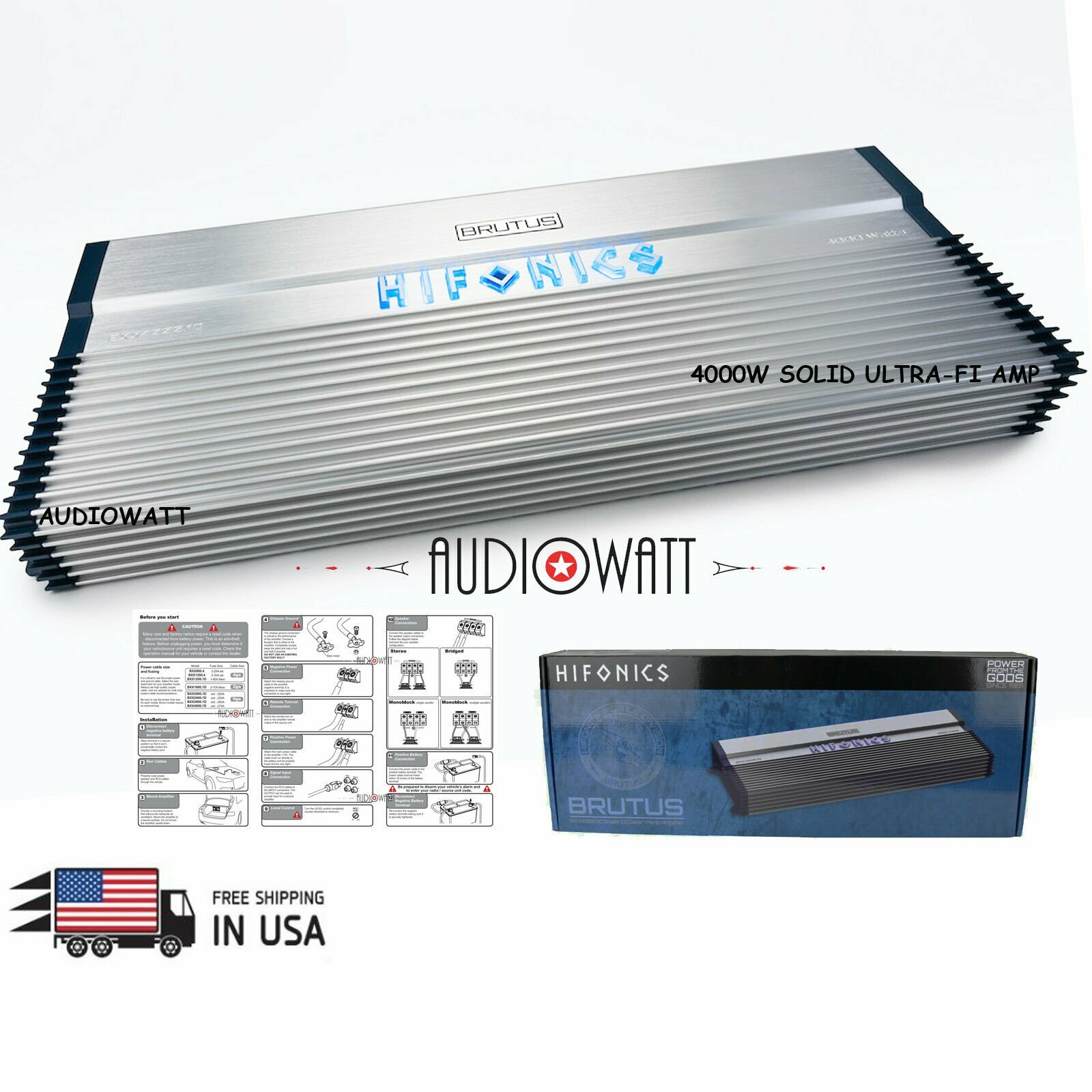

What We Sell?BRAND NEWHIFONICS BXX4000.1D BRUTUS 4000W 1-OHM STABLE ULTRA-FI MOSFET 1-CHANNEL AMPLIFIER
Product Highlights:HIFONICSBXX4000.1D BRUTUSLOW NOISE PRE-AMPLIFIER CIRCUITRYMaximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion
RCA INPUTSNickel-plated RCA jacks create the most effiecient audio connection and resist corrosion
OPERATION MODEMono only
CROSSOVER TYPEVariable electronic crossovers allow for complete control of the sound
ELECTRONIC EQUALIZERControl of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.Check specifications for specific frequencies for this amplifier
CLASS / TOPOLOGYSuper D-Class designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs
OUTPUT DEVICE TECHNOLOGYPro-Fi Output Device TechnologyThe Ultra-Fi MOSFET is designed for music production vs just electronics output power.It produces very musical high power with high efficiency for cooling and minimal distortion
HEAT SINKClassic aluminum Hifonics design to minimize heat build up on the Ultra-Fi output devices
POWER SUPPLYSimpatico Coil DesignThe dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
OUTPUT CONNECTIONSHigh temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant seal
CONNECTION TYPEMolded and AngledSecure connection for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICSMonitor overload and speaker short protection with illuminated indicators on the amplifier end panel
BASS REMOTE INCLUDEDWired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
PHASE ADJUSTMENTPhase 0-180°Bass drum attack, snap requires phase between deep frequency subwoofers and upper midbass speakersFat man/Skinny man, must arrive at your ear at the same time or bass sounds muddy
STRAPPINGPower Strapping allows the installer to Sync the input signal and output power to double the rated output of a mono amplifier which will drive a single subwoofer or group of subwoofers.Driving subwoofers with this method doubles the available power to the overall bass system, while insuring each subwoofer receives the exact same power level (output voltage)
Technical Details:HIFONICSBXX4000.1D BRUTUSClass:Super D ClassVariable voltage:9V - 0.2VSignal to noise ratio:>95dBFrequency response:10Hz - 250HzCrossover:ElectronicVariable low-pass crossover 12dB per Octave:35Hz - 250HzBass boost:0dB - 10dBSubsonic filter:15Hz - 35HzPhase shift:0° - 180°Power @ 1 Ohm:1 x 4000 WattsPower@ 2Ohms:1 x 2000 WattsPower@ 4Ohms:1 x 1000 WattsTotal channels:1Audio inputs:RCAAudio Outputs: 1 RCA outputMaster / 1 RCA input Slave/strapping:Mode SwitchMST/SLVPower terminal 12V/GND:0 AWGSpeaker terminal wire gauge:10 AWGFusing:External 275ATotal harmonic distortion (THD):<0.10%
Package Contents:1xHIFONICSBXX4000.1D BRUTUSManual1xHIFONICSBXX4000.1D BRUTUS
