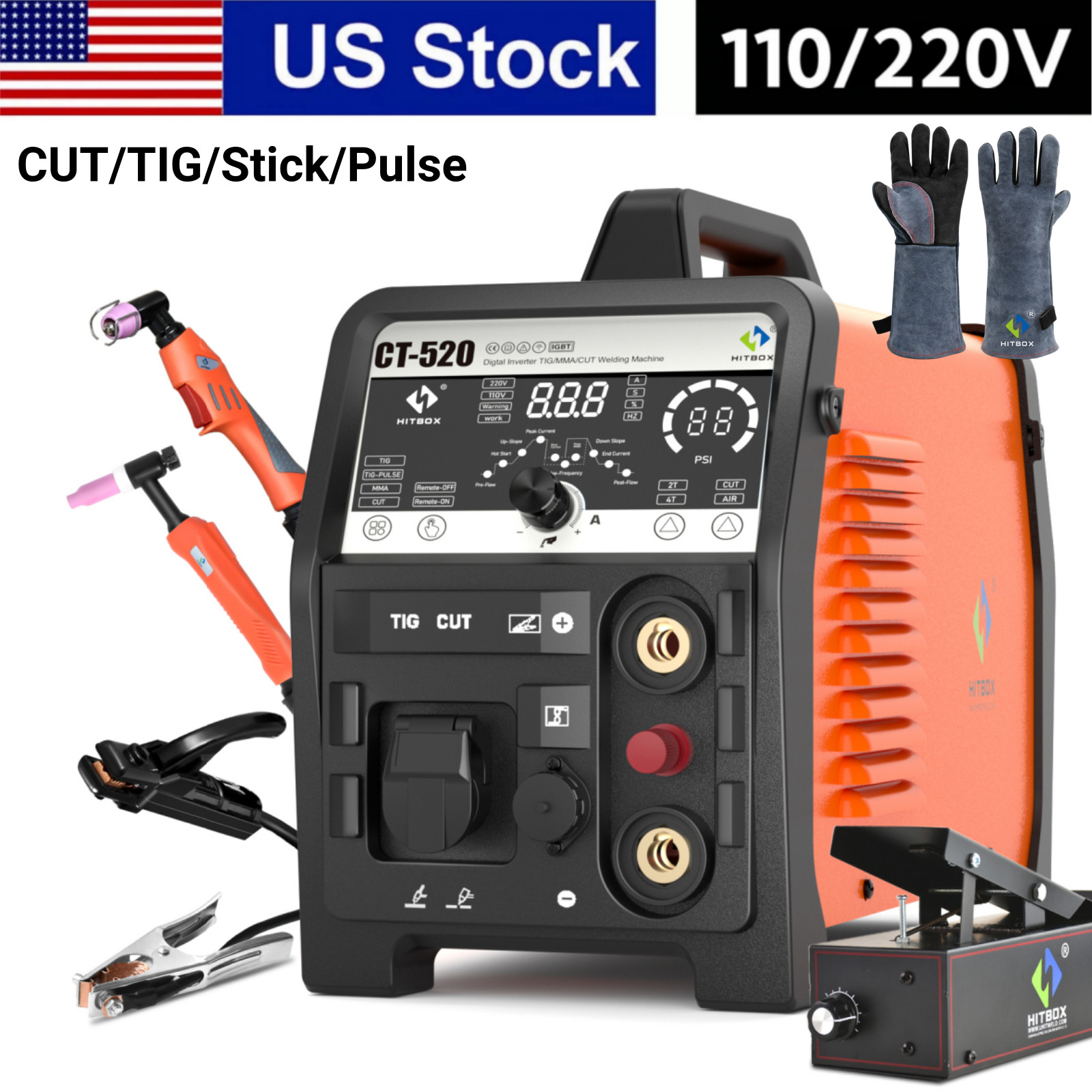

HITBOX 200A HF TIG/MMA/Pulse TIG Welder Air Plasma Cutter 110V/230V &Foot pedal For Sale

HITBOX CT-520 4IN1 Plasma Cutting & Welding Machine, 110V/220V Dual Voltage, 50A HF Non-Touch Pilot Arc Air Plasma Cutter/ 200A HF TIG/ Pulse TIG/ MMA & Remote Control Foot Pedal, IGBT Inverter & 2T/4T TIG Control, Ideal for hobbyists, repair shops, metal fabrication & DIY projects.Why you choose HITBOX CT520?The reason is:1. 4-in-1 Plasma cutter/welder combo: 110v/220v 10-50Amp High Frequency plasma cutter max ideal cut thickness: 1/2" ; Max Severance Thickness: 3/4"; 200Amp TIG Pulse Welding Equipment allows welding thinner metals and high heat conductive metals without burning through. 200amp stick/mma/arc electrode welder Efficiency: 80%. Real current extending the weld cable to 168 ft does not attenuate the current.2. Non-touch Pilot ARC Cutting: Incorporates non-touch pilot arc cutting processes, cutting effect is very ideal and can finish the work regardless if the material is very rough, rusty, greasy, dirty, spray painted, etc. Meanwhile longer consumable life.3. Foot pedal remote control: Synergic Control, Automatic change of the voltage & wire feeding speed by adjusting the amperage or choosing different thicknesses.Comes with foot remote control / proximity control with MMA, TIG welder can improve welding efficiency, reduce the hassle in pedal control current, and guarantee quality (suitable for cutting and welder). The current fast heating (hot boot), slowly down, is good for the formation of the welding pattern.4. Versatile welding, cutting machine: Cuts many metals including stainless steel, aluminum, titanium, cobalt, nickel alloys and cast iron. Includes soft-switching technology and full-bridge design for a longer life and stable arcs at low temperatures.5. IGBT inverter & 2T 4T Function: HITBOX CT520 inverter welder uses secondary inverter technology and pure square wave output, does not penetrate thin plate. Concentrated heat, strong reverse cleaning capacity, wide cleaning range, continuous arc. 2T(Manual) / 4T(Semi-auto) switch is available, you can release your finger for long time welding job when on 4T.6. 2 Year Warranty And Great After Sale Service: HITBOX offers a good warranty. We have professional technical team, If you meet any problem when using this machine, please feel freely to contact us.Product Features:* Multi-functions Welding & Cutting Machine with 2T/4T Function, CUT, HF TIG, Pulse TIG and Arc function.
* Air Compressor attched with the machine directly for better using experience.
* Pre and Post flow function for achive deep melting, fast welding with good effect, shaping well.
* With Foot PedalProduct Details:- Weight: 18.2KG (40.12LB)
- Size: 51.5*39.5*38cm(20.28*15.55*14.96in)
- Voltage: 110/220V
- 110V output current (actual): CUT 35A/ TIG 140A/ MMA 130A
- 220V output current (actual): CUT45A/ TIG 180A/ MMA 170A
- 110V display shows the number: CUT 50A/ TIG 200A/ MMA 200A
- 220V display shows the number: CUT 50A/ TIG 200A/ MMA 200A
- 220V recommended circuit breaker: 40A
- 110V recommended circuit breaker: 63A
- TIG function current: 220V 200A, 110V 120A
- ARC functional current: 220V 170A, 110V 120A
- TIG/ARC welding thickness: 10mm (0.393in)
- TIG/ ARCwelding materials: iron, stainless steel, galvanized sheet, carbon steel and other metals
- Cutting thickness: 0.3-20mm
- Cutting material: iron, stainless steel, copper, aluminum, galvanized sheet, aluminum, carbon steel
- Suggested air pressure 220V: 4.0KG
- Suggested air pressure 110V: 3.5KG
Package Include:1x HITBOX CT520 Welding Machine
1x Earth clamp1x Electrode holder
1x Cutting torch
1x TIG torch
1x Hose
2x Tube clamp
1x 110V to 220V Adapter
1x Pressure reducing valve1x Full set of consumables for plasma & TIG
1x Foot pedal1x User manual1x Welding Gloves
