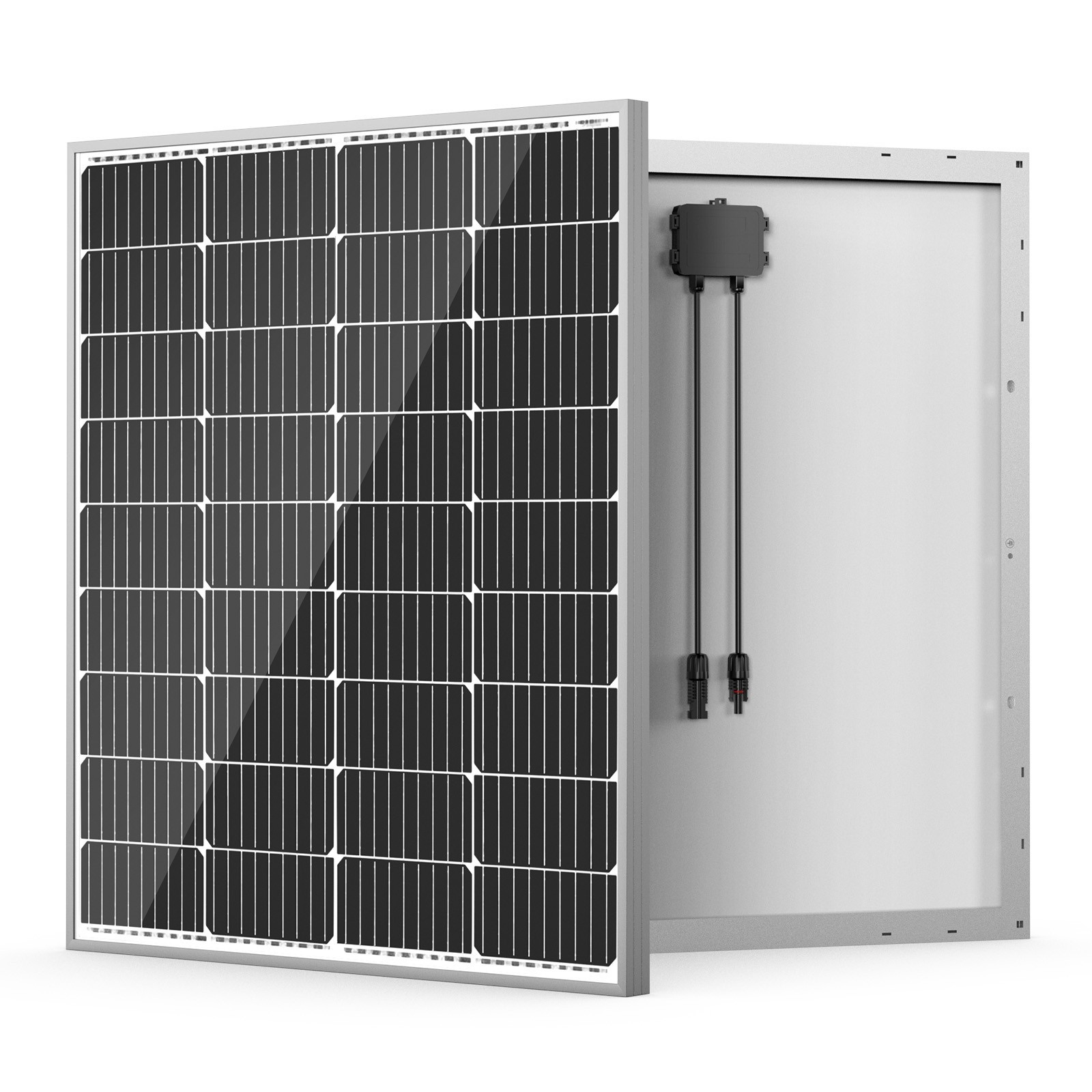

HQST 100W 12V Monocrystalline Solar Panel ☀️ HQST 100W 12V Monocrystalline Solar Panel
High Efficiency · Compact · Durable — Reliable Power for Off-Grid Applications
✦ Key Features 📐 Compact Size, Optimal Space Utilization
The HQST 100W solar panel features a square design, 31.8 x 27.5 x 1.18 inch, 11% smaller than traditional long panels, perfect for limited roof areas and confined spaces, maximizing power output within the available space.
⚡ Grade A+ Cells, Up to 23% High Conversion
The HQST 100W 12V monocrystalline solar panel features high-quality 166mm Grade A+ cells with 100% EL testing, ensuring zero cracks and up to 23% conversion rate, surpassing other traditional options.
🌧️ Built to Withstand All Weather
This solar panel withstands 2400Pa wind loads and 5400Pa snow loads, while the IP65-rated solar connectors and junction box provide robust protection against water splashes and rain. The anti-corrosion aluminum alloy frame ensures decades of reliable outdoor performance.
🔧 Fast and Easy Installation
The solar panel comes with pre-drilled holes on the back, facilitating fast and secure mounting, making it perfect for various off-grid applications such as RVs, camper vans, motorhomes, rooftops, cabins, yachts, and more. Additionally, it is directly compatible with HQST Z Brackets and Tilt Mounts (not included) for effortless installation.
🏆 Choose HQST\'s Solar Panels
Backed by a 5-year product assurance and boasting an impressive 80% output power retention even after 25 years of use, these HQST solar panels offer unparalleled reliability, making them the ideal choice for building or upgrading your solar power solution.
📋 Specifications Model ModelHSP100DL-36 Electrical Max Power at STC100W Open Circuit Voltage24.3 V Short Circuit Current5.21 A Optimum Operating Voltage20.4 V Optimum Operating Current4.91 A Cell EfficiencyUp to 23% Maximum System Voltage600 VDC UL Maximum Series Fuse Rating15 A Mechanical Cell TypeMonocrystalline Dimensions31.8 x 27.5 x 1.18 in / 807 x 699 x 30 mm Weight14.3 lbs / 6.5 kg Front GlassLow Iron-Tempered Glass FrameAnti-Corrosion Aluminium Alloy ConnectorsMC4 Solar Connectors Fire RatingClass C Thermal Characteristics Temperature Coefficient of Pmax-0.37%/℃ Temperature Coefficient of Voc-0.28%/℃ Temperature Coefficient of Isc0.048%/℃ MC4 Solar Connectors IP RatingIP65 Junction Box IP RatingIP65 Output Cables14 AWG (1.97 ft length) 🖼️ Product Gallery ❓ Frequently Asked Questions Q: How many kWh a day does this solar panel produce? A: If your solar panels are exposed to 5 hours of direct sunlight per day, it can provide 500 Watt-hours (0.5 kWh) of electricity (depending on sun availability). Note: Actual output varies with sunlight intensity, angle, temperature, and system efficiency. Q: How should I connect solar panels to my electrical circuit (series vs parallel)? A: Solar panels can be connected in either series or parallel to match your electrical circuit size and power requirements. It\'s recommended to connect panels with the same open-circuit voltage.
When connected in series, the voltage (V) accumulates, while the current (A) remains consistent.
Conversely, connecting panels in parallel results in an accumulation of current (A), with voltage (V) staying constant. Note: Always ensure your charge controller and wiring are rated for the combined voltage/current. Q: Do these panels have pre-drilled holes on the back? A: Yes, they have. The pre-drilled holes help you to install the solar panel quickly and securely. Q: Can this solar panel be adapted to a 12V Marine Battery or 48V Lithium Battery? A: Yes, it can. The optimum operating voltage of this 100W solar panel is 20.4 V. So it\'s suitable to use for charging your 12V Marine Battery. As for a 48V Lithium Battery, you need to connect at least three solar panels in series.
Please note that you need to connect the solar panel(s) to a Charge Controller supporting a 12V or 48V system. Q: What do I need to have to complete my off-grid solar power system? A: Here\'s a list of all the equipment required for a functioning off-grid solar system:
Solar Panels, Solar Charge Controller, Inverter(s), Battery, Mounting and Racking System, Wiring Cables, and Fuses. HQST® — Reliable Solar Solutions · 5-Year Product Warranty · 80% Output after 25 Years
