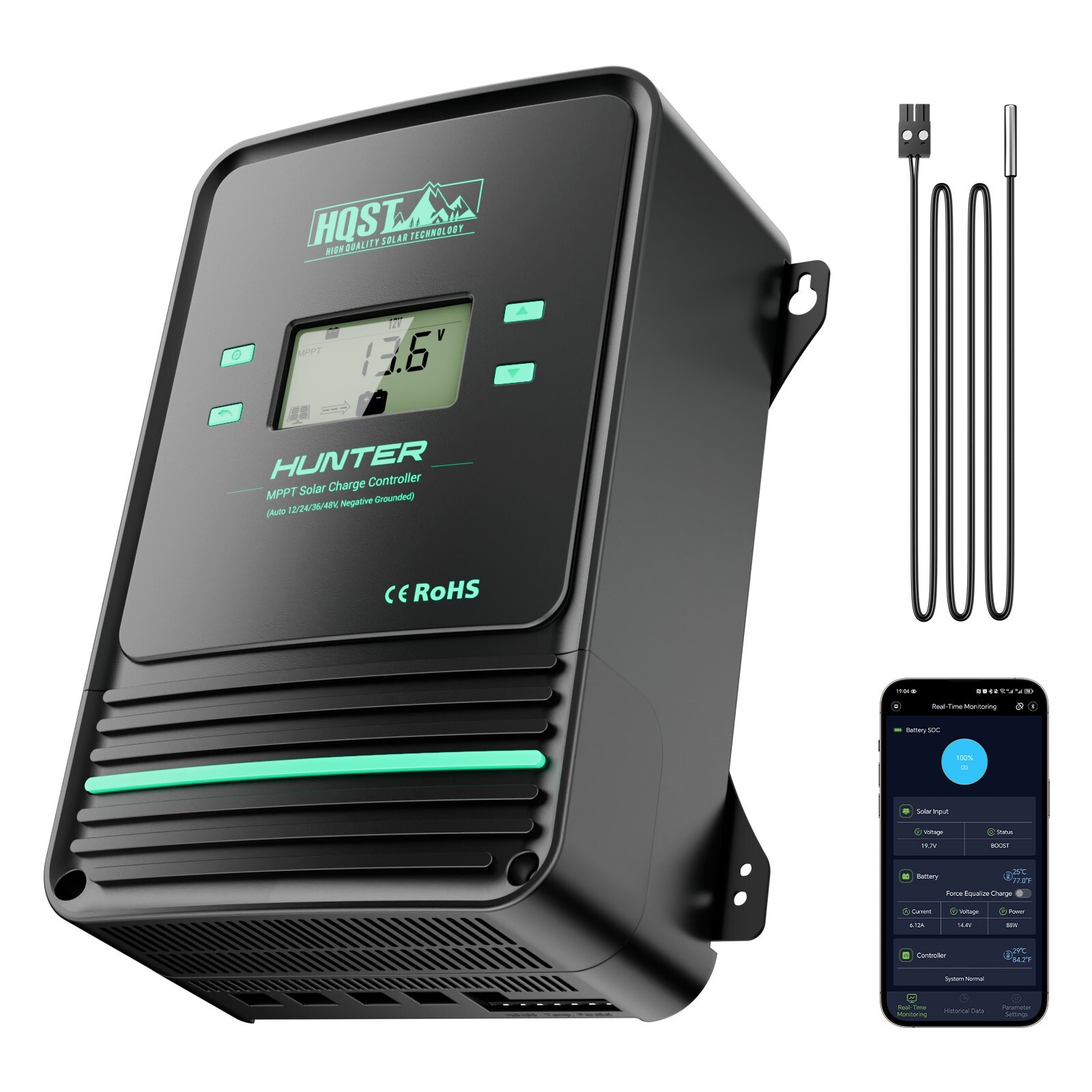

HQST 12V/24V/36V/48V 100A MPPT Solar Charge Controller with Smart APP Control For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
HQST 12V/24V/36V/48V 100A MPPT Solar Charge Controller with Smart APP Control:
$180.49
HQST 100 Amp MPPT Solar Charge Controller, 12V/24V/36V/48V Negative Grounding Controller, w/ Smart Bluetooth APP Control, Low-Temp Cut-Off, LCD Display, for Lithium, Sealed, AGM, GEL, Flooded Batteries Our new 100 Amp MPPT solar charge controller offers high tracking efficiency of up to 99% and a peak conversion efficiency of 98.7%, about 30% higher than PWM. With Bluetooth app control, you can monitor all data in real-time. It also features low-temperature cut-off protection for LiFePO4 batteries, preventing damage to your valuable batteries. Ten protection mechanisms and an active cooling fan system ensure consistent efficiency at all times. Perfect for all off-grid applications, including RVs, cabins, motorhomes, and APP Control & LCD Display】 With a built-in Bluetooth module, you can download the \"\"ChargePro 2.0\"\" (new version) or \"\"PVChargePro\"\" (old version) app for real-time monitoring, which stores 300 days of historical data. The LCD screen and buttons on the machine allow you to check device operating data and modify controller parameters. Note: Bluetooth connection is effective within a 10m/33ft range (in an unobstructed area).
【Low-Temp Cut-Off Protection for LiFePO4】This HQST 100A MPPT solar charge controller features low-temp charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries, preventing damage to your valuable batteries. You can manually switch on and off this function. This controller can also activate dormant LiFePO4 batteries that have turned off due to High-Efficiency Charging】The HQST 100A MPPT charge controller uses advanced MPPT technology, achieving a high tracking efficiency of up to 99% and a peak conversion efficiency of 98.7%, which is about 30% higher than PWM. This maximizes energy from your solar panels to charge your system. It supports 12V, 24V, 36V, and 48V battery systems and is compatible with lithium iron phosphate (LiFePO4), sealed, AGM, GEL, flooded, and user-customized battery types.【Parallel Charge Extension Function】To increase the charging current for your single battery bank system, you don’t need to reinstall the entire solar panel system. You can connect up to 9 of our MPPT controllers (M4880F/M48100F models) together using parallel charge cables (not included) to charge the same battery pack, meeting high power charging requirements. Ensure all controllers are set to the same battery voltage.【Active Cooling Fan System & Comprehensive Safety Protection】 Two built-in fans start cooling automatically when the charge controller runs at high power or exceeds 113℉, ensuring consistent efficiency. Our negative grounding controller offers 10 protections against overcharging, over-voltage, over-current, overheating, and reverse polarity, maximizing protection against system faults and installation FeaturesPackage Includes● 1 x 100A MPPT Solar Charge Controller
● 1 x User Manual
● 1 x Temperature Sensor Cable (6.6 ft)
● 1 x Mounting Stickers (for Temp Sensor) Specifications100A MPPT Solar Charge Controller with Smart APP Control, LiFePO4 Battery Low Temp Protection, and Parallel ChargingTechnical SpecificationsModel
HCC100HTR-FC
Rated Solar Charge Current 100A Solar (PV) Input Voltage
150 Voc Max.
Solar (PV) Input Power
1500W/12V; 3000W/24V; 4500W/36V; 6000W/48V
Battery System Voltage
12V/24V/36V/48V
Battery Types
Auto-detected: Flooded (FLD), GEL, Sealed, AGM;Manual Setting: Lithium Iron Phosphate (LiFePO4), User-customized
Tracking Efficiency
99%
Peak Conversion Loss
12mA (12V), 10mA (24V), 8mA (36V), 6mA (48V)
System Wiring Grounding
Negative Grounding
Operating Temperature
-13°F～113°F (-25℃~45℃)Fan-on Temperature
Exceeds 113°F (45℃)Storage Temperature
-40°F～176°F (-40℃~80℃)Operating Altitude
Below S3000 MetersIP Protection
IP32Parallel Charging Function
Support Parallel Connection, Up to 9 UnitsCommunication Port
RS485 (RJ12)Protections
PV over-voltage protection, PV reverse protection, PV over-current protection, Battery over-voltage protection, Battery over-charge protection, Battery reverse protection, Battery over-current protection, Overheating protection, High ambient temp protection (149°F/65℃), Low temp cut-off protection for Li batteriesWiring Cable
2 AWG (Recommended) Product Weight
5.7 lbs (2.6 kg)Product Dimensions7.9 x 3.7 x 10 in / 200 x 260 x 93 mm (L x W x H)
Package Weight
6.6 lbs (3 kg)Package Weight
12.12 x 10.07 x 5.55 in / 308 x 256 x 141 mmWarranty
1-year material warranty
|
|
