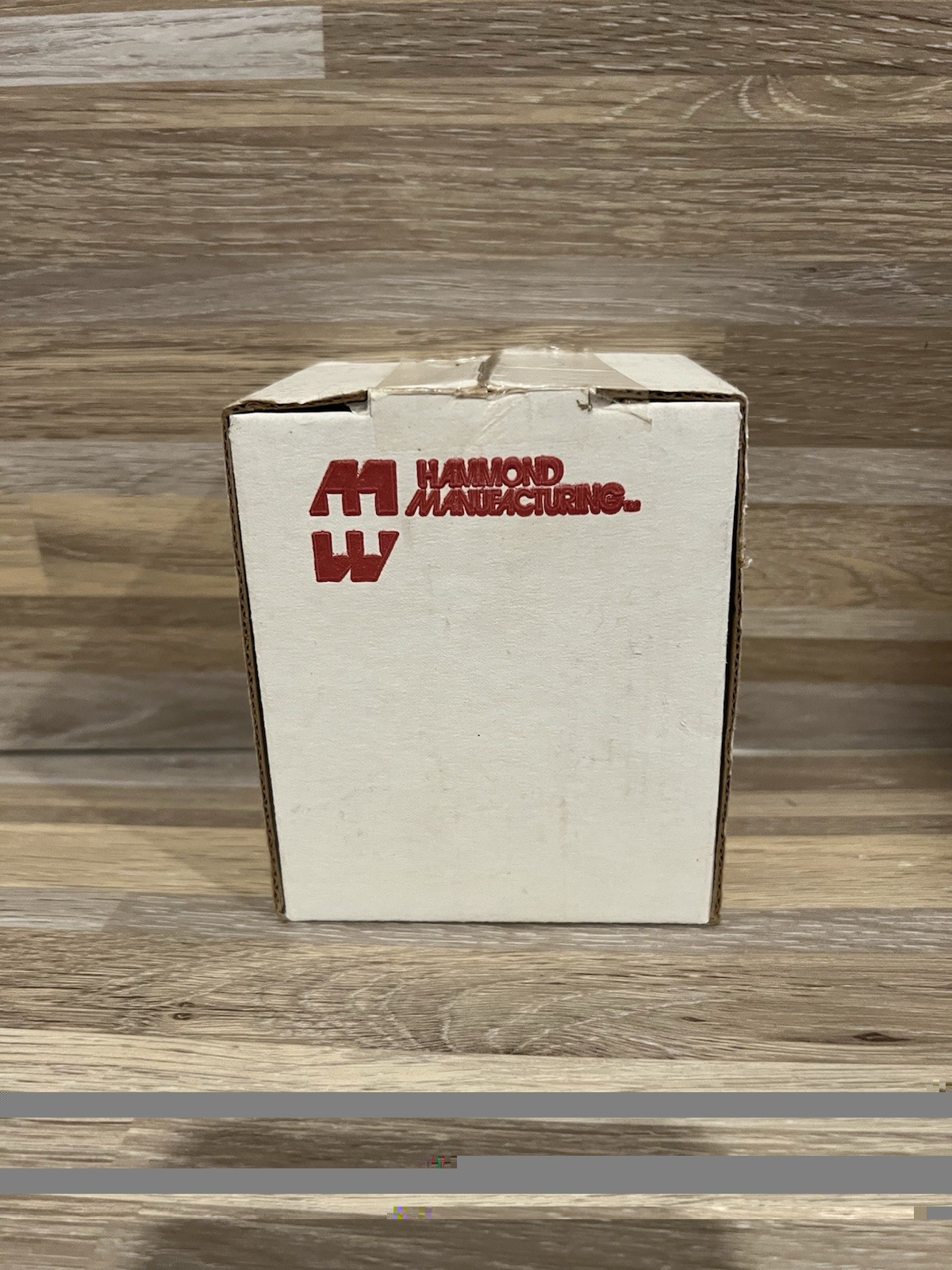

The Hammond 270CX Transformer is a power transformer manufactured by the brand Hammond. This transformer is designed to efficiently convert electrical power from one level to another, making it an essential component for a variety of industrial and commercial applications. With its high-quality construction and reliable performance, the Hammond 270CX Transformer is a trusted choice for those in need of a dependable power transformation solution. Brand new purchased
Electrical Specifications
• Power Rating: 59 VA
• Primary Voltage: 115 VAC @ 60 Hz
• High-Voltage Secondary: 550V Center-Tapped (C.T.) @ 75 mA
• Filament Secondary #1: 6.3V @ 0.6A
• Filament Secondary #2: 6.3V @ 2.5A
• Isolation Voltage: 2,000V RMS (Hi-Pot tested)
Physical Specifications
• Mounting Type: Vertical Chassis Mount (Style "X")
• Termination: Wire leads (minimum 6" length)
• Weight: 2.4 lbs (1.09 kg)
• Dimensions: * Length: 2.50" (63.50 mm)
• Width: 2.75" (69.85 mm)
• Height: 3.06" (77.72 mm)
• Mounting Hole Centers: 2.00"
Environmental & Safety
• Insulation: Class A (Rated up to 105°C)
• Operating Temperature: 0°C to +105°C
• Compliance: CSA certified (209651), RoHS, and REACH compliant.
