Discover the Heidenhain ERN 1123 Incremental Rotary Encoder (Model: 684702-02), an essential component for precision applications. This high-quality encoder operates with a robust power supply of 5V and features a max scanning frequency of 300 kHz, ensuring reliable performance. With 8192 signal periods, the encoder delivers exceptional accuracy. The hollow through shaft, diameter 8 mm, is designed for stator coupling, providing easy installation. Operating within a temperature range of -20/+90 °C and boasting a degree of protection IP00, this encoder is built to last. Perfect for servo drives & amplifiers. offer now and elevate your project!

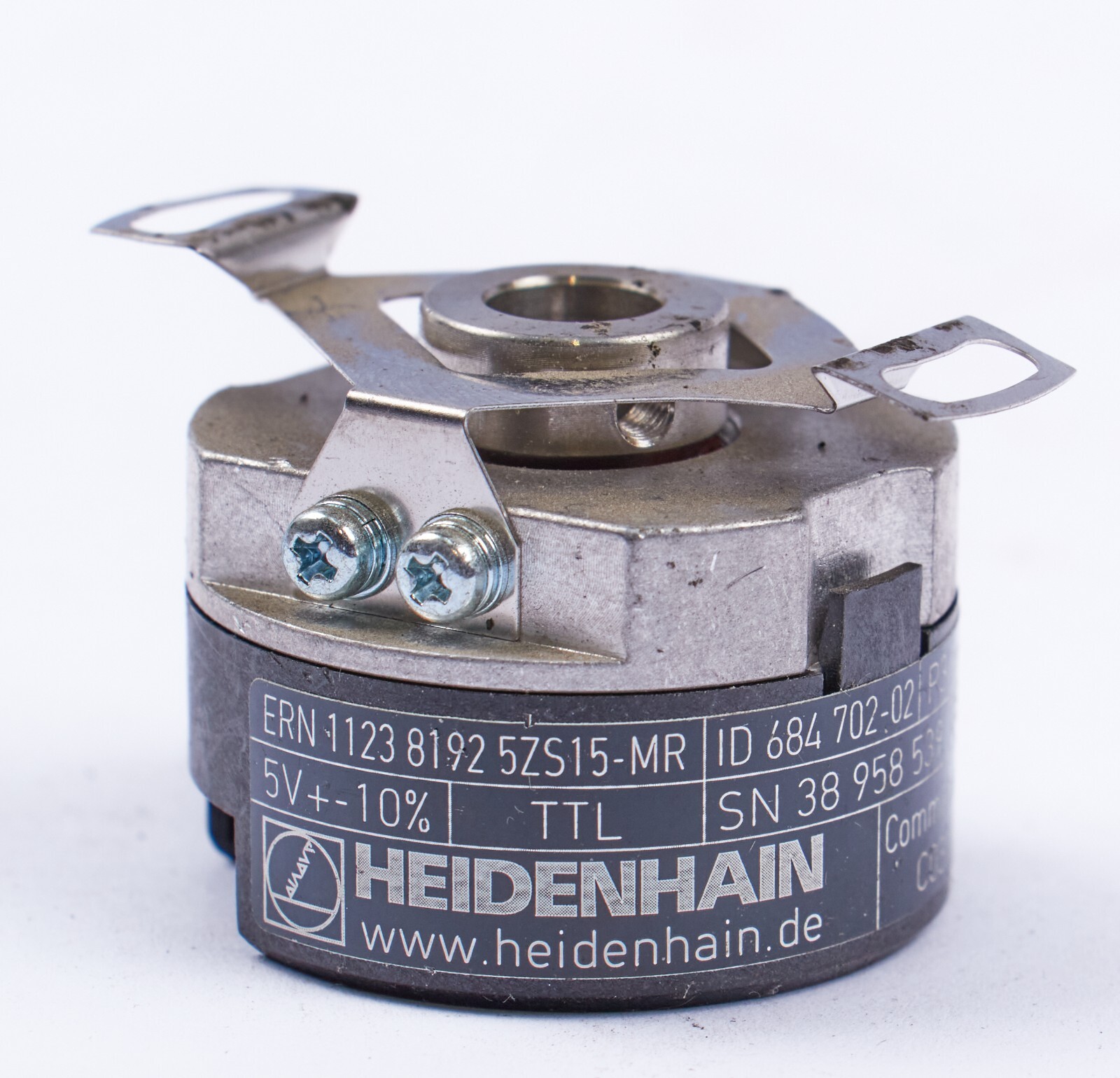

Heidenhain ERN 1123 Incremental rotary encoder 684702-02
Description
Excellent Condition Surplus
What\'s Included:
1x Heidenhain ERN 1123 Incremental rotary encoder 684702-02
Does not include any additional cables, parts, or accessories. Specifications:
Identnumber684702-02Number of signal periods8192Commutation signalC03 Reference markRV Output signalTTLMax. scanning frequency300.00 kHzPower supply5 V (+-10 %)Coupling versionStator coupling for plane surface (hole circle Ø 40 mm)ShaftHollow through shaft with radial fastening, diameter 8 mmDegree of protectionIP00 (EN60529)Operating temperature-20/+90 °CElectrical connectionBent plug connector, double-row, 15-pinPin configurationD726667Connecting directionradial
