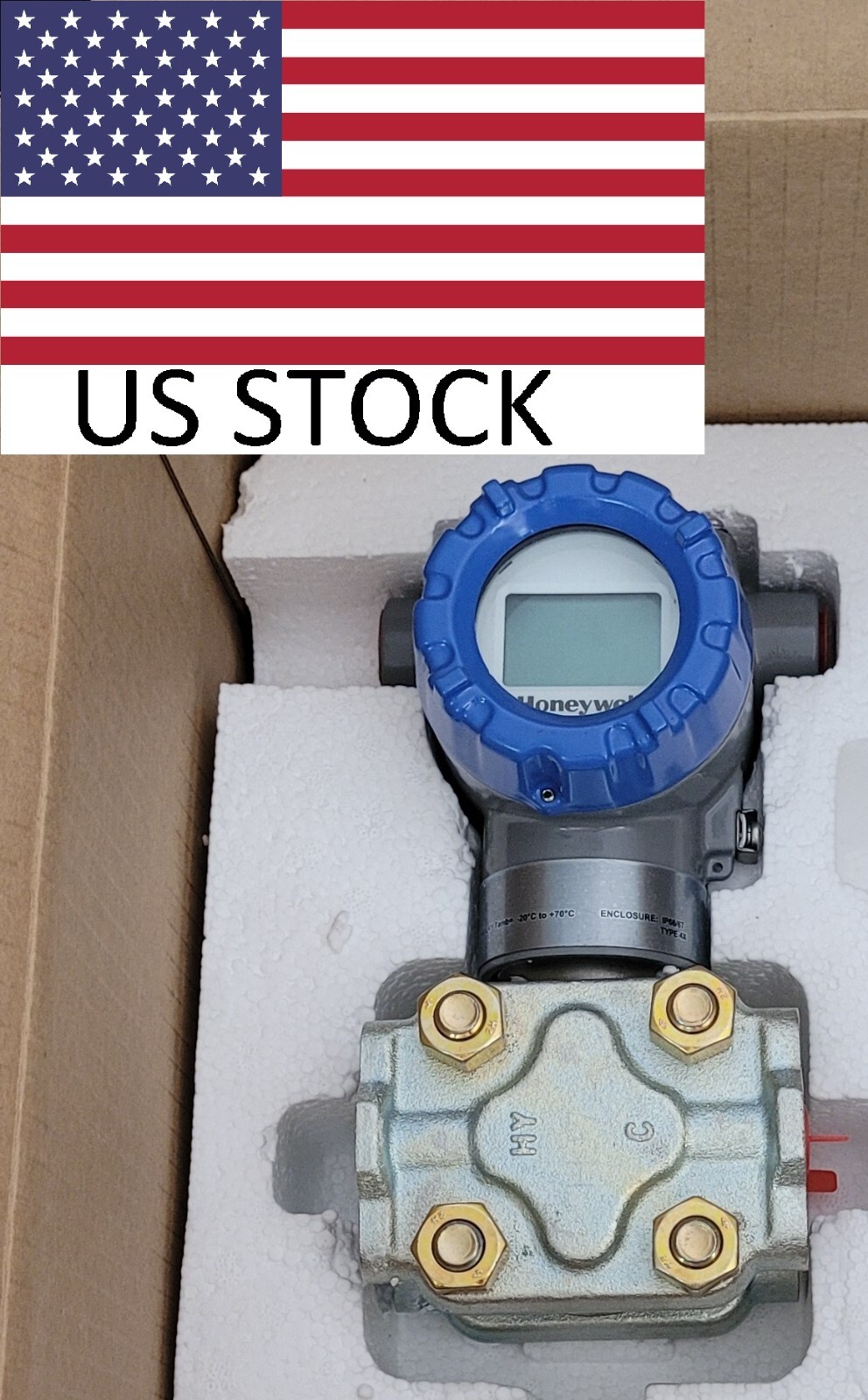

Honeywell Modbus Multivariable Transmitter SMG870 Series
Stocked in the US of A!
The SMV800 (SMG870) combines sensor technologies for differential pressure, static pressure and temperature with the latest microprocessor technology to provide highly accurate data for measured variables, compensated flow and totalization over multiple communication protocols. When paired with the other SmartLine unique features the SMV 800 delivers the highest levels of safety, reliability and efficiency available resulting into reduced project costs and start-up time while improving the productivity. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities.
Specs for this particular unit:
Temperature: Single Input - RTD (2/3/4 Wire)
Digital Output: No Outputs
Process Wetted Heads & Diaphragm Materials: 316L Stainless Steel
Fill Fluid: Silicone Oil 200
Process Connection: None (1/4" NPTF female thread Std)
Bolt/Nut Materials: Carbon Steel
Vent/Drain Type/Location: Head type; Single Ended, Vent/Drain Location; None, Vent Material; None
Gasket Material: Teflon® or PTFE (Glass Filled)
Head/Connect Orientation: Standard; High Side Left, Low Side Right2 / Std Head Orientation
Approvals: No Approvals
Elec Housing Mat Conn Type: Material; Polyester Powder Coated Aluminum, Connection; 1/2 NPT, Lighting Protection; None
Output Protocol: Analog Output; N/A, Digital Protocol; Modbus Protocol (RS485) - Fully Compensated Flow
Customer Interface Selections: Indicator; Advanced, Ext Zero, Span & Config Buttons; None, Languages; EN,DE,FR,IT,ES,RU,TU
Application Software: Standard Diagnostics
O/P LMT Fail and Protect Sett: Write Protect; Disabled, Fail Mode; N/A, AC Termination; Disabled, High & Low Output Limits; Modbus
General Configuration: Factory Standard
Accuracy and Calibration: Accuracy; Standard, Calibrated Range; PV1,PV2&PV3 Factory Std, # of Calibrations; PV1,PV2&PV3 Single Calibration
Mounting Bracket: None
Customer Tag Type: None
Unassembled Conduit Adapters: No Conduit Plugs or Adapters Required
