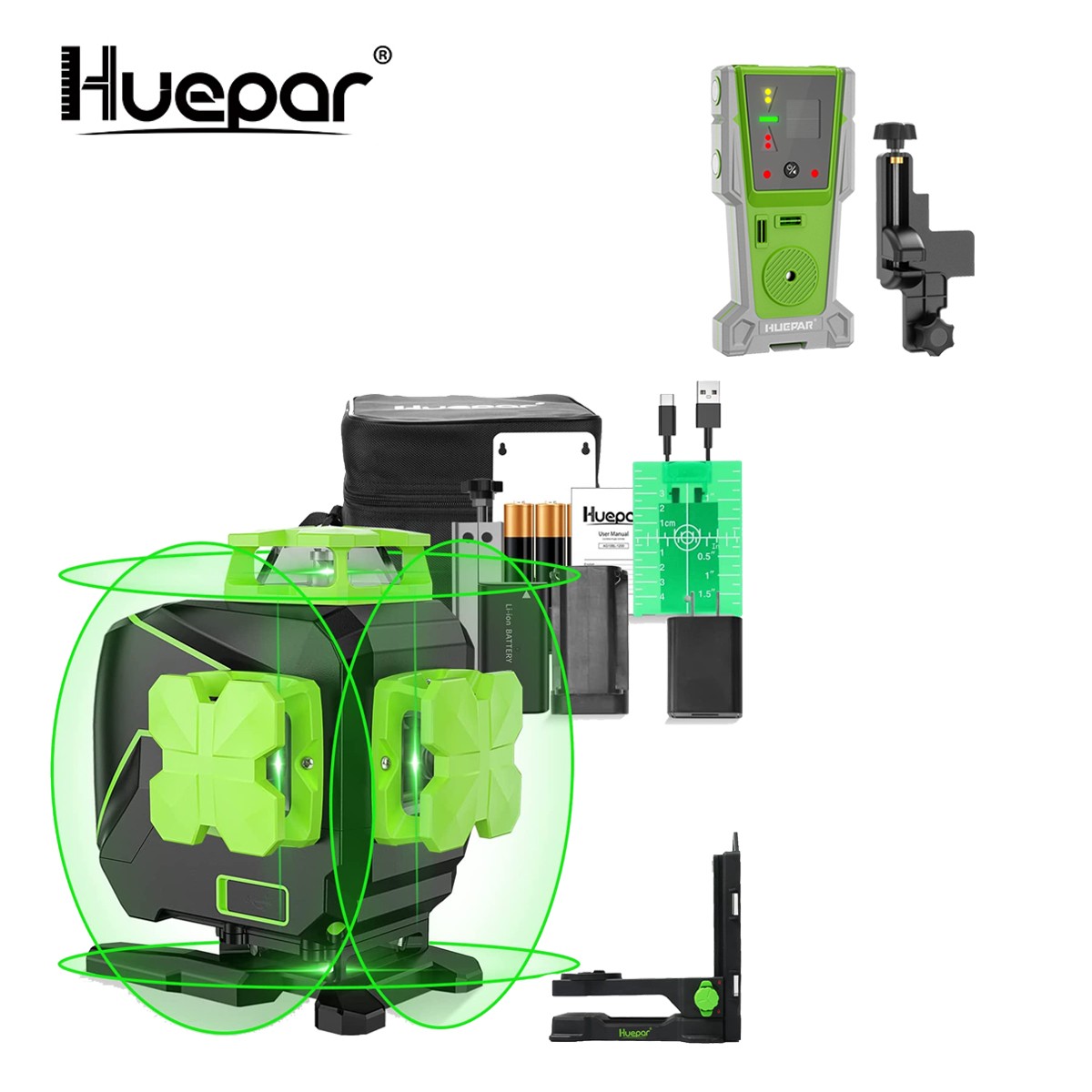

Huepar 16 Lines 360 Green Beam Cross Line Self Leveling Laser + Receiver LR-8RG For Sale

S04CG-L 4 x 360° Green Beam Floor Laser Level Specifications:

● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

● Leveling/Compensation Range: ±3.5°

● This laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation.

● Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.

● Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

● The four laser lines can be selected individually depends on job site applications.

● Huepar S04CG-L laser level is a complete tool to cover the floor, wall, ceiling all around the room.

Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

When the pendulum is in the locked position, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.

● Huepar S04CG-L floor laser tool generates one 360°horizontal tiling laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.

● With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height.

● The laser tool is covered by TPR soft rubber, which delivers soft touch and stronger protection.

● IP54 water/dust resistance ensures you work well in hazardous working conditions.

● This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.

● The 16 lines laser level is a great tool for both indoor and outdoor job sites.

Huepar S04CG-L 4D Green Laser Level provides an all-in-one level and alignment solution for one-person job setup.

This 360° cross line laser tool is ideal for paving floor tiles, installing ceilings, door, window, or furniture carpentry, hanging wallpaper, etc.

The self-leveling laser tool enables complete coverage of the entire room.

● After power on, short press the power button to switch ON/OFF the pulse mode.

● Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.

● It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.

Note: Keep the pulse mode on when using with a receiver.

● This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.

● Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.

● The 16 lines laser level can be used at the work site by plugged in directly when taking out the battery.

● With Type-C charging port, the laser level can also be charged by laptop, power bank, car charger, etc.

● 1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.

● 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.

● Green Laser Target Plate: Increases the visibility of the laser beam.

Move the Detector as the Direction Shown

• Datum Lower than Laser Beam – Move Up
• Datum Higher than Laser Beam – Move Down
• When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

• LR-8RG laser detector comes with a compatible rod mounting bracket.
• The built-in bubble level provides an extra measure of leveling accuracy.

• Sunlight often makes it difficult to see the laser beams. While a laser detector can help you find out the lines.
• And two-sided display on the front and back of this laser receiver makes it easier to get the position.
