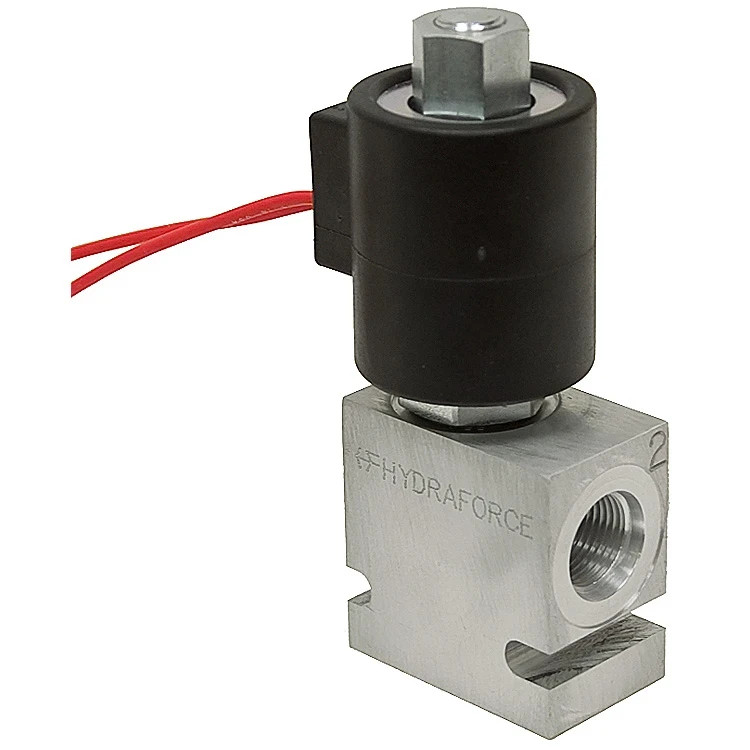

HydraForce SV10-23-6T-N-12DL - 12 volt normally open poppet type Hydraulic Valve:
$102.30
The HydraForce SV10-23-6T-N-12DL is a complete 12V DC assembly featuring an SAE 6 aluminum manifold block combined with a 2-way, normally open, poppet-type hydraulic cartridge valve. This specific configuration features Buna-N seals and a dual lead-wire coil tThe complete assembly consists of three independently serviceable component parts: [1]
- Cartridge Valve: HydraForce SV10-23-0-N-00
- 12V DC Solenoid Coil: HydraForce 6352012 (or alternative 10-size dual lead 12V coils)
- Manifold Port Body: HydraForce 7024280 (Aluminum 2-Way body with SAE 6 porting) [1, 2, 4]
ermination. It is optimized for structural load-holding or hydraulic isolation circuits up to 3,000 PSI and 15 GPM max flow.
