Port Sizes: PT: 7/8" NPT, AB: 3/4" NPT, Port C: 7/8" Hydraulic Directional Control Valve W/Joystick 21GPM 2 Spool+Conversion Plug Feature：
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 21 GPM (80 l/min)
A & B Work Ports: #10 SAE O-Ring (7/8”-14) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #12 SAE O-Ring (1-1/16”) Thread
3 – 5/16” Mounting Holes
Port Sizes: PT: 7/8" NPT, AB: 3/4" NPT, Port C: 7/8" NPT
Description：
2 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow) - closed center option available
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of Closed Center or Power Beyond (conversion plug required)
Vertical or horizontal handle mount
Adjustable Relief Valve Range: 1500 to 3625 PSI
Used as motor or single-acting spool possible (#10 SAE port plug required)
This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
Package List:

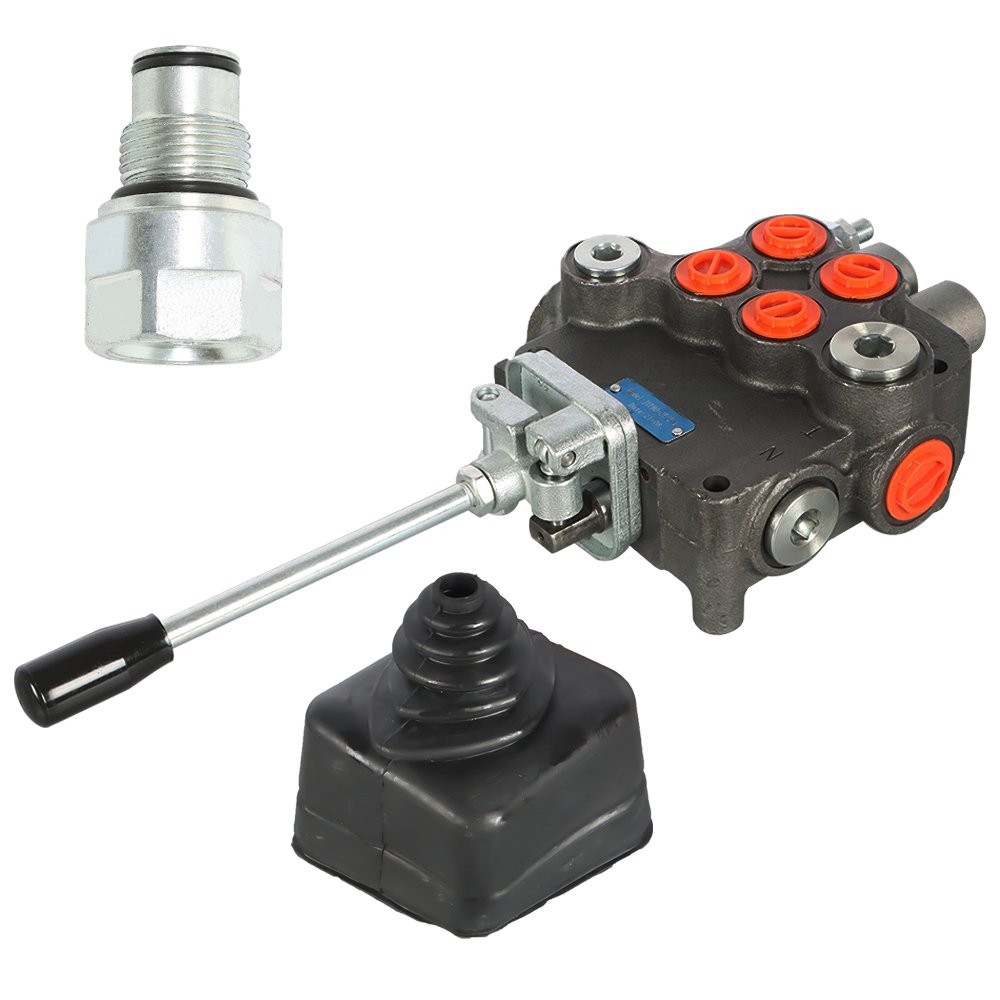

21GPM 2 Spool Hydraulic Directional Control Valve for Tractor Loader w/Joystick With conversion plug required
Notes:
Pls check your old picture or model when you order it.
If you are uncertain about the item,please feel free to contact us for confirm.
Sorry for any inconvenience caused.
Full refund guarantee if does not fit.
Thank you for your understanding
Item SpecificsCountry of Origin United StatesBrand findmallMPN IN1745874ALType Control ValvesQuantity 1 PCMaterial cast ironSpecification NOValve Operation ManuaMaximum Flow Rate 21 gpmSpool Count 2-SpoolWarranty 1 YearCapable of Closed Center or Power Beyond With conversion plug required
