Excellent for foundation work.
Same specs as:
SPX Power Team 9644
BVA MFC4

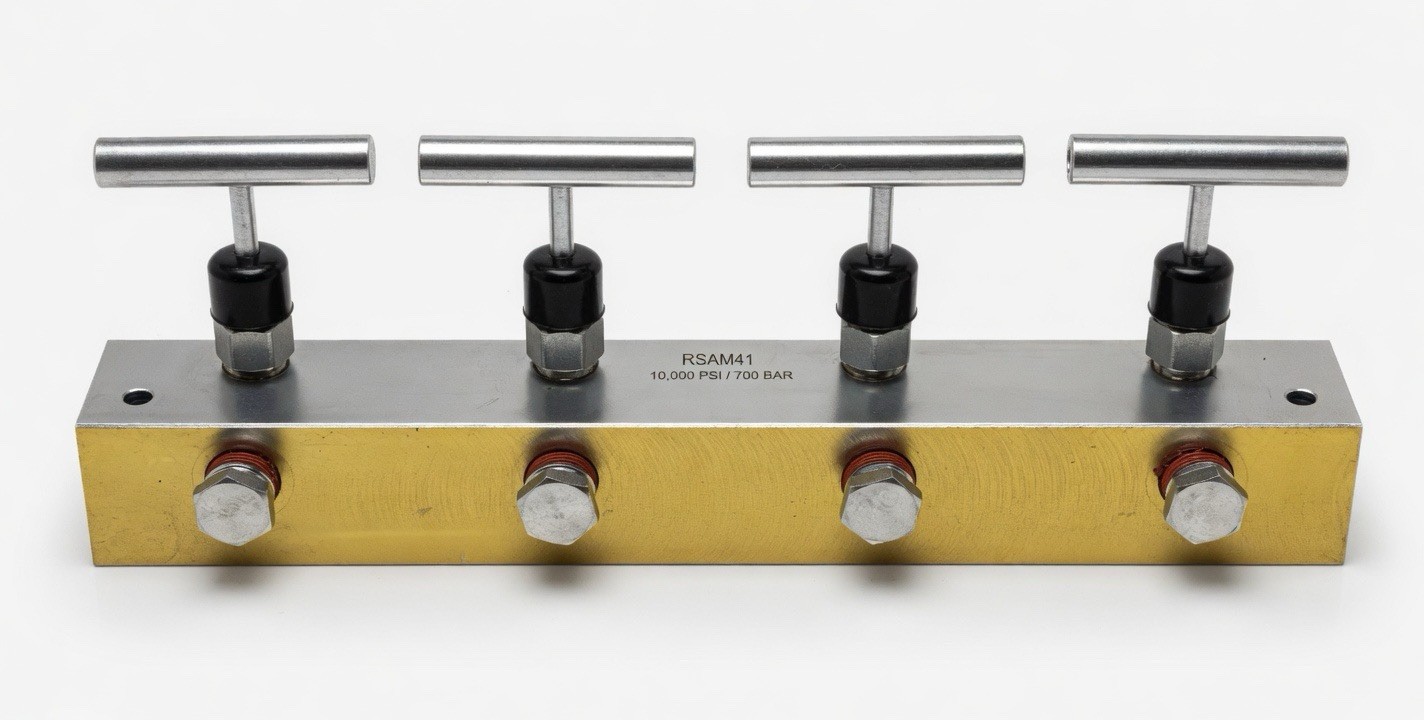

Split-flow hydraulic manifold with 4 independent needle valves.
Dimensions
Overall Height 4.17 in
Overall Length 11.96 in
Overall Width 1.61 in
Port Size - Hydraulic Valves 3/8 in NPT
Length (In.) 12
Port Connection Size 3/8 in
Port Connection Dash Size 18
Details
Item Manifold
Body Material Steel
Series RSAM
Number of Stations 4
Body Material - Hydraulic Valves Steel
Max. Pressure - Hydraulic Valves 10,000 psi
Actuation Mechanism Manual
Pressure - Maximum 10,000 psi
Number of Outlet Ports 4
Number of Inlet Ports 1
Port Connection Gender Female
For Media Oil
Port Connection Type NPT
Description
Manifold, Body Material Steel, Overall Height 4.17 in, Overall Length 11.96 in, NFPA Size Not Applicable, Overall Width 1.61 in, Pressure - Maximum 10,000 psi, Port Connection Gender Female, Port Connection Size 3/8 in, Port Connection Type NPT, Number of Inlet Ports 1, Port Connection Dash Size 18, Number of Outlet Ports 4, Series RSAM, Actuation Mechanism Manual, For Media Oil
