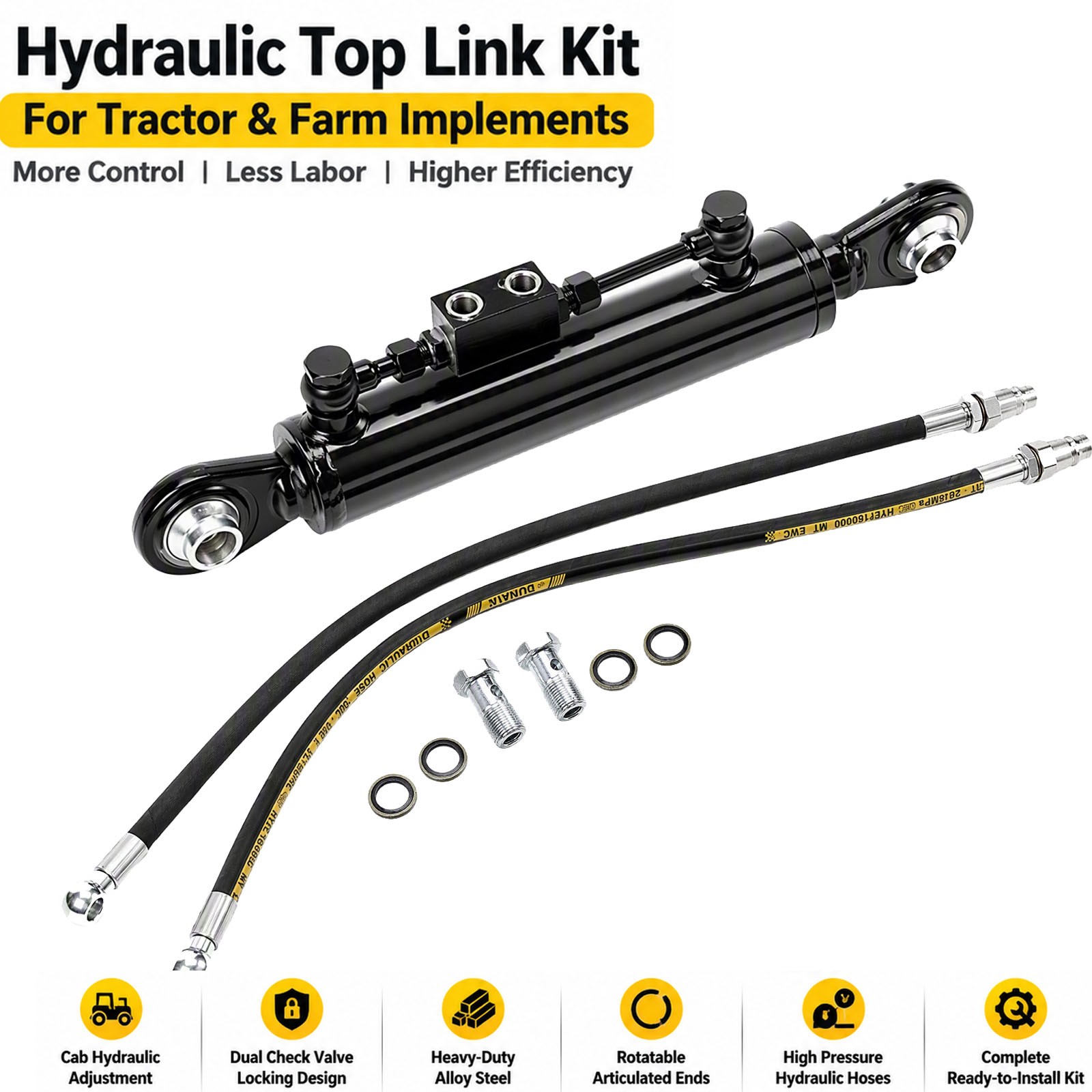

Hydraulic Top Link Cat.2-2 19 11/16”-28” Adjustable with 2x Hoses for Tractor For Sale

Hydraulic Top Link Cat.2-2 19-11/16" Stroke with 2 Hydraulic Hoses Tractor 3 Point Hitch About the item This Cat.2-2 hydraulic top link upgrades your tractor 3-point hitch system, replacing manual top links and letting you adjust implement angles directly from the cab. Built with heavy-duty alloy steel and high-pressure hydraulic hoses, this hydraulic cylinder delivers stable push & pull force for tough farm field work. Features

• Cab Hydraulic Adjustment Saves Labor: Adjust working angle of farm implements without stepping off the tractor, cuts downtime during plowing, grading and hauling tasks for higher field efficiency.
• Dual Check Valve Locking Design: Built-in offerirectional check valve locks cylinder position, holds heavy loads steadily and prevents unexpected retraction or oil backflow during transport and field operation.
• Heavy-Duty Alloy Steel Construction: Made of sturdy alloy steel with anti-rust coating, withstands mud, rain and heavy farm loads, resists deformation and corrosion for long service life in harsh outdoor conditions.
• Rotatable Articulated Ends for Easy Fitting: Four-way rotating eye ends accommodate different installation angles, simplifies mounting to tractor three-point hitch and reduces binding stress during movement.
• High Pressure Resistant Hydraulic Hoses: Supplied with two 1-layer steel braided hydraulic hoses rated up to 25.6MPa, stable pressure performance and good resistance to oil and abrasion for reliable fluid transfer.
• Complete Ready-to-Install Kit: Comes fully assembled with hydraulic top link and matching hydraulic hoses, no extra hose purchase required, quick setup for tractor maintenance and farm upgrades.

Specification Parameter Specification Product Type Cat.2-2 Hydraulic Top Link / Hydraulic Cylinder Hitch Standard Category 2 both ends (Cat.2-2) Stroke / Center Distance 19-11/16" (500mm) hole center distance Cylinder Dimension 57.3*15*7cm; Barrel OD 2-1/2", Max OD 5-3/16" Eye Inner Diameter 1 inch (25.4 mm) Hose Spec 10mm inner, 1-layer steel braided, 25.6MPa; total length 76.2cm Quick Connector SOA ISO A PF female quick coupler, 1/2" nominal size Material Alloy Steel + ABS Plastic Max Working Pressure 20MPa push /18MPa pull, 4 Ton push force, 2.5 Ton pull force Package List 1 × Hydraulic Top Link, 2 × Hydraulic Hoses Application Scenarios Perfect upgrade for tractors with Cat 2 three-point hitch. Suitable for plowing, land grading, hay handling, material transport and other farm jobs. Ideal for small family farms, hobby farmers and agricultural maintenance shops.
