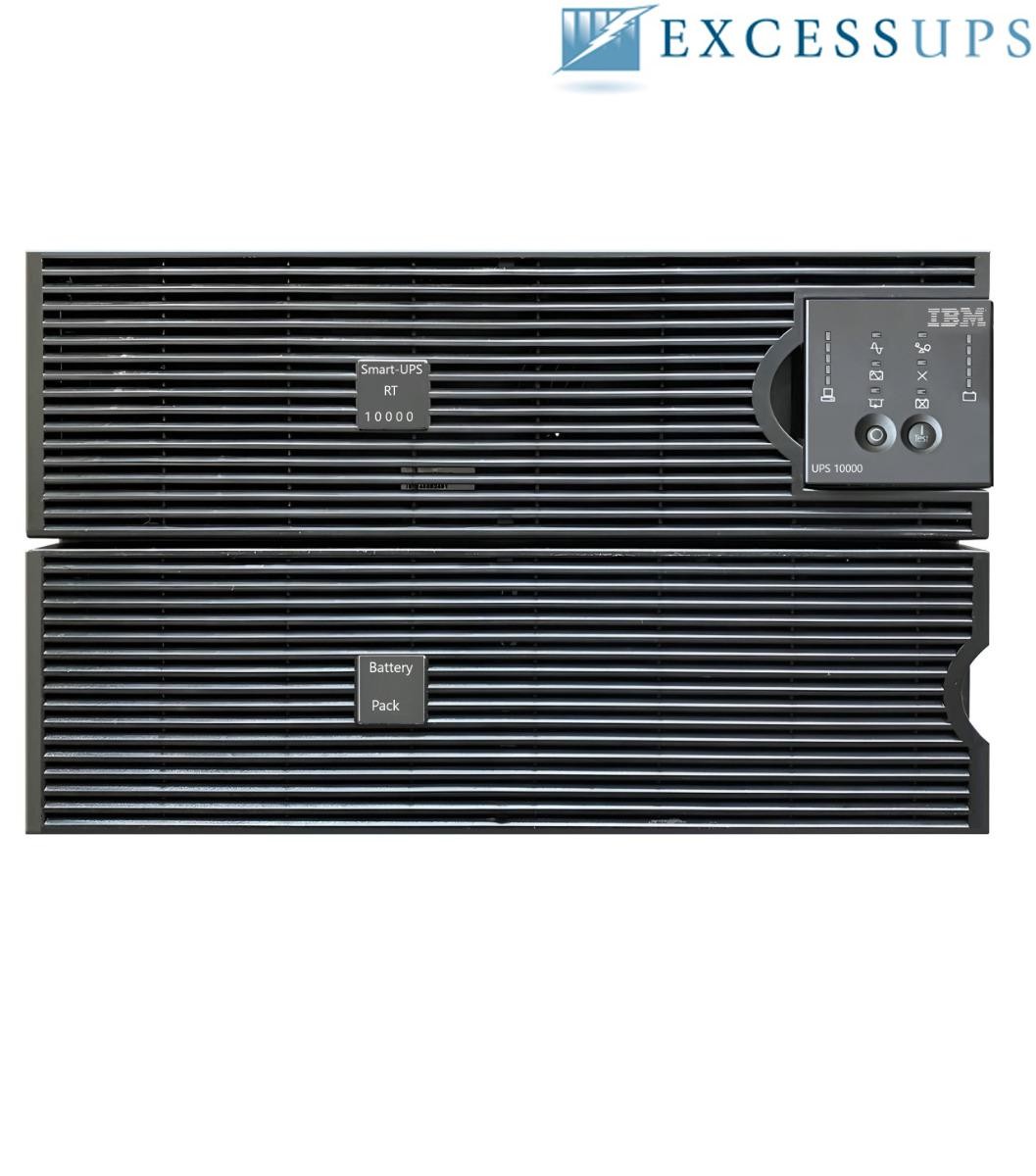

Manufacturer: IBMModel: IBMR10000RTH6UCondition: New Batteries, Refurbished UPSPart Number: 25R5590Maximum output: 8000W / 10000VATypical backup time at half load: 1.36 minutes (4000 Watts, with internal batteries only)Typical backup time at full load: 0.67 minutes (8000 Watts, with internal batteries only)Warranty: 1 year full replacement warranty
The IBMR10000RTH6U comes refurbished with new batteries. The IBM Smart-UPS comes with a one year replacement warranty.
Additional warranty of up to 3 years is available for your convenience.
This uninterruptible power supply (UPS) system is designed to provide high-density, cost-effective power management while meeting customer demands.
IBM Smart-UPS 10000VA 8000W 200V/240V 50A RM 6U 10000XHV - User Manual
IBMR10000RTH6U - 10000XHV - IBM Smart-UPS RT Specifications:
Model:
208V or 240V (configurable)
Other Input Voltage
220/230/240V or 380/400/415V (3-phase bypass)
Main Output Voltage
230V (default)
Other Output Voltage
200, 208, 220, 240V (selectable via terminal style=\"line-height: 150%;\">Main Input Voltage
208V or 240V (configurable)
Other Input Voltage
220/230/240V or 380/400/415V (3-phase bypass)
Main Output Voltage
230V (default)
Other Output Voltage
200, 208, 220, 240V (selectable via terminal mode)
Rated Power in W
8000W
Rated Power in VA
Output Connection Type
(2) NEMA L6-20R
(2) NEMA L6-30R
Output Connector Type
Hard Wire 3-wire (2PH + G) 1
Number of Rack Unit
6U
Cable Length
8 ft (2.44 m)
Battery Type
Lead-Acid Battery
Product Description
IBM UPS 10000XHV - UPS - 10000 VA - Ethernet 10/100 - 4 output connector(s) - 6U - for System x3350; x3550 M2; x3630 M3; x3650 M2; x3755; x3850 M2; x3950 M2; x3950 X5
Batteries & Runtime:
Included Battery Modules
4
Battery Slots Empty
2.2 hours
RBC Quantity
2
Additional Information
Configurable for 208 or 240 nominal output voltage
Battery Charge Power (Watts)
869 W rated
Battery Power in VAH
1920 VAh runtime (internal)
Battery Life
3 - 5 year(s)
Replacement
Battery Option
SURT192RMXLBP3U 1 3840 VAh
SURT192RMXLBP3U 2 5760 VAh
SURT192RMXLBP3U 3 7680 VAh
SURT192RMXLBP3U 4 9600 VAh
SURT192RMXLBP3U 5 11520 VAh
SURT192RMXLBP3U 6 13440 VAh
SURT192RMXLBP3U 7 15360 VAh
SURT192RMXLBP3U 10 21120 VAh
Extendable Run style=\"line-height: 150%;\">Number of Power Module Free Slots
0
Number of Power Module Filled Slots
0
Redundant
No
Physical:
Color
Black
Height
10.35 inches (263mm, 26.3cm)
Width
17.01 inches (432mm, 43.2cm)
Depth
28.98 inches (736mm, 73.6cm)
Net Weight
244.51 lbs. (110.91kg)
Mounting Location
Front
Mounting Preference
Lower
Mounting Mode
Rack-mounted
Two Post Mountable
No
USB Compatible
No
Input:
Input Frequency
50/60 Hz +/- 5 Hz auto-sensing
Number of Input Connectors
1 Hard Wire 3-wire (2PH + G)
Efficiency at Full Load
92%
Input Total Harmonic Distortion
Less than 7% for full load
Output:
Max Configurable Power (Watts)
8000W
Harmonic Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains
Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave
Bypass Type
Internal Bypass (Automatic and Manual)
Efficiency at Full Load
92 % full load
Maximum configurable power in VA
10000VA
Conformance:
Product Certifications
CSA
FCC part 15 class A
UL 1778
Environmental:
Ambient Air Temperature for Operation
32 - 104 °F (0 - 40 °C)
Relative Humidity
0 - 95% non-condensing
Operating Altitude
0 - 10000 ft
Ambient Air Temperature for Storage
5 - 113°F (-15 - 45°C)
Storage Relative Humidity
0 - 95% non-condensing
Storage Altitude
0 - 50000 ft (0.00 - 15240.00 m)
Acoustic Level
55 dBA
Online Thermal Dissipation
2216 Btu/h
IP Degree of Protection
IP20
Communications & Management:
Interface Port(s)
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Free Slots
0
Pre-Installed SmartSlot™ Cards
Network management card 2 with environmental monitoring
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering:
Surge Energy Rating
1265 J
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
