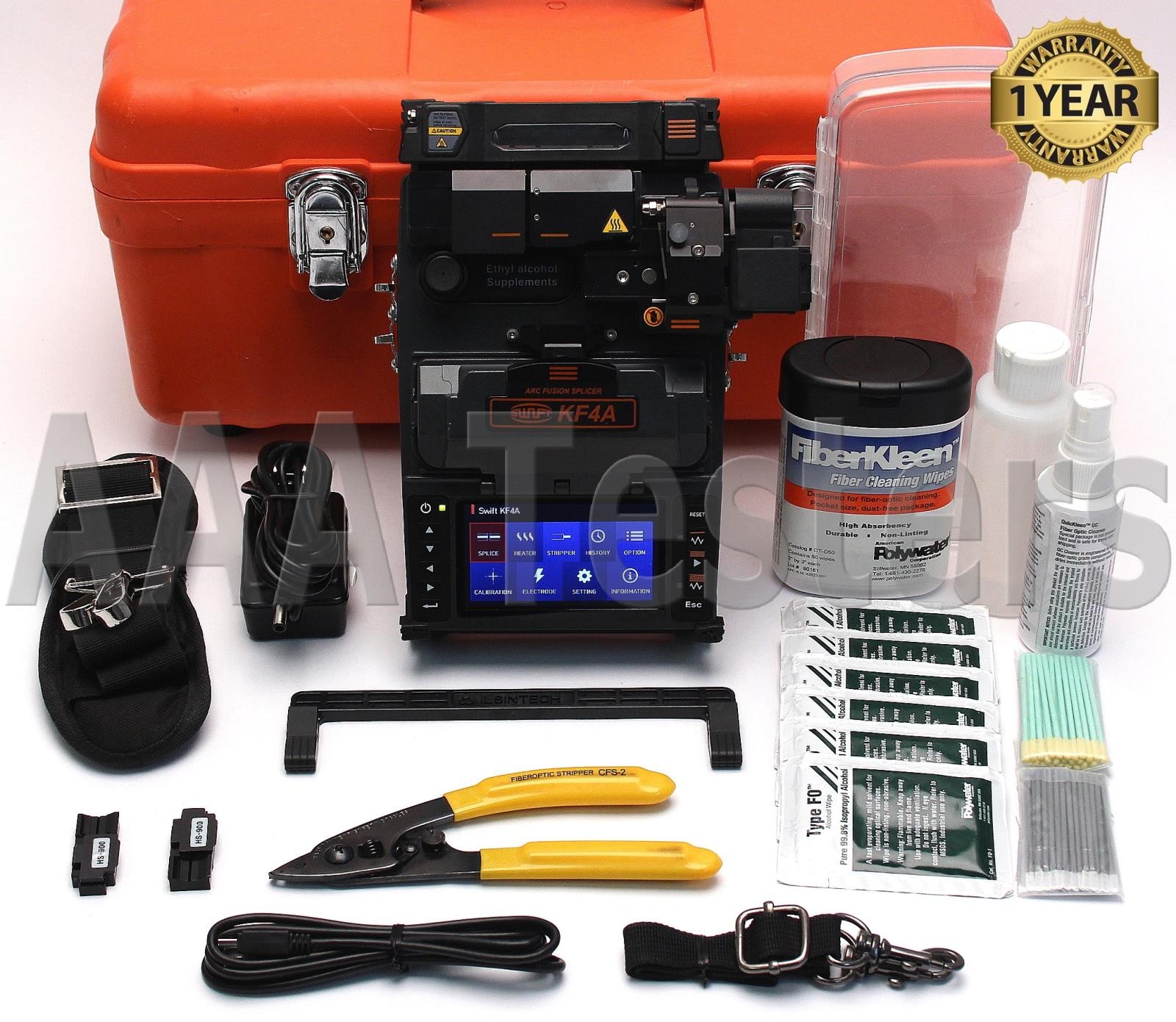

ILSINTECH Swift KF4A SM MM Clad Alignment Fiber Fusion Splicer Attached Cleaver For Sale

template

The Following Items Are Included:

• ILSINTECH Swift KF4A SM MM Clad Alignment Fiber Fusion Splicer (BC# 54664)
  • Attached Fiber Optic Cleaver

• Clauss CFS-2 Fiber Optic Stripper
• 6 Month Fusion Splicer Care Kit FS6MC:
  • 4oz Flip Jar Of 99% Alcohol
  • (50) Non-Lint Dry Wipes
  • (6) Fiber Optic Wipes w/ 99% Alcohol
  • 2oz Pump Fast Evaporating Mirror Spray
  • (25) Camera Swabs
  • (25) V-Groove Swabs
• HS-900 Fiber Holder Set
• Sleeving Clamp
• USB PC Interface Cable
• AC Adapter/Charger
• Strap For Unit
• User Manual On CD-ROM
• Hard Carrying Case w/ Strap

BE SURE TO CHECK OUR store FOR OTHER ITEMS!

This Item Has A Current Calibration!

ILSINTECH Swift KF4A SM MM Clad Alignment Fiber Fusion Splicer

Designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving

The Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector (SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors

Includes Hard Carrying Case & Accessories As Listed Above!





Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY




Ilsintech Swift KF4A Fusion Splicer
Swift KF4A is the highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving.In addition, optional Optical Power Meter and V.F.L(Visual Fault Locator) is imbedded in the machine. They allow users check the splice result immediately without additional tools. (ALLINONE+, KF4A+) The Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector(SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors.(low quality, weak durability and high maintenance cost). Swift KF4A+fusion Splice-On-Connector gives our customer the best ROI.

Features:

• Stripping
• No scratches from heated stripping
• Stripping time : 1.5sec
• Over 5kg/f Tensile Strength of fiber after pump
• Easy to refill cleaning cleaving
• Fiber chip collector attached
• Resistance to Shock, Dust and Water
• The splicer with high reliability has stable performance even in a harsh environment.
• Shock – Free Fall : 76cm from 5 sides l Waterproof : IPx2 l Dustproof : IP5x
• Compatible with Fusion Splice-On Connector(SOC) in accordance with the Industrial Standard

Specifications:

Fiber alignment
Active Clad to Clad Alignment
Applicable type of fibers
0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable
Fiber Count
Single fiber
Applicable fiber dimensionsCladding diameter : 125㎛, Coating diameter : 150㎛~3mm
Fiber setting and cleaved length
5mm to 16mm
Splicing modes
Splice mode: 300, Heater mode: 100
Typical Splice Loss
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss
> 60dB
Splicing time
Typical 7sec (with SM)
Splice loss estimate
Available
Sleeve heating time
Typical 13sec, IS-60 mode with IS-20 sleeveApplicable protection sleeve
40mm, 60mm and Micro sleeveStorage of splice resultData : Up to 5,000 (Image : Up to 5,000 pcs)Tension test1.96N to 2.25NOperating condition
Altitude: 0~5,000m above sea level, Temperature: -10℃~50℃,
Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proofStorage conditionTemperature: -40℃~80℃, Humidity: />1.5kg (Including battery)
Viewing method and display2AXIS Two CMOS cameras and 4.3-inch color LCD monitorFiber view and magnification
X/Y : 130X, Max : 260XPower supplyDC Lithium polymer battery(DC 14.8V, 1650mAhｘ2), 100 ~ 240V AC AdapterNo. of splice cycles with batteryTypical 200 cyclesElectrode lifetimeMore than 21,000 timesBlade lifetime75,000 fibersTerminalsUSB

For full Ilsintech Swift KF4A product specifications, please click here: Ilsintech Swift KF4A
