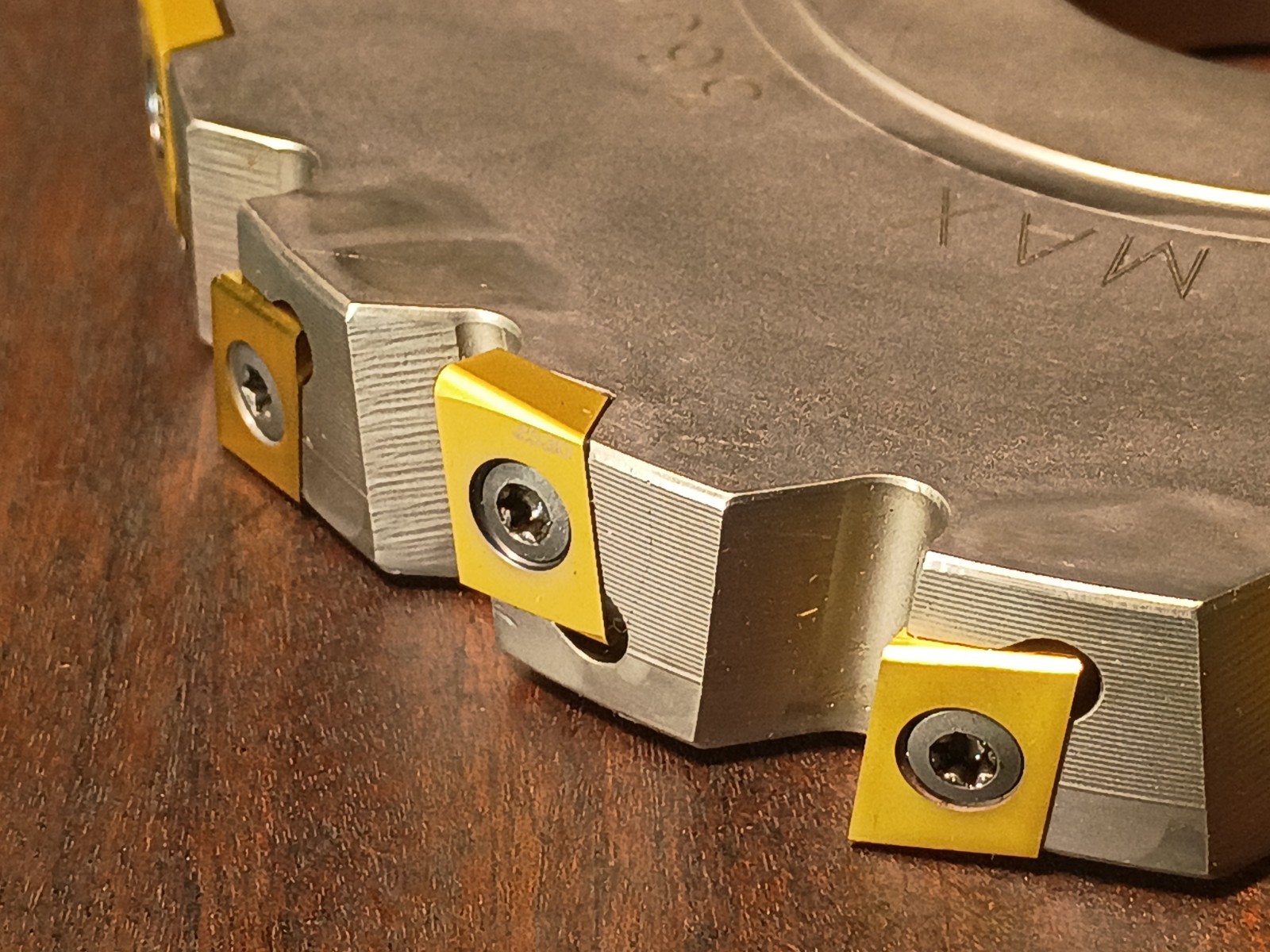

Ingersoll 36J6B0612-01 6\" Side Mill With 18 CDE323(R&L)022 Inserts 1.5\" AH For Sale

Item #597

The Ingersoll 36J6B0612-01 is a high-performance indexable slot milling cutter manufactured by Ingersoll Cutting Tools.Key Technical Specifications

• Tool Type: Indexable Slotting/Side Milling Cutter
• Part Number (MPN): 36J6B0612-01
• EDP Number: 3021799
• Cutting Diameter: 6 inches / 150 mm
• Cutting Width: 0.68 inches / 19 mm
• Arbor / Pilot Diameter: 1.5 inches / 38 mm

This industrial tool is designed for precise slotting, grooving, and side-milling applications in manufacturing workshops. It features a staggered tooth design to optimize chip evacuation and reduce vibration during heavy machining cycles.

The Ingersoll 36J6B0612-01 slotting cutter belongs to the legacy 36J6 series / HiPos-Quad family of staggered-tooth slot mills.Compatible Insert Specifications

• Standard Insert Series: This family generally uses LNXT, LNE, or proprietary 36J series right-hand (RH) and left-hand (LH) indexable inserts.
• Seating Pattern: It utilizes a staggered pocket configuration requiring alternating left-hand and right-hand cutting edge inserts to balance cutting forces.
• Hardware: Uses standard T-handle Torx flag drivers and specialty pocket screws native to Ingersoll Cutting Tools.

The Ingersoll CDE323R022 is a right-hand, indexable caroffere milling insert featuring a distinct 78° parallelogram geometry. It is widely used across Ingersoll Cutting Tools face mills and slotting cutters requiring staggered, handed configurations. [1, 2] Technical Dimensional Breakdown

• Insert Style: CDE (78° Parallelogram)
• Size Designation: 323 (0.500\" nominal length, 0.375\" width, 0.188\" thickness)
• Hand: Right-Hand (R)
• Corner Radius: 0.022\" (indicated by the final digits \"022\")

Common Manufacturing Grades & Part NumbersThese inserts are commonly distributed across several specialized material coatings depending on your specific workpiece application:

• IN2530 (EDP #5803933): A versatile TiN-coated grade engineered primarily for general-purpose steel and cast iron milling.
• IN1530: A tough, wear-resistant caroffere base optimized for steady machining parameters in alloy steels.

The market price for an Ingersoll 36J6B0612-01 indexable slot milling cutter generally ranges from $600 to $700 on the industrial surplus market, depending on its condition. Because it is a legacy cutting tool, buying it brand new directly from factory distribution will typically require a custom corporate price quote.Current Pricing & Availability Details

• Industrial Surplus (Used / Excellent Condition): Verified active inventory can be found for $699.95 through tooling supply houses like Superior Machine & Tool and corresponding industrial storefronts on .
