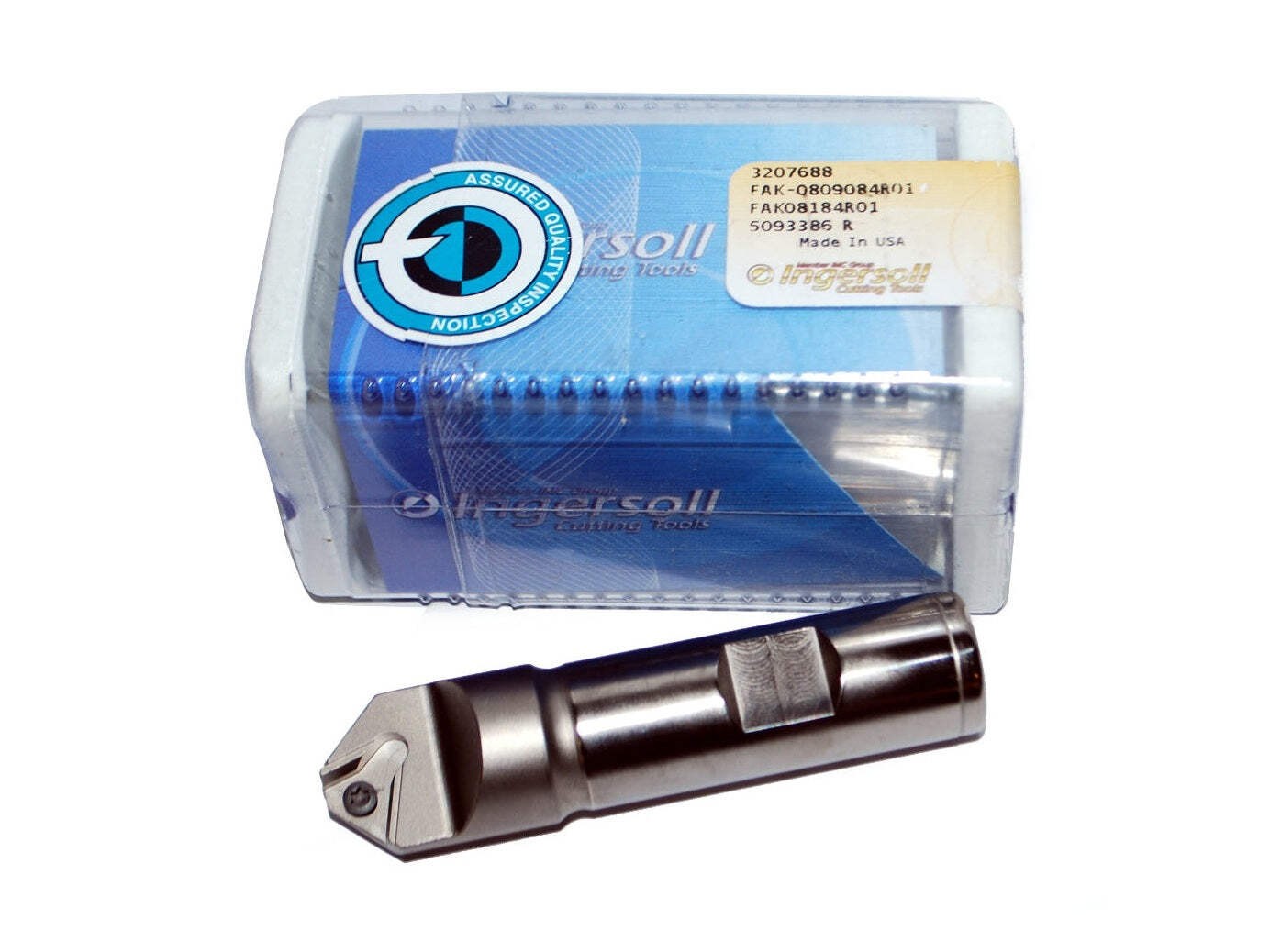

Ingersoll FAK-0809084R01 Spotting Drill for TFLT Triangle Insert 3207688Ingersoll Cutting ToolsFAK-0809084R01 08184R01 Spotting Drill for TFLT Triangle Inserts 3207688Indexable 90-Deg. Spotting Drill Using Triangle Insert Recommended for Spot Drilling, Counter Sinking, Engraving and Chamfering Specs Part Number: FAK-0809084R01 Included Angle: 90 degrees Max Diameter of Spot (inch): 0.842 Max Diameter of Spot (metric):21.39 mm Max Depth of Cut: 0.39 Overall Diameter: 0.810 Extenstion from Holder: 1.50Overall Length: 3.50 Shank Size / Style: .750\" Weldon Uses Inserts: TFLT15T303N, TFLT15T308N(Inserts not included)Ingersoll Part numbers: 5100414 and 5110213Torx: T9 (included)Screw: SM30-065-00 (Includes 3 Screws) MPN: 3207688PKG QTY: 1 PC Ingersoll FAK-0809084R01 Spotting Drill for TFLT Triangle Insert 3207688
Ingersoll Cutting Tools
FAK-0809084R01 08184R01 Spotting Drill for TFLT Triangle Inserts 3207688
Indexable 90-Deg. Spotting Drill Using Triangle Insert
Recommended for Spot Drilling, Counter Sinking, Engraving and Chamfering
Specs
Part Number: FAK-0809084R01
Included Angle: 90 degrees
Max Diameter of Spot (inch): 0.842
Max Diameter of Spot (metric):21.39 mm
Max Depth of Cut: 0.39
Overall Diameter: 0.810
Extenstion from Holder: 1.50
Overall Length: 3.50
Shank Size / Style: .750\" Weldon
Uses Inserts: TFLT15T303N, TFLT15T308N
(Inserts not included)
Ingersoll Part numbers: 5100414 and 5110213
Torx: T9 (included)
Screw: SM30-065-00 (Includes 3 Screws)
MPN: 3207688
PKG QTY: 1 PC
× × × × ×
