Inkbird ITC-106VH 110-240V PID Temperature Thermostat Controllers K 40DA SSR C/F For Sale

• Power Supply Voltage: AC 100-240V 50/60Hz
• Operating voltage range： 85～110% Rated voltage
• Power Consumption： Approx. PV: 4 digital 9.9mm height Red LED Letters
• SV: 4 digital 8mm height Green LED Letters
• Display Accuracy: ±0.2%FS of Sampling： 0.5S
• Temperature Compensation： 0-50ºC

ITC-106VH + K SENSOR + 40 SSR

Product Features

• Support reading with Centigrade or Fahrenheit unit
• Dual display window, be able to display measured temperature and set temperature at the same time.
• Simplify operational processes and you don\'t need to operate more steps if you want to set the definite value

• Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
• Weight: Approx. 140g
• Environmental Conditions: -10～55ºC（no icy or condensation）, RH 35-85% Humidity
• Storage Temperature: -25～65ºC（no icy or condensation）
• Data Storage: 10year Cutout size: 45x45mm
• Mounting Method: Flush mounting and screw terminals

40A SSR SOLID STATE RELAY

Specifications:

• Load Voltage: 24-380VAC
• Load Current: 40A
• Input Voltage: DC 3-32V

K-Type Thermocouple

• Temperature rang :0-400 C
• Sensor Dia: 4.5mm
• Cable Length: 2m(6.6ft)
• External Shielding: Insulated Shielding
• Internal Insulation:Fiberglass

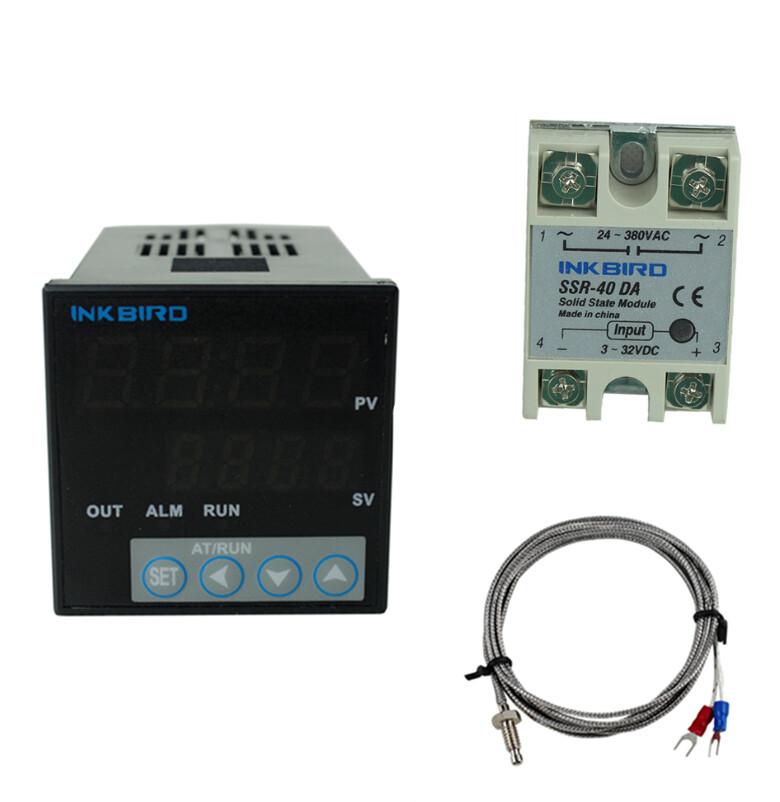

ITC-106VH+K Sensor + 40DA SSR:

• 1x Inkbird ITC-106VH Controller
• 1x 40A SSR
• 1x Mounting bracket
• 1 x K Sensor
• 1x Manual
