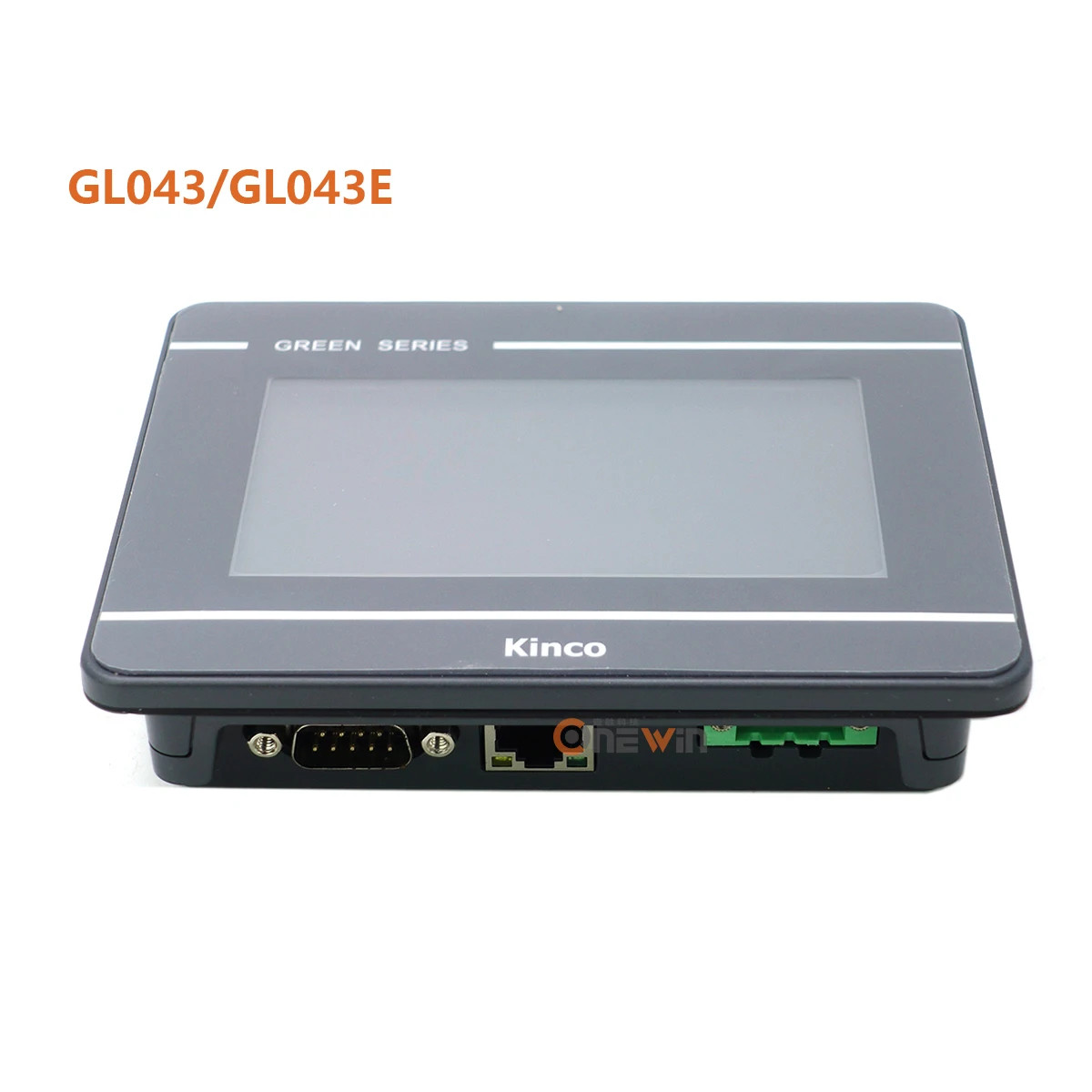

Kinco GL043 / GL043E HMI Touch Screen
4.3\" TFT Industrial Human Machine Interface
Overview
The Kinco GL043 series is a compact 4.3-inch TFT touch screen HMI designed for industrial automation applications. Available in two versions — GL043 (no Ethernet) and GL043E (with Ethernet) — both are direct drop-in upgrades with the same mounting hole size as the legacy MT4230T and MT4230TE models, making replacement fast and easy.
Key Features📟 Sharp Display
4.3\" TFT screen with 480x272 resolution for clear visibility of control data.
⚡ Powerful Processor
ARM RISC 32-Bit 792MHz CPU ensures smooth and responsive operation.
🔌 Flexible Connectivity
Program download via USB Slave / U-disk / Ethernet (GL043E model), plus multiple COM ports for PLC communication.
🔄 Easy Upgrade
Same hole size as MT4230T/MT4230TE — a seamless drop-in TFTResolution480 x 272 pixelsCPUARM RISC 32-Bit 792MHzProgram DownloadUSB Slave / U-disk / EthernetCOM PortsCOM0: RS232/RS485/RS422; COM2: RS232Backlight Life30,000 hoursSoftwareKinco DTools V3.2 and aboveReplacesMT4230T (GL043) / MT4230TE (GL043E)Package Contents1 x HMI Touch ScreenProduct ImagesFAQWhat is the difference between GL043 and GL043E?
GL043 has no Ethernet and can replace the MT4230T. GL043E includes Ethernet and can replace the MT4230TE. Both share the same mounting hole size.
What software is used for programming?
Kinco DTools V3.2 or above is required for configuration.
What connections are available for PLC communication?
The unit includes COM0 (RS232/RS485/RS422) and COM2 (RS232) ports for flexible PLC integration.
![Kinco GL043 GL043E 4.3\](img-large/g/9ToAAeSwVf1qkCyY/s-l1600/Kinco-GL043-GL043E-4-3-HMI-Touch-Screen-Ethernet-U.jpg "Kinco GL043 GL043E 4.3\")
