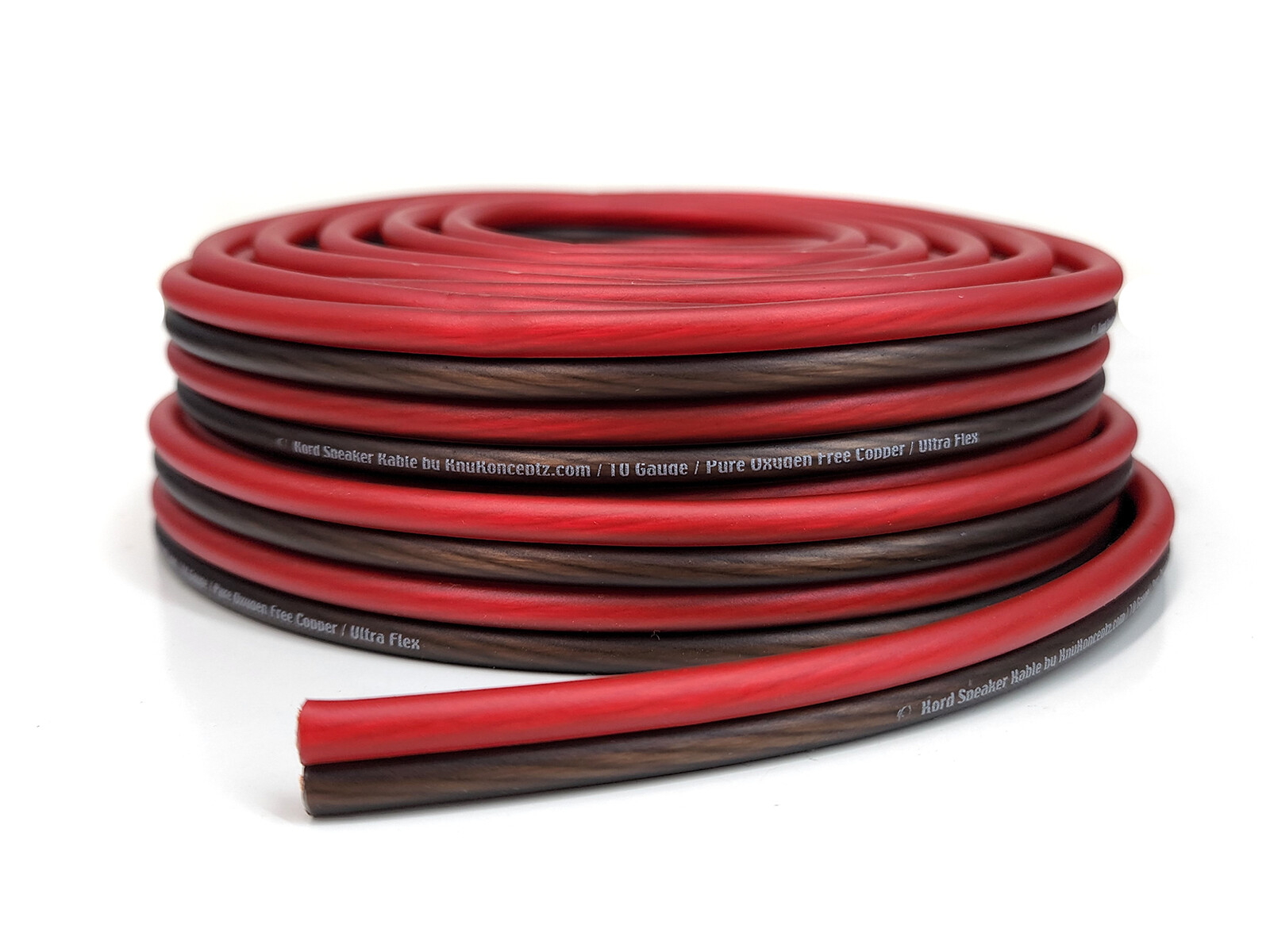

Amp KitsFuse BlocksFusesHDMI CablesPower WireRCA CablesSound DampenersSpeaker WireTerminalsAmp KitsFuse BlocksPower WireRCA CablesSpeaker WireTerminalsDescriptionKord Ultra Flex Gauge OFC Speaker WireKord Ultra Flex Speaker Wire - over sized Oxygen Free Copper speaker cable provides superior frequency response compared to smaller, conventional speaker wire. Each conductor is composed of the finest copper for superb audio accuracy and flexibility. The Kord Speaker wire is wrapped in ultra flex red and black PVC with a black polarity stripe on one side of the round-round cable profile.Kord Utra Flex Speaker wire is basic side-by-side, oversized speaker cable. Utilizing high strand counts of fine, pure Oxygen Free Copper make the Kord series a very flexible speaker wire. Applications include home and mobile audio. The side by side profile allows for ease of installation under carpets or around base boards. The cable is finished in a translucent matte red and black ultra flex PVC FAQ
Additional InformationRelated ProductsSpecificationsKord 10 Gauge Speaker Wire Specifications
Core Material
Oxygen Free Copper
Cable Composition
36 Gauge
DielectricUltra Flex PVC
Outer Diameter
11mm x 5mmCore Diameter
~4mm - 462 Strands x 2Kord 12 Gauge Speaker Wire Specifications
Outer Diameter
9mm x 4.5mmCore Diameter
~3mm - 294 Strand x 2Kord 14 Gauge Speaker Wire Specifications
Outer Diameter
8mm x 4mmCore Diameter
~2.5mm - 189 Strands x 2Kord 16 Gauge Speaker Wire Specifications
Outer Diameter
6.4mm x 3.2mmCore Diameter
~2mm - 112 Strands x 2Back to topAdditional InformationPlain and Simple Specifications
All KnuKonceptz Cable Products clearly state these specifications
- Wire type - CCA or OFC
These materials are commonly used, but not commonly stated when shopping online. Know what you are purchasing. Both metals are capable of performing up to their rated loads.- American Wire Gauge
Wire gauge is crucial to powering your system correctly. Undersized cable will create unsafe conditions and may shorten your amplifier's life.
True American Wire Gauge (AWG) Products
- Using American Wire Gauge standards, the gauge of stranded wire is determined by the total area of the conductor.
- To calculate this you would take the area of each strand and add it together. This area, in square mm, then determines gauge.
- Speaker Wire is often written as 12-2 or 12/2. This means 12 gauge x 2 conductor, both positive and negative signal are carried within one cable and are each 12 gauge.
- Diameter is not as critical with stranded wire, this is due to the tiny air gaps between each strand. Diameter may fluctuate with strand size and how tightly wound the rope of the cable is.
- The smaller the number, the larger the wire, until you reach zero or aught (0). Most speaker wire ranges from 10 to 16 gauge. 18 to 22 gauge is often much too thin for most Home Theater applications.
Oxygen Free Copper - The standard in audio
- Quality cables use quality materials. Oxygen Free Copper is copper of at least 4n purity. That means the conductor must be at least 99.99% copper.
- Copper speaker wire provides lower resistance than similar sized CCA cable. This means improved frequency response.
- The ultra fine OFC strands in the Kord speaker wire allow for more current to flow as AC voltage travels on the conductors edges.
- Another benefit to the high strand count, our cable is incredibly flexible
Back to topProduct FAQQ: Can this cable be used in wall?A: In wall cable requires a UL listing and be CL2 or CL3 rated by UL to be up to code. The main difference is that CL2 and CL3 rated cables have a double jacket to prevent damaged to the cable while pulled through walls and studs. The Kord Kable is not rated for in wall use, however it can be used in drop ceilings. If CL2 or CL3 rated wire is needed, see our KL3 series.Q: Which side is Positive and which is NegativeA: One side of the cable is red PVC, the other is black PVC. Use this to differentiate between positive and negative. It is critical the same color coded conductor is used throughout the installation to maintain correct polarity.Back to topRelated ProductsAdditional Lengths of Kord 12 Gauge Speaker Wire
Sold in increments of 5 Feet to 250 feet, we have the length you're looking for.
KnuKonceptz Speaker Pants
Dress up your Kord 12 Gauge with our speaker pants
KnuKonceptz eKs Banana Plugs
Terminate your new speaker wire with our eKs BFA style Banana PlugsBack to
