Businessis our specialityNEW Knukonceptz Ultimate Battery Terminal V2 Pair- Positive and Negative with Vertical Top Post AdaptersFEATURES

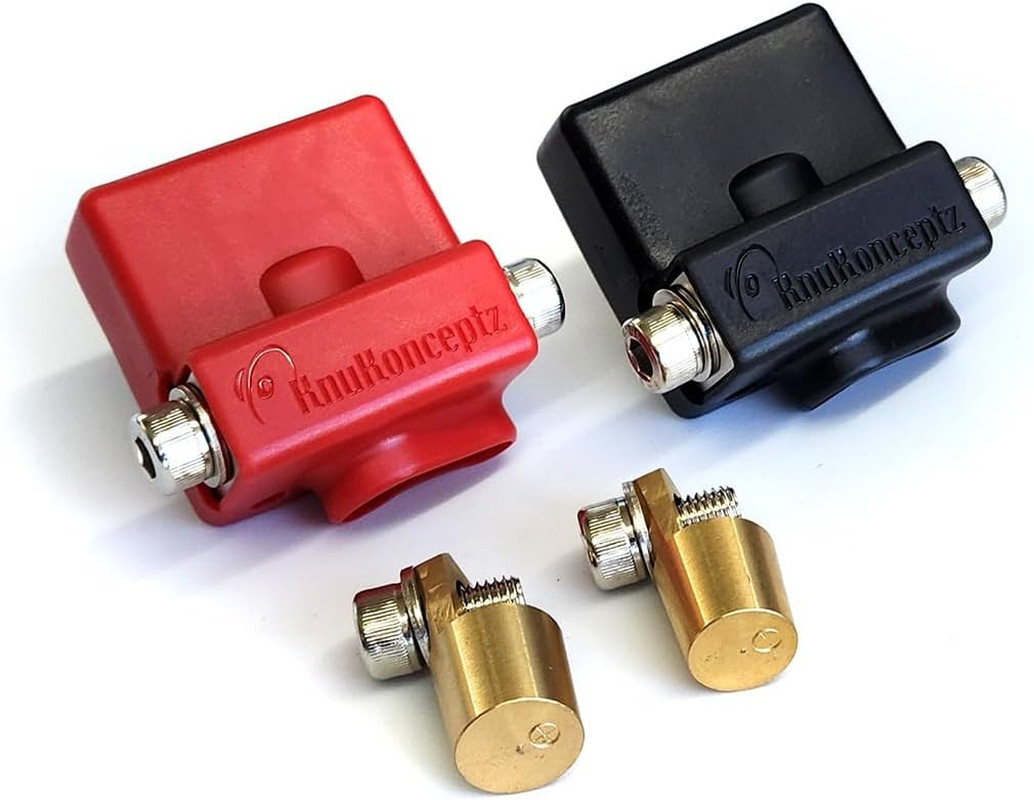

Product description KnuKonceptz Ultimate Battery Terminal v2 +/- Pair with Vertical Top Post Adapter
Product Description
KnuKonceptz has redefined Ultimate to bring an even more versatile battery terminal to market. The Ultimate Battery Terminal UBT-20 offers symmetrical application of our popular Top Post and Vertical Top Post adapters. Installers can now easily manipulate any factory battery application with screw ports on both left and right side of the terminal.
With this listing you get:
- UBT-20P Positive Battery Terminal with cover
- UBT-20N Negative Battery Terminal with cover
- TPA-POS OEM Positive Vertical Top Post Adapter
- TPA-NEG OEM Negative Vertical Top Post Adapter
Patented Reversible Cross Dowel Clamp
Attaching the Ultimate Battery Terminal v2 to a recessed battery post is no longer a challenge thanks to our new patented (US D1061442) clamp screw design. The clamping mechanism can be accessed from the front or rear face of the UBT-20. Installers simply need to arrange the interchangeable brass dowels within the UBT-20 according to application.
Symmetrical Terminal Design - More Flexibilty than the the original UBT!
The Ultimate Battery Terminal UBT-20 offers symmetrical application of our popular Top Post and Vertical Top Post adapters. Installers can now easily manipulate any factory battery application with screw ports on both left and right side, a feature not available with the original UBT!
Connect 1/0 and 4 Gauge - Simple Set Screw Connections
The UBT-20 also holds a variety of cable sizes by set screws and the two ring terminal ports. Each UBT-20 accepts one each 1/0 and 4 gauge wire. These two set screws are accessible from the bottom of the terminal, even after the insulated color coded cover is in place. The ring terminal ports can hold any gauge cable via the 8mm stud or attach one of our Vertical Top Post adapters for easy OEM integration
Protects Against Reverse Polarity - SAE Top Post Connectors
Like all automotive battery terminals, the UBT-20 is made to SAE specifications, which means that the positive and negative terminals are machined to different diameters, displayed here by our Vertical Top Post Adapters. This is a reverse polarity safety feature so that installers can not tighten a negative terminal onto a positive battery post and cause serious damage to vehicle electronics.
- Includes: One positive(+) and one negative(-) battery terminal, each including a side mounted Vertical Top Post Adapter (VTPA). Two color coded insulated terminal covers keep your battery connections safe.
- Innovative Design: Our patented [D1,061,442] reversible cross dowel clamp terminal fits recessed top post or flat top batteries. Easy to install and integrate your OEM battery cable connection with the included Vertical Top Post Adapter. All you need for your installation is a utility knife and set of allen wrenches (not included).
- Accepts a Variety of Cable Gauges: Each terminal accepts one 1/0 and one 4 gauge wire. These two set screws are accessible from the bottom of the terminal, even after the insulated color coded cover is in place. Two ring terminal posts allow for any gauge cable to be connected for ultimate flexibility.
- Designed with Safety in Mind: Every terminal includes an insulated, color coded cover to protect your car from an accidental short at the battery.
Manufacturer KnuKonceptz Brand KnuKonceptz Item Weight 1.54 pounds Product Dimensions 8 x 3.5 x 1.25 inches Item model number UBT-20PN-VTPA Exterior Brushed Manufacturer Part Number UBT-20PN-VTPA 1.25 inches x 8.0 inches x 3.5 inches. Weight: 1.54 lb
