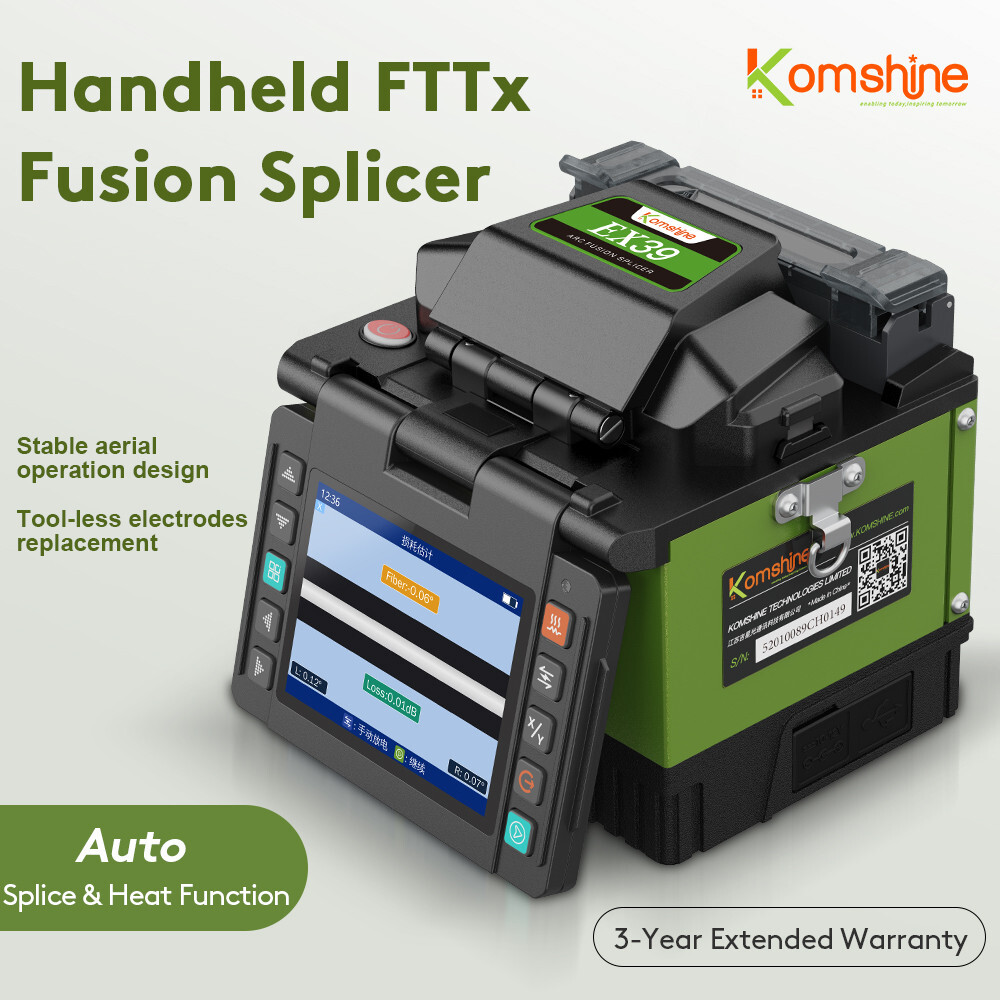

KomShine EX39 Newest Fiber FTTX Fusion Splicer 0.01dB Loss. 8s Splice; 18s Heat For Sale

KomShine EX39 Newest Fiber FTTX Fusion Splicer

0.01dB Loss. 8s Splice; 18s Heat. Máquina

Empalmadora De Fusión De Fibra Optica

Attention: The platform should buy alone, if you need it please contact us.

Specifification:

Splice Method :

Active Clad-Alignment

Applicable Fibers :

SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber/Cable :

0.25~3.0 mm / indoor cable

Fiber Holder :

Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional)

Fiber Diameter :

Cladding: 80-150μm，Coating: 100~1000μm

Fiber Cleave Length :

8~16 mm

Splice mode :

Max 128 modes

Typical Splice Loss :

SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB★①

Return Loss :

>>60dB

Splicing Time :

SM Quick mode :8 sec/ SM Average: 10 Sec.

Estimated Splice Loss :

Available

Heating Time :

Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable

Protection Sleeve Length :

20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs:

Max 32 modes

Battery :

3400mAhBattery Capacity, Typical 120 Cycles (Splice&Heat) per Charge★②

Electrode Life :

5000 arcs（replaceable）★③

Auto-start :

Splice / Heating

Automatic Fiber Identification :

/

Automatic ARC Identification :

Automatic arc calibration by air pressure and temperature

Results Storage :

The last 10,000 splice records and 2,000 result images

Tension Test :

1.96~2.25N

Operating Condition :

Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s

Storage Condition :

0~95% relative humidity, -20~60°C

Display :

3.5” colorhigh resolution (800 x 480) display

Fiber Magnification :

X, Y, XY, X/Y : 320X Magnification

Power Supply :

AC Input 100-240V, DC Input 9-14V

Terminal :

USB2.0

Weight :

1.06kg without battery / 1.35kg with battery

Size :

130H x 113W x 126D mm

Feature Description:---Effiffifficient, versatile, lightweight & portable---Working platform design for aerial work---Special 3-in-1fifiber holde---3 years warranty---Electrode life around 5000 times(Replaceable)---Automatic splicing & automatic heating---Innovatively no need tools to replace electrodes---Support 120 times of splicing + heating when fully charged
