LABLT 11 GPM 2 Spool SAE Hydraulic Monoblock Double Acting Control Valve For Sale

Specifics and features:

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.

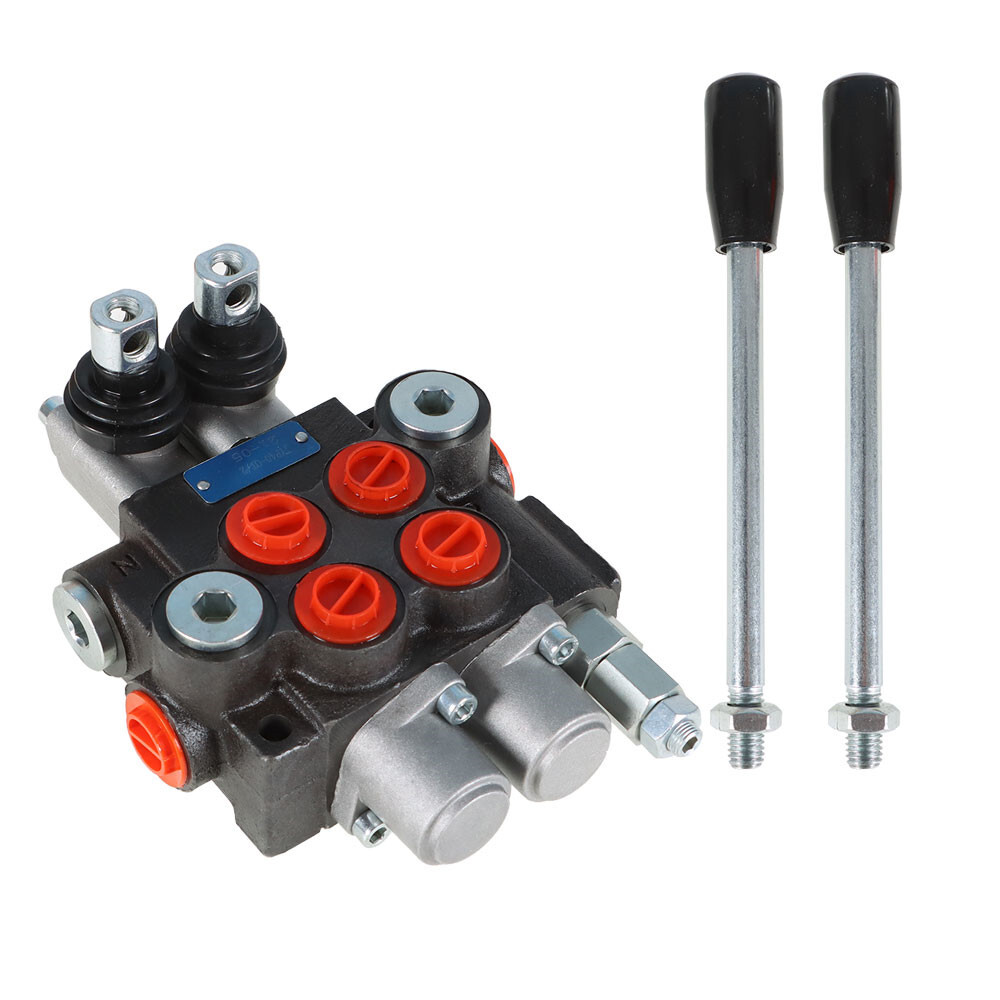

LABLT 11 GPM 2 Spool SAE Hydraulic Monoblock Double Acting Control Valve

Specifics and features:

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.

2 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow) - closed center option available
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of Closed Center or Power Beyond (conversion plug required)
Vertical or horizontal handle mount
Adjustable Relief Valve Range: 1500 to 3625 PSI
Used as motor or single-acting spool possible (#8 SAE port plug required)

Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports: #8 SAE O-Ring (3/4"-16) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #10 SAE O-Ring (7/8”-14) Thread
2 – 5/16” Mounting Holes

Compatible with:

Operate hydraulic cylinders (Double-Acting or Single-Acting)
Operate hydraulic motors ("D" Spool Required)
Install rear remotes on a tractor

Package Includes:

1×2 Spool Hydraulic Monoblock Double Acting Control Valve

Notes：

We strongly recommend a professional installation.

If you are not sure if the product is suitable for your equipment, please contact us promptly to confirm before purchase.

Please allow for measurement error as all detailed dimensions of the product are measured manually.

Due to the lighting problem when shooting, the product pictures in the link may not reflect the actual color of the item.

Thank you for bookmarking our store and look forward to working with you.

Item SpecificsCountry of Origin United StatesBrand LABLTMPN QS238784QRValve Operation ManualSpool Count 2-SpoolMaximum Flow Rate 11 gpmMaximum Pressure 3625 psiWarranty 2 years
