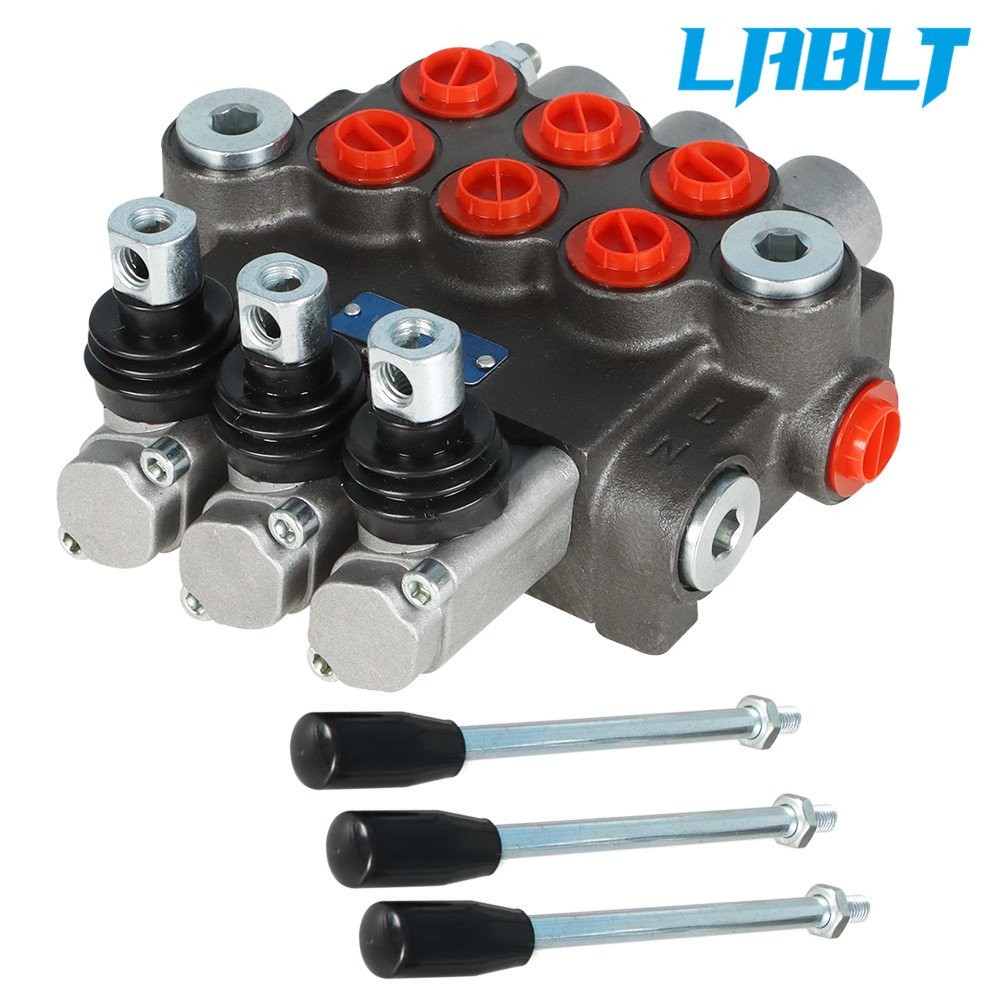

Description:Max operating pressure: P = 3600psi (250 bar);T = 150psi (10 bar); A ,B = 4300psi (300 bar)Nominal flow: 13gpm (60L/min)Relief valve: AdjustableCenter system: OpenA, B ports: 3/8" BSPPP, T, N port: 1/2" BSPPBack pressure: ≤1MPATemperature: -20 - 80℃Vise rang: 10 - 400mm2/sFiltrating accuracy: ≤10um LABLT 3 Spool P40 Hydraulic Directional Control Valve Manual Operate 13GPM
Description:
Max operating pressure: P = 3600psi (250 bar);T = 150psi (10 bar); A ,B = 4300psi (300 bar)
Nominal flow: 13gpm (60L/min)
Relief valve: Adjustable
Center system: Open
A, B ports: 3/8" BSPP
P, T, N port: 1/2" BSPP
Back pressure: ≤1MPA
Temperature: -20 - 80℃
Vise rang: 10 - 400mm2/s
Filtrating accuracy: ≤10um
P40 Model valves with middle-high pressure monoblock construction is developed based on Europe technology.
Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
Oil way: Parallel circuit, power beyond option
Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
Valve construction. monoblock construction, 1-7 levers.Spool Function: O,Y, PA.
Option: Hydraulic lock is available to be added on A and B port.
Available with manual,' pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
Application for:
Small tractors,Tractors loaders,Log splitters,Other mobile.
Package Includes:
1 × 3 Spool P40 Hydraulic Directional Control Valve
About LABLT：
LABLT has rich experience in the production, sales and after-sales service of Industrial parts. For many years, we have been committed to providing professional and personalized services to enhance the shopping experience of buyers. If you need any parts, please come to LABLT to buy them. We look forward to cooperating with you!
Item SpecificsCountry of Origin United StatesBrand LABLTMPN OM213660OCSpool Count 3-SpoolCenter system OpenA, B ports 1/2" BSPPP, T, N port 1/2" BSPPBack pressure ≤1MPATemperature -20 - 80℃Vise rang 10 - 400mm2/sFiltrating accuracy ≤10umRelief valve AdjustableNominal flow 13gpm (60L/min)
