Product DescriptionProcess Calibrator Resistance Current Voltmeter Signal Generator Source LB02 NewFeatures:
Increase disposable fast blow fuse, to avoid false instrument damage caused by voltage 220V plug.
All functions all use internal electronic switch, input and output has a corresponding button.
Two connector terminals can be used regardless of input and output. It is easy to operate.
In addition to having a conventional signal input and output functions,resistance, PT100.Cu50 RTD, thermocouple eight kinds of signals can be input and output, measure negative temperature.
The sensitivity of thermal resistance and resistance to external excitation output current is reduced. Increase the output and the measurement accuracy. For both constant and non-constant resistance measurement method, expanding the usage of the instrument.
V, mV, mA, Ω input and output has a corresponding button, directly call without advance menu, no combination of LB02
Current Output: 0-24 mA
Voltage(V) Output:0-11 V
Voltage(mV) Output: 0-110 mV
Resistance Output:20-4000Ω
Current Measurement Range: ±30 mA
Voltage(V) Measurement Range: ±30 V
Voltage(mV) Measurement Range: ±150 mV
Resistance Measurement Range: 0-999.9Ω
Size: portable size: 90x80x30mm, put it into your pocket, save energy, save cost, easy to carry.
High accuracy 0.025%+1/2 digits, high reliability and stability.
2200mAH re-chargeable battery inside, very suitable and convenient to use it in applications indoors or outside industrial site.
Signal output & simulation: 4-20mA source or passive signal, 0-11V, 0-110mV, 20-400Ω, standard R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, etc.
Measurement ranges: 0-30V, 0-150mV, 0-999.9Ω, standard R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, etc.

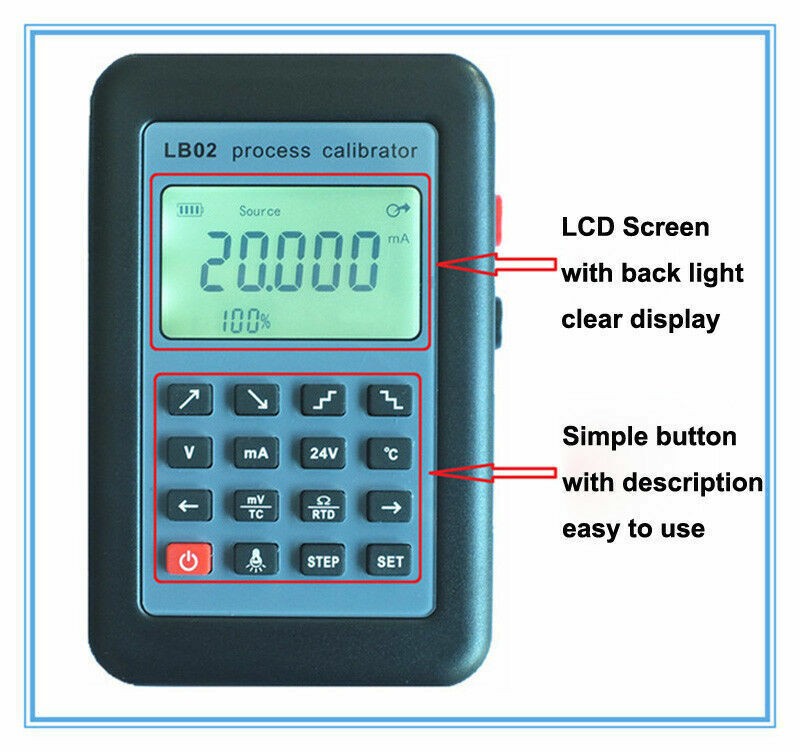

High resolution LCD display, have back light for different lighting conditions, large screen clear display.
Fast response, no delay in signal source simulation and signal testing or measurement.
With charging and status indicator to check the battery status easily.
Can be used as signal generator, multifunction process calibrator and digital multimeter.
Have description in V, mV, mA, RTD, TC, Step, and Ω keys, it enables user to operate it easily.
DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.
AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability
Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.
Package included:
1 x LB02 Calibrator
1x User Manual
