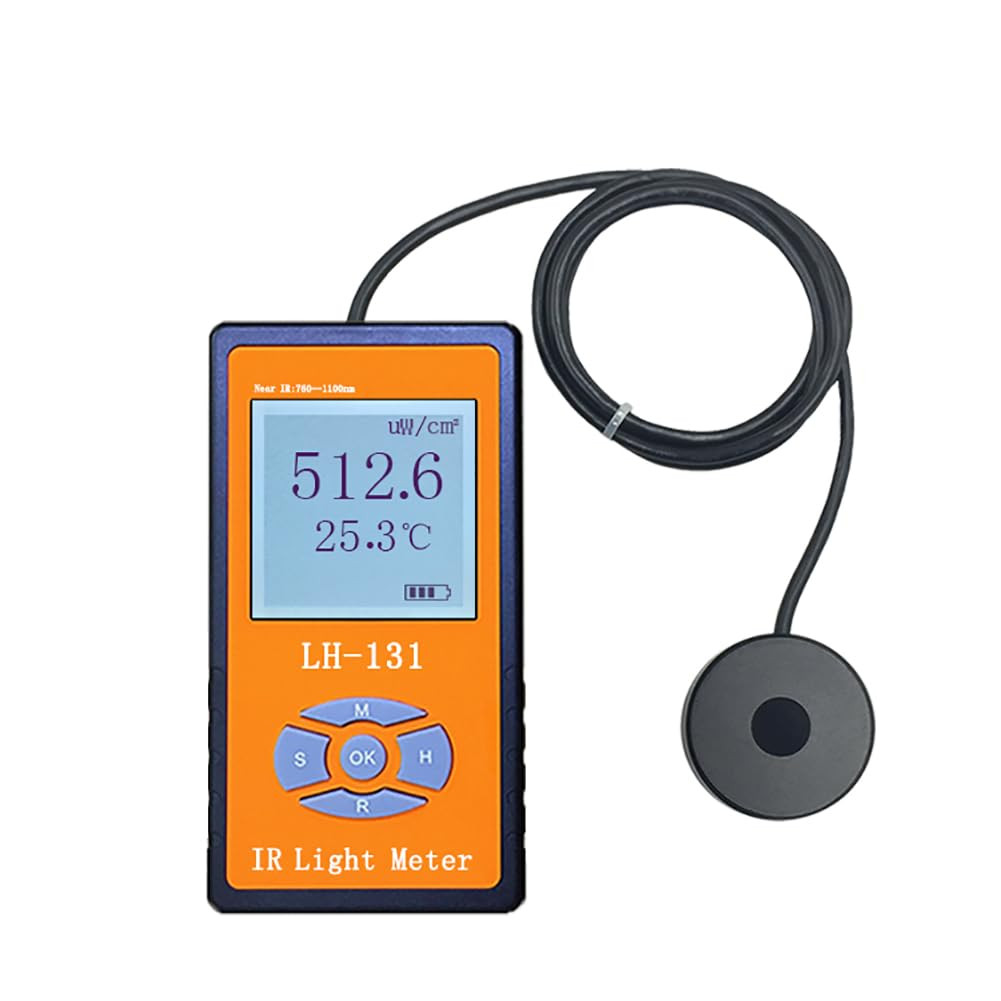

LH-131 IR Power Meter Infrared Irradiometer Infrared Light Irradiance Power Mete For Sale

• Sunlight, infrared LED, infrared remote control infrared radiation intensity measurement
• Measuring range: 1uW / cm²~3000W / m², Spectral response range: 760~1100nm, Accuracy: +-4%
• The maximum value can be measured;
• The transmittance and barrier ratio can be measured;
• With temperature test function;
• Can save 100 groups of test data.

Overview The spectral radiometer is used to measure the radiation power density of the light source, i.e. the radiation power per unit area w/m2 .The product adopts imported high-quality sensor and high-precision processor to ensure accurate and rapid measurement of radiation intensity. With the corresponding light source, it can also measure the transmittance and barrier rate of the material to light, and can also measure the ambient temperature.
Applications
Measurement and optical experiment of solar radiation intensity in each band
Measurement of transmittance and barrier of materials to light
Industry, agriculture, construction, environment, medical treatment, scientific research and other fields
Specifications
Response spectrum: 760-1100nm
Response center: 940nm
Measuring range: 1uW/cm2-3000W/ m2
Resolution: 1uW/cm2
Sampling frequency: 10 times/sec. Measurement error: ± 4%
Host size: 132x7 1x29mm
Window size: 48x48mm
Probe size: Medium 40mm H25mm
Light window diameter: 12mm
Net weight: 190g
Power supply: AAA battery*4(not Include)
Package List
1 x IR Light Meter
1 x LED Test Stand(Φ3, Φ5)
1 x Manual(English)
1 x Warranty Card
