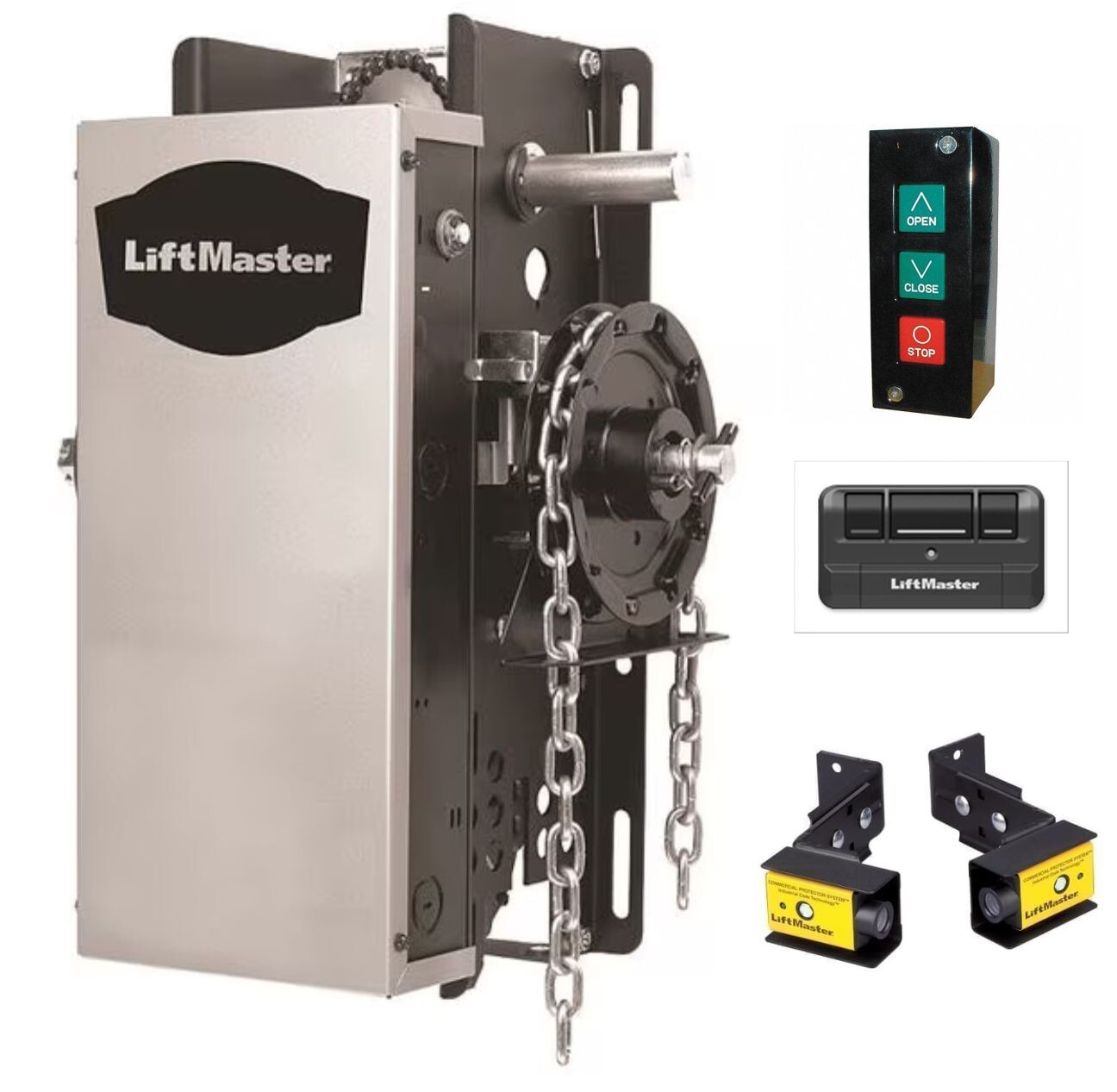

LiftMaster MH5011U Medium Duty Hoist OpenerChoose mounting sideRight or Left Side of Door (Looking From Inside of Building)Choose door typeSectional (Panels and Hinges) or Rolling Steel (Commercial Sheet Type / Roll Up Door)Choose to include 3 button remote3-Button Remote is Capable of OPEN/CLOSE/STOP Functions (813LMX)
Quick Overview
- 1/2 HP 115V Single Phase
- UL325 Compliant with built in 315 MHz receiver
- 3 button station, open/close/stop
- CPS-U Commercial Photo Cell System
- 1\" bore, 32 tooth sprocket for #41 chain
- Good up to 14\' High Doors
- UL-325 Compliant
- For openings up to 30\'W (indoor use only)
- Includes: emitter, receiver, floor/wall mounting brackets
- Compatible with logic 2, 3, 4 & 5
- 24VAC
The Model MH door operator is designed for use on high or vertical lift sectional doors or small rolling doors and grilles. Maximum recommended duty cycle: 12 cycles per hour.
Standard Features:
- UL325-2010 Monitored Entrapment Capability (provides primary monitored entrapment protection through monitored photo sensors: either CPS-U or CPS-UN4, or a 4-wire monitored edge using the CPS-EI interface)
- UL-Listed and UL-Labeled to insure compliance to local codes and approval at final inspection
- Solid-state Medium-Duty Logic circuit board
- Powerful 1/2 HP, 115V single-phase motor with instant reverse, capacitor start, and overload protection
- Easy emergency manual operation using a floor level disconnect and an electrically interlocked chain hoist mechanism
- 24V NEC Class 2
- Wiring is factory present to C2 mode
- First stage heavy-duty 4L V-belt; second and third stages #48 chain
- Heavy-duty oil-filled bushings
- Adjustable friction clutch helps protect against damage to the door and operator
- Heavy-duty solenoid-actuated brake
- 3-button station for open/close/stop functionality
- 315 MHz radio receiver is integral to the Medium-Duty Logic board
- NEMA 1 type electrical box
- 2-year warranty
MH5011UR or MH5011-R for right mount and MH5011UL or MH5011-L for left mount
Liftmaster MH5011U Commercial Medium-Duty Hoist Operator RH Mount
THIS OPERATOR IS FOR SECTIONAL DOORS ONLY, NOT ROLLING STEEL SHEET ROLL-UP DOORS.
- Right hand mount, mounts on right side of door when looking at it from the inside.
- 1/2 HP 115V Single Phase
- UL325 Compliant with built in 315 MHz receiver
- 3 button station, open/close/stop
- LiftMaster CPS-UN4 Commercial Protector System
- 1\" bore, 32 tooth sprocket for #41 chain
- Good up to 14\' High Doors
- UL-325 Compliant, Logic 4 & 5
- For openings up to 45\'W (indoor/outdoor use)
- Includes: emitter, receiver, floor/wall mounting brackets
- Watertight - NEMA4
- Pre molded for 1/2\" conduit
- 24VAC
Performance:
115 volt 1 Ɵ. Apply Open/Close/Stop functions with the standard three-push-button control station. Controls with one, two and three buttons are available. Receive notifications when routine maintenance is required on your Commercial Door Operator. Improve durability with the NEMA 1 type electrical box construction with a powdercoat finish. Mount on the left or right side of the door. No rails to hang, the operator simply mounts on the wall and attaches to the door shaft through chain and sprocket. (3900 can mount directly to shaft) Enable limit setting for ease of installation and adjustment to ensure accuracy even after a power failure. Automatically close the door with Timer-To-Close (programmable in 1-second or 15-second increments).
Safety And Security
- Compliant with all UL 325 requirements.
- Accept up to 20 remote controls and unlimited DIP switch remote control with our Security+® radio technology.
- Protect against door and operator damage due to obstacles with the Adjustable Friction Clutch.
- Signal the door to reverse or stop if closing time exceeds maximum door travel prevent damage to door and operator.
- Provide easy, emergency manual operation using a readily accessible disconnect.
- LiftMaster CPS-UN4 Commercial Protector System
