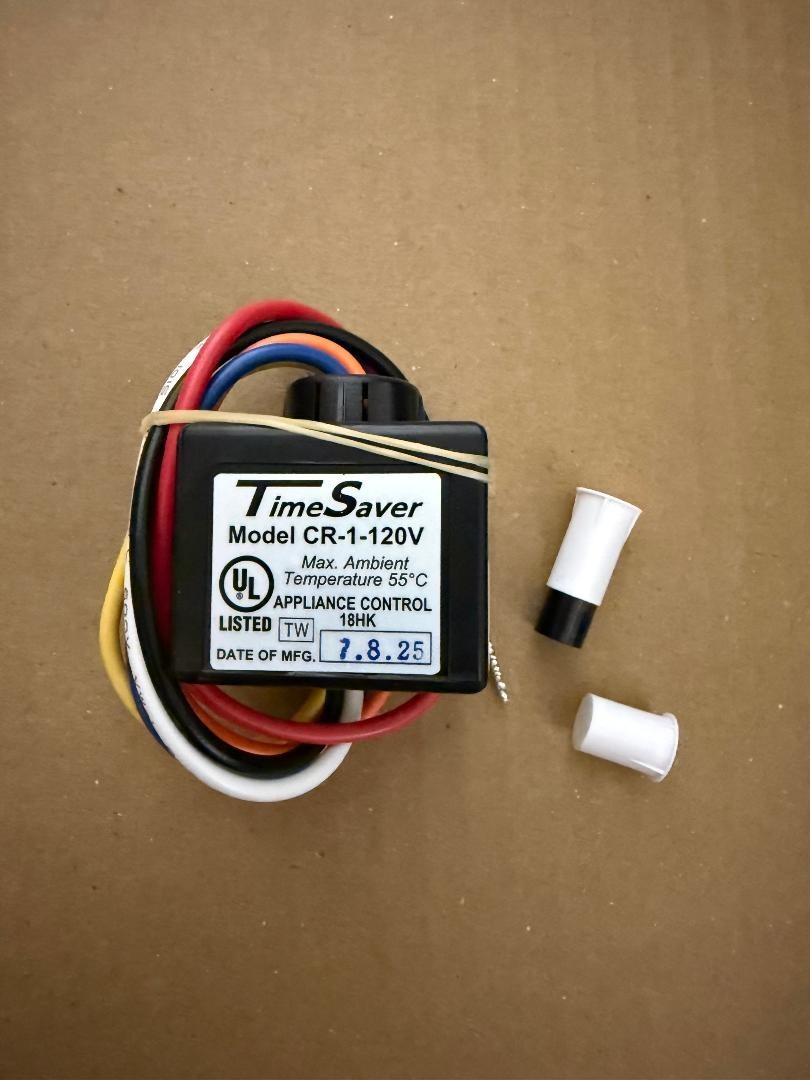

Better Switch Replacement LVS TimeSaver CR-1-120V Low Voltage Closet Relay 120VINCLUDES 2Normally Closed Recessed Window Door Contact Sensor Alarm Magnetic
Model CR-1-120V
Specification Grade
Patented
Electrical Specifications
120 volts AC 60 Hz.
1000W Ballast, 600W Tungsten
1/6 HP Motor Load
Always observe N.E.C. & local codes.
Mechanical Specifications
Low Voltage Side:
snaps into 1/2 KO
High Voltage Side:
H 1-3/8” W 1-7/8” L 1-3/8”
