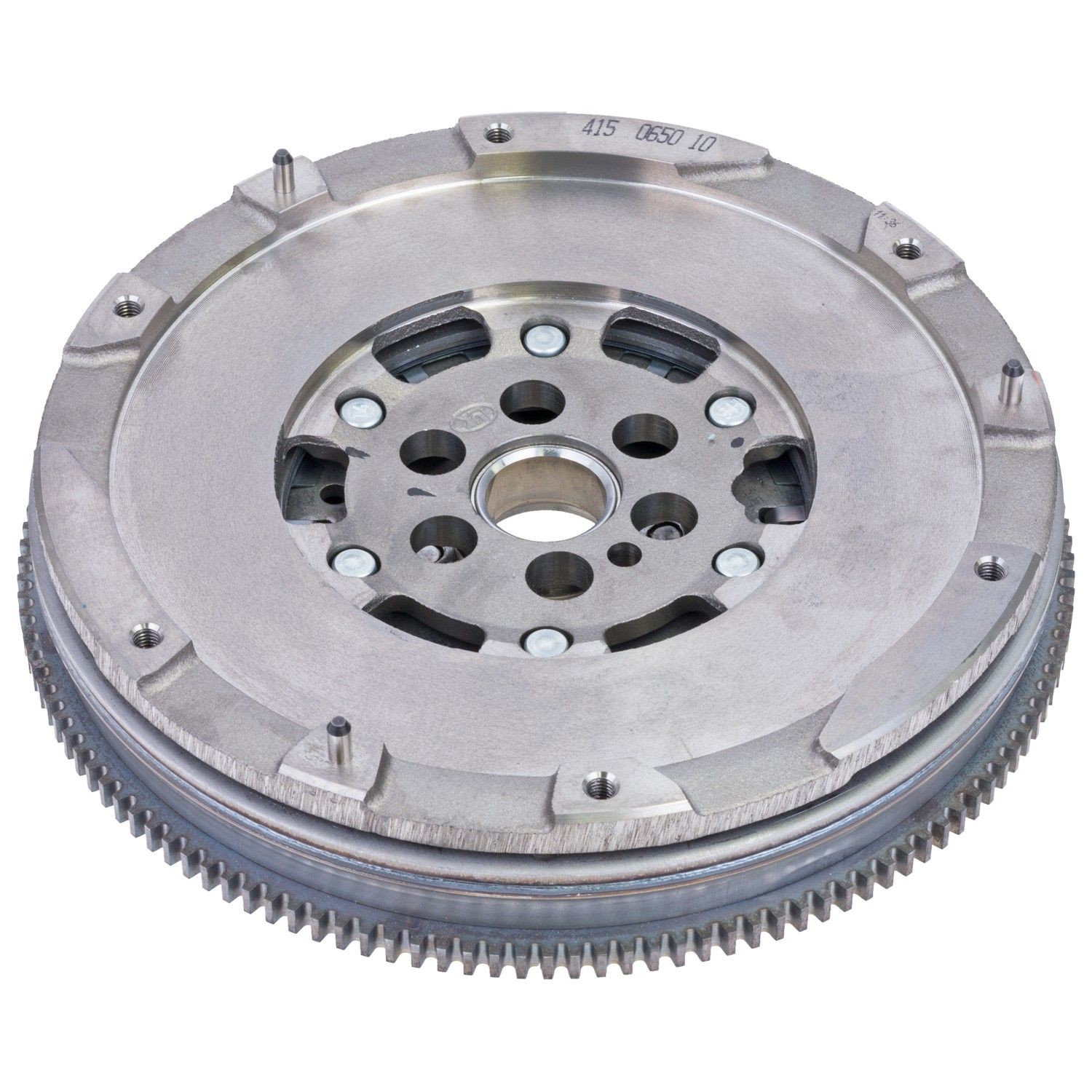

LuK DMF193 LuK DMF Manu For 12-19 Chevrolet Cruze Sonic
LuK DMF193 Clutch Flywheel
SPECIFICATIONS:
- Bolt Hole Pattern: 2
- Bolt hole PCD clutch pres.plte: 250 mm
- Bolt hole PCD clutch pres.plte: 9.843 inch
- Bolt hole PCD crankshaft: 2.598 inch
- Bolt hole PCD crankshaft: 66 mm
- Centering diameter / dowel hole: 9.843 inch
- Centering diameter / dowel hole: 250 mm
- Crank Hole Dia.: 9.6 mm
- Crank Hole Dia.: 0.378 inch
- Crank To Friction Surface: 1.654 inch
- Crank To Friction Surface: 42 mm
- Cup depth, secondary flywheel: -0.39 inch
- Cup depth, secondary flywheel: -9.9 mm
- Dowel hole diameter: 0.236 inch
- Dowel hole diameter: 6 mm
- Dowel Hole Pattern: 5
- Flywheel Friction Surface Inner diameter: 146 mm
- Flywheel Friction Surface Inner diameter: 5.748 inch
- Flywheel friction surface outer diameter: 227 mm
- Flywheel friction surface outer diameter: 8.937 inch
- Flywheel Thickness [mm]: 66.85 mm
- Flywheel Thickness [mm]: 2.632 inch
- I.D. for Pilot: 1.24 inch
- I.D. for Pilot: 31.5 mm
- Number of mounting bores: 2
- Number of teeth, starter ring gear: 135
- Overall Casting O.D.: 11.366 inch
- Overall Casting O.D.: 288.7 mm
- Ring Gear Major Dia.: 285.755 mm
- Ring Gear Major Dia.: 11.25 inch
- Ring Gear Mounting O.D.: 10.514 inch
- Ring Gear Mounting O.D.: 267.05 mm
- Ring Gear Number: L-08180-0G71-01
- Ring Gear Thickness: 9 mm
- Ring Gear Thickness: 0.354 inch
- Ring Gear To Friction Surface: 1.614 inch
- Ring Gear To Friction Surface: 41 mm
- Torque Capacity DMFW: 11.31 inch
- Torque Capacity DMFW: 287.28 mm
This item may interchange to the following part numbers from other brands. This is provided for reference only and does not guarantee that the part your are buying is identical to the part numbers from the brands listed below. To confirm that this part fits your vehicle, enter your vehicles Year, Make, Model, Trim and Engine in the Compatibility Table.
- AISIN FDE-OP06
- Buick 55599020
- Opel 55599020
- Opel 6 16 303
- Opel 55587527
- Opel 55583045
- Opel 6 16 338
- Opel 6 16 352
- Sachs 2294 501 215
- Valeo 836735
- Vauxhall 55 583 045
- Vauxhall 55587527
- Vauxhall 6 16 338
- Vauxhall 55599020
- Vauxhall 6 16 352
LuK: Don't gamble - stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous - from increased wear of engine mounts through gearbox failure to damaged what vehicles: 2012-2015 Chevrolet Cruze, 2012-2019 Chevrolet Sonic
