MICRO DNC 2C/MICRO DNC 2D (called DNC 2) is a device used totransmit or receive G-code programs with CNC machines - that is the basicfunction of the DNC 2 device.

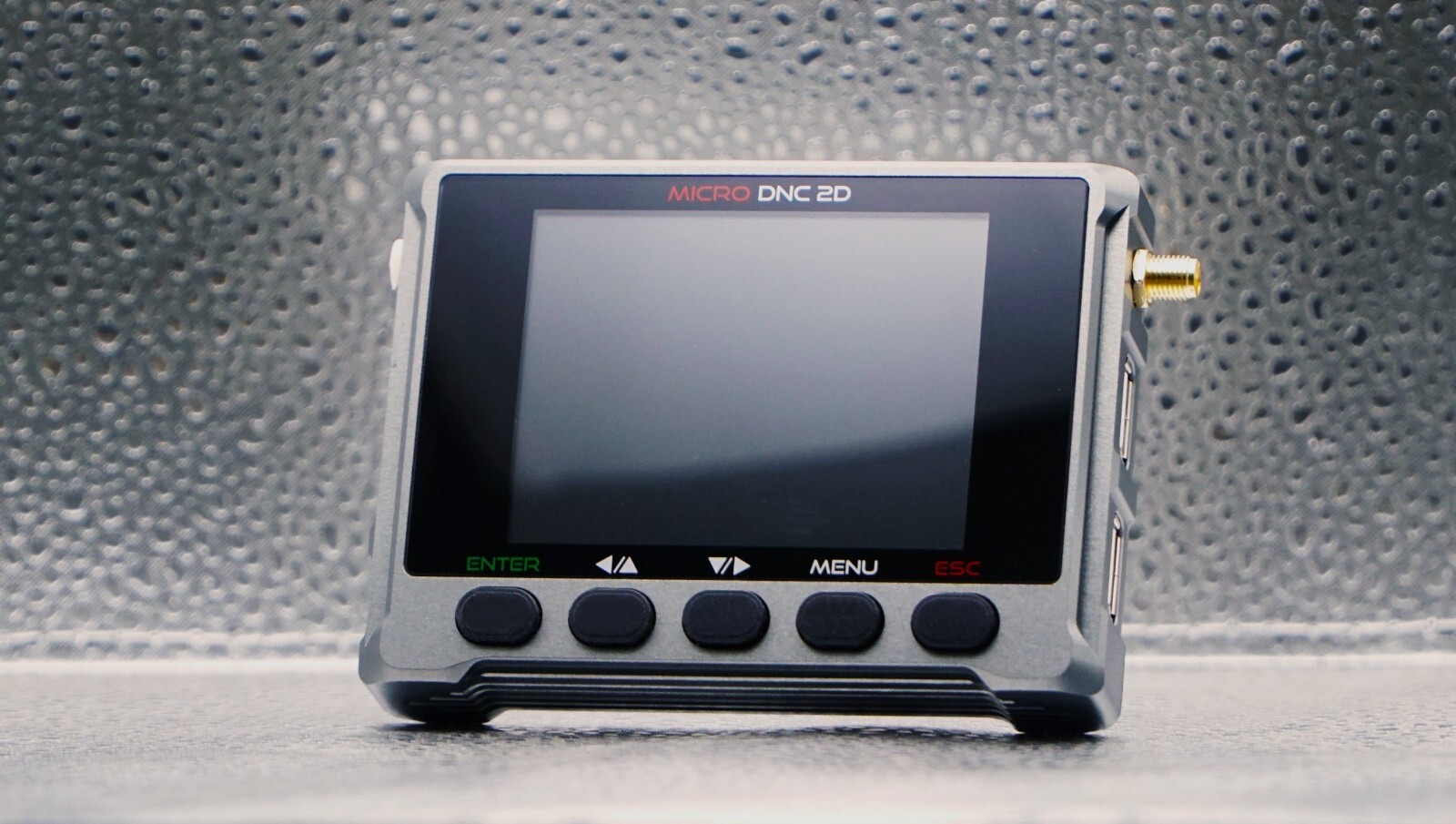

The MICRO DNC 2D is a prototype of the MICRO DNC 2C with aredesigned aluminum case and flexible plastic keyboard. The software insidestill uses the firmware of MICRO DNC 2C. So basically MICRO DNC 2D and MICRODNC 2C are the same
DNC 2 is designed to optimize and simplify programtransmission to CNC machines (compact, does not take up working space, veryhigh stability, good anti-interference), replacing computers or some otherdevices. Complex old equipment to transmit G-code program to cnc machine. Youcan transfer programs from the DNC 2 memory (4GB memory) or transfer programsfrom a USB stick (up to 64GB memory). can transfer the program into the CNCmachine memory, or drip large programs to the CNC machine through the CNCmachine's DNC function.
You can receive data from the CNC machine to the DNC 2device (program storage, tool offset parameters, CNC machine parameters...)
DNC 2 can connect to a computer via wireless LAN (wifinetwork). There will be software installed on the computer
From the software on your computer, you can copy the programfrom your computer to DNC 2 or vice versa from DNC 2 to your computer.notification can be sent to the machine operator (notification on the DNC 2screen). Execute the program transmission command for DNC 2 from the softwareon the computer, you can monitor the status of the DNC 2 device (transmittingor stopping, displaying % of the program being transmitted...)
ATTENTION. Computersand DNC 2 connected to the same WIFI network can connect to each other. Ifconnecting to different wifi networks, it will not work
A very special function on DNC 2 is the ability to simulatetoolpaths, you can simulate programs in memory or USB cards.
DNC 2 device has 4 selected languages for display (English,Japanese, Italian, Vietnamese)
DNC 2 has data formats (ASCII, EIA, ISO)
There are instructions for using the basic functions on theDNC 2 screen (HELP/INFOR page)
In addition, you can create or edit programs on the DNCdevice screen. You can use the virtual keys on the DNC 2 or you can use anexternal USB keyboard. (the device will recognize the keyboard and you willcompose or edit the program very simply)
DNC 2 device has two USB ports (you can only use 1 USB portat a time)
The device has 1 RS232 port to connect to CNC machines
There is 1 power port to supply 12V DC power from outside
Baud rate from 1200-115200
data bits (7-8)
stop bits (1-2)
parity setting - (even-odd-none)
There is an automatic transmission mode when the programends (used for processing parts with many repetitions). “auto resend”
The device shell is made from aluminum (available in twocolors: RED or BLACK, if there is no color request, it will be shippedrandomly. If you require red or black, please message the store beforeshipping), the front The back has super strong magnets that can be used toattach the DNC device anywhere on the CNC machine body
Package includes DNC 2, 2 meter long RS232 DP9-DP25 cable,12V AC-DC power adapter
Customer service throughoutthe process of customer use. We can assist in setting up DNCdevice and CNCworking together
Productsare warranted for 1 year
link to download the user manual of the MICRO DNC 2 device
link 1-ONEdriver :MANUAL DNCdevice
link 2- Mediafire:MANUAL DNCdevice
