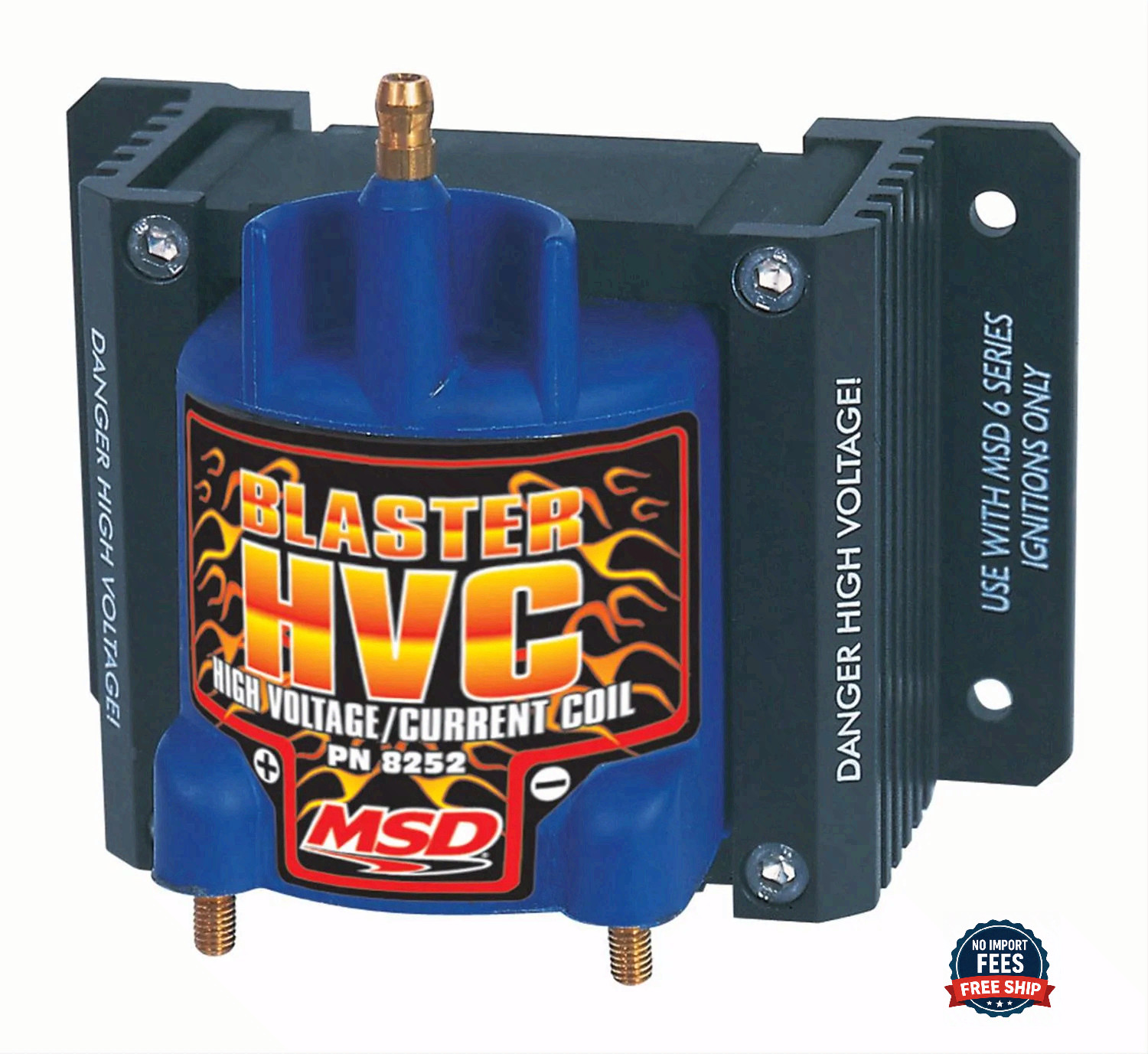

MSD 8252 Blaster HVC Ignition Coil For MSD 6-Series Ignition
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
To accomplish this combination of high voltage and current MSD uses an E-core winding design. This is a very efficient design where less loss occurs during the transfer of electricity due to the closed core of the coil. Another benefit is that the coils run extremely cool, even at high racing rpm, thanks to the efficient design and huge laminations.Features:
Designed for high rpm, long duration applicationsWorks with electronic ignitions and MSD Ignition Controls (ballast resistor required for points systems)100:1 turns ratio and lower primary resistance produce high voltage outputWindings are encased in blue epoxy and secured with extruded bracketsSpark plug style terminal and threaded brass primary studsSupplied with rubber shock mountsCARB E.O. Approved
Specs:Emission Code: 1Inductance: 7 mHMaximum Voltage: 42,000 VoltsPeak Current: 300 mAPrimary Resistance: .02 OHMsProduct Type: Ignition CoilsSecondary Resistance: 1.38K OHMsSpark duration: 200 uSPart Number: 8252
